Main Factors Affecting Electrostatic Powder Coating: A Complete Guide to Quality and Process Stability

In electrostatic powder coating[^1], achieving consistent surface quality and long-term durability depends on far more than just the spray gun. From my experience working with manufacturing facilities across cabinet production, outdoor furniture, and aluminum profiles, I've seen that most coating failures trace back not to the spraying process itself, but to overlooked factors in earlier and later stages. The real challenge isn't getting powder on a workpiece—it's getting it there uniformly, stably, and durably across every single piece.

Electrostatic powder coating quality depends on multiple interdependent factors across pre-treatment, spray parameters, powder properties, curing conditions, and equipment stability. The most common issues—poor adhesion, uneven coverage, surface defects like pinholes and orange peel, and inadequate corrosion resistance—typically stem from incomplete surface preparation, improper grounding, incorrect spray gun settings, contaminated compressed air, or unstable furnace temperature. Systematic control of these factors through proper surface treatment, stable electrostatic conditions, matched powder chemistry, precise thermal profiles, and clean air supply is essential to achieve consistent coating quality, long-term durability, and production efficiency.

This guide walks you through the critical factors that actually determine whether your powder coating line will deliver flawless results or recurring problems. I'm covering the factors we prioritize in real production settings—not just theory, but what we've learned from commissioning dozens of lines and troubleshooting issues on factory floors.

What Is Electrostatic Powder Coating and Why Do These Factors Matter?

Electrostatic powder coating works through a simple principle: charged powder particles are attracted to a grounded workpiece, stick to its surface, then fuse and harden in a furnace. The process itself is elegant. But the quality and consistency of that final coating depends on how well you control every stage leading up to and following the spray booth.

Unlike liquid paint coating, powder coating offers high transfer efficiency, excellent durability, and environmental benefits. But it's also less forgiving of mistakes. If your pre-treatment is sloppy, if your air is wet, if your oven temperature drifts by 10°C, or if your workpiece isn't properly grounded, the defects will show up clearly on the finished part. You can't hide poor powder coating behind a thick final layer.

That's why understanding the factors that affect coating quality isn't optional—it's the foundation of consistent production.

Pre-Treatment: The Foundation for Coating Quality and Adhesion

I consistently tell customers: pre-treatment failures are the #1 cause of coating defects we see in the field. Yet it's also the step most factories rush through or outsource without enough oversight.

How surface preparation affects adhesion and defect prevention

Before a single powder particle lands on your workpiece, the surface must be completely clean, free of oxides, and chemically receptive. If it isn't, adhesion fails—sometimes immediately, sometimes after months of environmental exposure.

Pre-treatment typically involves several stages: degreasing to remove oils and cutting fluids, rinsing to eliminate degreaser residue, acid or alkaline treatment to remove rust and oxides, followed by conversion coating[^2] (phosphating for steel, or chromium-free/titanium-based conversion for aluminum). Each stage serves a specific purpose.

Degreasing removes the oily film that blocks electrostatic adhesion and chemically bonds between the powder and substrate. Incomplete degreasing leaves oil-soluble contaminants that accelerate corrosion paths under the coating.

Rust removal and oxide stripping expose clean base metal. If oxidation remains, the coating sits on a layer that will eventually separate.

Conversion coating creates a micro-textured, chemically stable layer that the powder coating mechanically locks into and chemically bonds with. Without it, adhesion values drop sharply.

From our experience, customers often see poor adhesion results when they've skipped or shortened the conversion coating stage, or when conversion chemistry has degraded due to tank life. The adhesion test may pass initially—but corrosion resistance and durability suffer months later.

Common pre-treatment failures and their direct impact on final coating

Incomplete degreasing — Any residual oil, fingerprints, or cutting fluid creates a barrier. When powder tries to adhere, it sits on top of a slippery layer. Result: poor wet adhesion, edge adhesion failures, and eventual peeling under thermal or mechanical stress.

Insufficient rinsing — Degreaser carryover in rinse water leaves a film. Spray rinse nozzles often develop deadspots where water doesn't reach evenly. Result: spotty adhesion, pinholes, and adhesion loss in affected areas.

Inadequate or expired conversion coating — Conversion tanks lose chemistry over time, especially if water hardness isn't managed. Low conversion film weight (typically 400–800 mg/m² for steel) reduces adhesion and corrosion resistance. Result: adhesion issues in salt spray testing, premature rust breakthrough.

Water left on the surface before spraying — Even small amounts of residual moisture create nucleation sites for porosity and reduce powder's ability to adhere. The workpiece should be bone dry before entering the spray booth. Result: pinholes, voids, reduced adhesion.

From our commissioning work, we've found that pre-treatment is often the first place to investigate when adhesion complaints arise. Once we've confirmed pre-treatment is solid, most adhesion problems disappear even if spray parameters stay the same.

Pre-Treatment Stage	Primary Function	Common Failure Mode	Impact on Coating
Degreasing	Remove oils and cutting fluids	Incomplete, diluted, or cold tank	Poor wetting, adhesion loss
Rinsing	Remove degreaser residue	Insufficient spray coverage, stagnant zones	Film residue, pinholes, adhesion spots
Rust/Oxide Removal	Expose clean metal	Inadequate acid contact time	Oxide layer remains, adhesion fails
Conversion Coating	Create chemically receptive layer	Tank chemistry aged, film too thin	Low adhesion, poor corrosion resistance
Drying	Remove water	Inadequate drying time or air temperature	Surface moisture causes porosity

Workpiece Grounding and Electrical Conditions

I've walked into more than a few facilities where operators were mystified by uneven powder coverage or high scrap rates, only to find that the grounding system was corroded or loose.

Why proper grounding is critical for uniform powder deposition

Grounding is the electrical pathway that allows the workpiece to receive and hold the electrostatic charge needed to attract powder. Without reliable ground continuity, powder transfer efficiency plummets and adhesion becomes erratic.

When a workpiece is properly grounded, the electrostatic field between the spray gun and the grounded part remains strong and consistent. Powder particles, charged by the gun, travel predictably along field lines and deposit evenly.

When grounding is poor—a loose contact, oxide layer on the contact point, or inadequate conductivity through jigs and hangers—the electrical field weakens or becomes unstable. The powder loses its electrostatic attraction, bounces back (Coulomb repulsion), and leaves gaps in coverage. Sometimes the effect is visible as an obvious gap; other times it's a gradual thinning or lack of adhesion in specific zones.

Grounding must be continuous from the workpiece through the hanger, jig, or fixture, through the conveyor system (if suspended) or contact rail, and finally to electrical ground. Any break in this chain compromises transfer efficiency and uniformity.

How to diagnose and fix grounding problems that cause uneven coating

Visual signs of grounding issues:

• Uneven coating thickness, with thin zones or bare spots
• Areas where powder "flies off" without adhering
• Edge overspray or accumulation on one side of the workpiece
• High scrap or rework rates concentrated on specific positions

Diagnostic steps:

First, measure electrical resistance between the workpiece contact point and ground. On a properly grounded system, resistance should be less than 1 megohm (many facilities aim for <100 kilohms). Use a calibrated megohmmeter[^3] at the spray station while the workpiece is in position.

Second, visually inspect contact points. Look for corrosion, paint, rust, or dust on the hanging point where the workpiece makes electrical contact. Clean contacts with a fine wire brush or sandpaper.

Third, check the jig or hanger itself. Some custom jigs are poorly designed and use non-conductive or high-resistance connections. We've seen cases where a jig had paint on the contact surface—paint is an insulator. Simple cleaning or redesign of the jig contact point solved weeks of "mysterious" quality issues.

Fourth, verify conveyor rails and hanger connections are electrically continuous. Gaps, corrosion, or loose bolts in the suspension system break ground continuity.

Corrections:

• Clean all contact points regularly—daily for high-production facilities.
• Use conductive coatings or materials on jigs that may corrode or oxidize.
• Install redundant grounding points on large or complex workpieces to ensure multiple paths.
• Add ground straps or bonding cables if the workpiece shape makes single-point grounding unreliable.
• Test resistance on a weekly basis; trending data often reveals early degradation before defects appear.

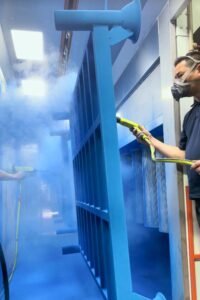

Spray Gun Parameters and Their Individual Effects

The spray gun is the final delivery point, and its parameters are the most immediately adjustable. But each parameter controls a different aspect of the coating, and misadjusting one often cascades into multiple defects.

Voltage, current, distance, and angle: What each parameter controls

Voltage determines how strongly the electrostatic field attracts powder to the workpiece. Higher voltage = stronger attraction, but too much causes overspray and edge accumulation.

• Typical range: 60–90 kV
• Too low: Poor transfer efficiency, powder bounces back, incomplete coverage
• Too high: Excessive overspray, heavy edge buildup, reverse ionization (powder repelled in some zones)

Current reflects the charge density of the powder stream. It's related to voltage but independent—you can have high voltage with low current (sparse powder stream) or high voltage with high current (dense stream).

• Typical range: 10–20 μA
• Too low: Insufficient charge on each particle, poor adhesion
• Too high: Risk of air ionization (sparking), excessive overspray, powder migration

Distance (gun to workpiece) affects film thickness, uniformity, and edge behavior.

• Typical range: 150–300 mm
• Too close (<150 mm): Heavy edge accumulation, localized thickness, potential for hitting and cracking the powder film
• Too far (>300 mm): Transfer efficiency drops, powder disperses, incomplete coverage, film too thin

Angle determines how well the powder reaches internal corners, edges, and recesses. A perpendicular spray is efficient for flat surfaces but misses internal angles.

• Optimal: Typically 90° for flat surfaces, but angled 30–45° for complex geometry to reach internal cavities

How to adjust parameters to solve specific coating defects

Defect	Likely Cause	First Adjustment	Secondary Check
Uneven coverage / thin zones	Distance too far, low voltage, or poor geometry angle	Reduce distance or increase voltage	Check workpiece positioning and rotation
Heavy edge accumulation	Distance too close, high current, or edge overspray	Increase distance or reduce voltage	Reposition gun angle away from edges
Pinholes / surface voids	Often pre-treatment or air quality, not gun	Verify pre-treatment and air dryness	If confirmed, check spray distance (thin film dries too fast)
Poor adhesion (whole workpiece)	Often pre-treatment or grounding	Check ground continuity and voltage	Verify pre-treatment completion
Reverse ionization (repulsion in zones)	Voltage too high or air ionization	Reduce voltage by 5–10 kV	Check air humidity

When tuning parameters, adjust one variable at a time and observe the effect. In our commissioning work, we typically start with distance (150–200 mm for most parts), then voltage (70–80 kV), then current (12–15 μA), then angle. Once the foundational parameters are set, fine-tune based on actual coating results on test panels.

Compressed Air Quality and System Design

Compressed air is often treated as an afterthought—but it's as critical as the powder itself. Air carries the powder from the tank to the gun, atomizes it, and keeps the spray station clean. If that air is wet or oily, none of those functions work properly.

Why air moisture, oil, and contamination cause coating failures

Moisture in compressed air creates several problems. First, it's carried into the powder tank where it's absorbed by the powder, causing the particles to clump and losing their ability to charge properly. Second, moisture at the spray gun nozzle causes powder caking and blockages. Third, if moisture reaches the workpiece surface just before spraying, it creates nucleation sites for porosity and pinholes.

Oil carryover from the air compressor coats the gun nozzle, powder tank walls, and can contaminate the workpiece surface. Oily surfaces prevent proper powder adhesion and electrostatic charging.

Particulate contamination (dust, compressor debris) clogs powder pathways, destabilizes flow, and creates weak points in the coating.

From our field experience, the majority of spray gun stoppages and "mysterious" quality drops—adhesion loss, sudden pinhole outbreaks, erratic powder flow—trace back to air quality[^4] issues rather than the gun or powder itself.

Proper air treatment systems for stable production

An industrial compressed air system feeding a powder spray booth should include:

1. Air drying — Remove moisture to a dew point of -20°C or lower. Refrigerated dryers are standard; desiccant dryers are better for critical applications.

2. Oil removal — Coalescing filters (10 microns or better) remove oil mist and carryover. These must be replaced regularly per the compressor manufacturer's schedule.

3. Particle filtration — 5-micron or finer filters remove compressor wear debris and dust.

4. Pressure regulation — Maintain consistent air pressure (typically 4–6 kg/cm²). Pressure fluctuations cause powder flow variations and inconsistent spray patterns.

5. Air storage — A suitably sized air tank acts as a buffer and allows moisture and oil droplets to settle before use.

In our standard configurations, we size the air treatment system to handle 10–15% more volume than peak demand. This ensures the system never becomes a bottleneck and provides a margin for wear over time.

We recommend weekly checks of the desiccant dryer indicator and monthly replacement of coalescent filter cartridges in high-demand facilities. Neglecting these maintenance steps is the fastest way to degrade coating quality without changing any other parameter.

Powder Coating Material Properties and Storage

Powder isn't just powder. Each batch has specific chemistry, flow characteristics, and moisture sensitivity. How you store and handle it directly affects whether those properties remain stable or degrade.

How powder moisture, batch mixing, and formulation affect final results

Powder moisture content is critical. Powder should be stored at <0.3% moisture by weight. Moisture-absorbed powder loses its electrostatic charge potential, becomes lumpy and difficult to flow, and can create surface defects like craters or poor wetting.

Batch consistency matters more than many realize. Mixing powder from different production batches, different suppliers, or different ages can introduce subtle chemistry variations. Colors may shift, gloss may vary, and even adhesion can become inconsistent. We've seen customers experience intermittent adhesion issues that disappeared once they stopped mixing batches.

Formulation compatibility — Some customer-supplied powders are optimized for different spray methods (electrostatic vs. HVLP vs. flame) or different curing temperatures[^5]. Using a powder outside its designed parameters often results in flow, adhesion, or cure issues.

Shelf life and degradation — Powder formulations can chemically degrade over time, especially if exposed to heat or humidity. Most quality powders have a 1–2 year shelf life from manufacture. Beyond that, adhesion and cure properties may shift.

Best practices for powder handling and shelf life management

• Store at 15–25°C and <40% relative humidity. Avoid direct sunlight and temperature fluctuations. A climate-controlled storage room is ideal.
• Use FIFO (First In, First Out) inventory to ensure older stock is used before newer batches.
• Do not mix batches unless explicitly approved by the powder supplier.
• Keep powder containers sealed until ready to use. Once opened, use within a reasonable timeframe (typically 3–6 months depending on storage conditions).
• Replace powder supply tank at least once per production run or at intervals specified by your equipment maker. Residual powder from previous jobs can contaminate new powder.
• Monitor for clumping or discoloration. Either sign suggests degradation or moisture pickup; replace the powder.

From our experience, one of the highest-ROI maintenance practices is implementing strict powder inventory and storage discipline. We've seen factories eliminate adhesion complaints by simply switching to a dedicated powder storage area with climate control and FIFO rotation.

Curing Process and Temperature Control

Fixation of the powder coating happens in the curing oven. This stage determines final adhesion strength, hardness, corrosion resistance, and appearance. Yet it's often managed with minimal oversight—a thermostat set once and then ignored.

Why oven temperature uniformity matters more than target temperature

The critical factor isn't whether the oven thermometer reads 200°C; it's whether every workpiece actually reaches and maintains that temperature for the correct duration. Temperature uniformity across the oven chamber is the real driver of consistent cure.

If one corner of the oven runs 10°C cooler than the setpoint, workpieces in that zone will undercure. If another area overheats, you risk over-curing or color shift. Uneven temperature distribution is one of the most common—and most overlooked—causes of color variance, adhesion scatter, and hardness inconsistency.

Thermal profile (temperature vs. time) is equally important. The powder must reach a specific peak temperature and maintain it for a minimum duration to allow the resin to fully flow, consolidate, and cross-link. Ramping up too fast can leave voids; ramping too slowly wastes time and energy.

How under-curing, over-curing, and heating curves impact coating performance

Under-curing:

• Soft, tacky coating that scratches easily
• Poor solvent resistance
• Low cross-link density, leading to poor adhesion and corrosion resistance over time
• Adhesion test failures

Over-curing:

• Color shift (yellowing or darkening, depending on powder chemistry)
• Loss of gloss (matte or flat appearance)
• Brittle coating prone to chipping under impact
• Reduced flexibility (coating may crack if the part flexes)

Improper thermal ramp:

• Rapid heating can trap moisture and volatiles under the powder surface, creating pinholes or bubbles
• Slow, inconsistent heating can lead to incomplete flow and orange-peel surface texture
• Cooling too rapidly can create internal stress

In practice, we design curing profiles based on the specific powder chemistry and workpiece mass. A 1 mm thick aluminum part cures differently than a 10 mm steel box. We use multi-zone ovens with separate temperature controls to ensure uniformity and typically monitor actual workpiece temperature (not just air temperature) via thermocouple[^6] or thermal imaging.

We recommend weekly oven temperature mapping—measuring temperature at multiple points inside the chamber while it's in steady state—to identify cold or hot zones. Anything more than ±5°C deviation should trigger investigation of heating elements, air circulation fans, or insulation integrity.

Production Line Design: Conveyor Speed, Workpiece Positioning, and Powder Recovery

The line isn't just a transport system; it's an integrated process controller. Conveyor speed, workpiece orientation, spacing, and powder recovery all directly affect the final coating.

How transport stability and workpiece arrangement affect film thickness uniformity

Conveyor speed determines how long the workpiece spends in the spray zone and how much powder is deposited. If the line is jerky or variable, some parts spend more time under the spray than others, leading to thickness variation and scrap.

Workpiece spacing affects air circulation and powder availability. Crowded parts shield each other; gaps allow air to circulate and powder to reach surfaces. We typically recommend spacing that allows at least one part-width of clearance between workpieces.

Orientation and rotation — Some parts need to be rotated or flipped during spraying to ensure all surfaces receive adequate coverage. Internal cavities, back sides, and recessed areas are often missed if the workpiece doesn't rotate or reorient. Modern lines often use rotate-and-index systems to address this.

Jig design — The hanging jig or fixture affects how the workpiece is positioned relative to the spray guns. A poorly designed jig may shield critical surfaces or create dead zones. We've seen significant improvements from simply optimizing jig geometry.

The role of powder recovery systems in quality consistency and production efficiency

Powder that doesn't adhere to the workpiece must be captured and either recycled or safely disposed. The recovery system serves multiple purposes:

First, it captures unused powder for potential reuse, reducing material waste and cost. Second, it maintains air quality in the spray booth and facilities beyond, meeting environmental standards. Third, it prevents powder accumulation in the ductwork or on surfaces where it could become a fire hazard or operational problem.

Single-stage cyclone recovery — Separates coarse powder via centrifugal force. Simple but less efficient; recovery rates typically 85–95%.

Multi-stage cyclone + secondary filtration — Adds fine powder capture via filter cartridges. Recovery rates typically >95%. More effective but requires filter maintenance.

Considerations for reuse — Recovered powder can be re-sprayed, but typically only a percentage (often 50–70% of recovered material) is usable. The remainder may be contaminated, degraded, or from a different color batch. We recommend a mixing policy where recovered powder is blended with fresh material at ratios determined by your supplier—typically 20–30% recovered, 70–80% fresh.

From our field experience, customers who implement tight powder recovery discipline report both improved quality consistency (less contamination from overspray) and 15–25% material cost savings. The recovery system is an investment that pays for itself.

Environmental Conditions and Common Coating Defects

The spray booth isn't isolated from the factory floor. Temperature, humidity, and general cleanliness directly influence coating outcomes.

Temperature, humidity, and cleanroom standards that influence spray quality

Temperature: Powder electrostatics and flow are temperature-sensitive. Spray booths should maintain 15–25°C. Below 15°C, powder becomes less conductive and flows poorly. Above 25°C, powder absorbs atmospheric moisture and loses charge. Fluctuations cause inconsistent results.

Humidity: This is the major factor most facilities underestimate. Powder should encounter air at <40% relative humidity. Above that, the powder absorbs moisture, particles clump, electrostatic charge diminishes, and surface adhesion worsens. In humid climates or seasons, dehumidification of the spray booth is essential.

Cleanroom standards: While powder coating doesn't require true Class 100 cleanrooms, the booth should be designed to minimize dust, lint, and particulate contamination. Dust on the workpiece before spraying creates adhesion weak points. Dust in the air during spraying can create inclusion defects. Basic measures include sealed walls, positive air pressure, and dedicated entry procedures.

Diagnosing root causes: Pinholes, orange peel, poor adhesion, and missed spray areas

Defect	Appearance	Primary Causes	Quick Diagnostic
Pinholes	Tiny holes in coating, like acne	Pre-treatment moisture; compressed air moisture; workpiece outgassing	Check pre-treatment drying; verify air dryness (measure dew point)
Orange peel	Bumpy, textured like orange skin	Thick film; slow powder flow; low booth temperature	Reduce spray distance or voltage; verify booth temp >20°C
Poor adhesion	Coating peels or lifts easily	Pre-treatment incomplete; grounding poor; undercure	Check ground continuity; verify pre-treatment chemistry; check oven temp profile
Missed areas / thin zones	Bare metal or very thin coating visible	Spray angle misses area; workpiece not rotated; spray guns clogged	Check gun positioning and angle; verify workpiece rotation; clean gun nozzle
Color variance	One part lighter or darker than another	Different oven temperatures; different spray times; different powder batches	Map oven temperature; standardize spray sequence; use consistent powder batch
Edge overspray	Heavy accumulation on edges, thin in center	Spray distance too close; voltage too high; gun angle poor	Increase distance; reduce voltage; angle gun away from edges

In practice, diagnosis follows a logical sequence: verify pre-treatment, check grounding, confirm air quality, measure oven temperature, then adjust spray parameters. Most defects resolve once these foundational factors are stable.

Key Factors at a Glance: Quick Reference Table

Factor Category	Key Variables	Impact	Indicator of Problem
Pre-Treatment	Cleanliness, conversion coating, drying	Adhesion, corrosion resistance	Adhesion test failure; peeling after salt spray[^7]
Grounding	Contact resistance, jig design	Transfer efficiency, uniformity	Thin zones, bare spots, flying powder
Spray Parameters	Voltage (60–90 kV), current (10–20 μA), distance (150–300 mm), angle	Film thickness, uniformity, edge behavior	Uneven coating, overspray, poor adhesion
Air Quality	Moisture, oil, particle contamination	Powder flow, coating defects	Pinholes, powder clumping, gun blockages
Powder Storage	Moisture (<0.3%), temperature (15–25°C), humidity (<40%)	Chargeability, flow, adhesion	Clumpy powder, variable results, adhesion scatter
Curing	Temperature uniformity (±5°C), time, ramp rate	Hardness, gloss, adhesion	Soft coating, color shift, adhesion loss, undercure
Line Design	Speed stability, workpiece spacing, jig geometry	Coating consistency	Thickness variation, missed areas, scrap
Environment	Booth temperature, humidity, cleanliness	Powder charging, surface adhesion	Moisture absorption, dust inclusion, adhesion failure

Moving Forward: Practical Implementation

Understanding these factors is one step; systematizing control of them is the next. We recommend a tiered approach:

Immediate priorities (Week 1–2):

• Verify pre-treatment system is functioning and chemistry is current
• Check ground continuity and clean all contact points
• Measure compressed air dew point and pressure stability
• Map oven temperature at multiple points

Short-term improvements (Month 1–2):

• Implement weekly oven temperature mapping
• Establish powder storage discipline (FIFO, sealed containers, climate control)
• Calibrate spray gun parameters on a reference part and document settings
• Install moisture monitor and pressure gauge on the air system

Ongoing management:

• Monitor and trend quality data (adhesion, uniformity, defect rates)
• Rotate maintenance activities (dryer cartridge replacement, filter changes)
• Conduct monthly parameter audits to catch drift early
• Train operators on the interdependencies between factors, so they understand why each step matters

Conclusion

Electrostatic powder coating quality isn't determined by any single factor—it's the result of systematic control across the entire process chain. From my work commissioning coating lines across multiple industries and countries, I've found that the factories achieving consistently low scrap rates and strong customer satisfaction share one trait: they treat pre-treatment, grounding, air quality, and curing with the same rigor they give to spray gun settings.

If your current line is experiencing recurring defects, adhesion issues, or color inconsistency, start by auditing these foundational factors before investing in equipment upgrades. Most problems resolve with better process discipline and maintenance.

We're here to help. If you'd like to discuss your specific coating challenges or explore how a custom-configured line might address your production needs, reach out. Whether it's troubleshooting an existing system or planning a new installation, we bring field experience and a detailed understanding of what makes coating lines perform reliably over time.

Contact us via WhatsApp at +8618925987762 or email ketucoatingline@gmail.com to discuss your electrostatic powder coating requirements. We're happy to arrange a consultation or discuss how tailored process control can improve your coating consistency and reduce waste.

---

[^1]: A dry coating process where charged powder particles are deposited onto a grounded surface and then cured in an oven to form a durable finish.

[^2]: A chemical process that creates a protective layer on metal substrates to enhance adhesion and corrosion resistance before coating application.

[^3]: An electrical testing instrument used to measure very high electrical resistance values, essential for verifying grounding continuity in powder coating systems.

[^4]: Encompasses moisture content, oil presence, and particulate contamination in compressed air systems affecting spray coating quality and equipment reliability.

[^5]: The process and conditions under which powder coating hardens and develops its final mechanical and chemical properties through heat application.

[^6]: A temperature-sensing device composed of two different metal wires joined at one end, used to measure temperature in ovens and thermal profiling applications.

[^7]: A standardized corrosion resistance test that exposes coated samples to salt spray environment to evaluate durability and coating protection quality.
