Professional Powder Coating System for Metal Furniture, Shelving & Industrial Parts

A powder coating system is an integrated solution combining multiple components (pretreatment, spray booth, oven, conveyor, recovery) engineered to work together seamlessly.

Key differences from buying separately:

• ✓ All components are coordinated for optimal performance
• ✓ Single supplier for support and spare parts
• ✓ Guaranteed compatibility between all modules
• ✓ Lower total cost of ownership (no coordination overhead)
• ✓ Complete warranty and technical support

Buying from multiple suppliers creates several hidden problems:

• ❌ Module incompatibilities cause performance issues
• ❌ No single point of support when problems occur
• ❌ Each vendor blames the other for failures
• ❌ Installation and commissioning becomes your headache
• ❌ Hidden coordination costs add up quickly

With an integrated system, everything is pre-tested and optimized for you.

Yes, absolutely! Our systems are highly flexible and can be customized for multiple product types through:

• ✓ Adjustable workholding fixtures (hooks, racks, jigs)
• ✓ Variable conveyor speeds for different cycle times
• ✓ Multiple spray booth configurations
• ✓ Manual systems excel at handling product variety
• ✓ Semi-auto and auto systems can also accommodate variety with proper setup

Manual and Semi-Automatic systems are best for businesses that regularly switch between product types.

Line: Refers to the physical sequence of equipment (the product path from start to finish)

System: Refers to the integrated solution including design, engineering, components, controls, and support

In our context, the terms are largely interchangeable, but "system" emphasizes the holistic, coordinated nature of the solution.

The choice depends primarily on your production volume:

Secondary factors: budget, space, product complexity, quality requirements

Formula: Plan for 20-30% growth buffer

1. Calculate your current monthly volume ÷ working days ÷ working hours = required pcs/hour

2. Add 20-30% for growth: required capacity = (current volume ÷ working hours) × 1.25

Example: If you need 200 pcs/day currently, that's ~25 pcs/hour. Plan for 30-35 pcs/hour to accommodate growth.

It's cheaper to oversize slightly now than to upgrade or replace equipment later.

Typical space requirements:

• Manual System: 60-100 m²
• Semi-Auto System: 100-200 m²
• Fully Auto System: 200-400 m²

The exact space depends on:

• • Line configuration (straight, L-shaped, or U-shaped)
• • Product size and workholding method
• • Clearance for maintenance and material handling
• • Ceiling height (typically 3-4.5 meters needed)

We can custom design the layout to fit your specific space. Let's do a site assessment together.

Absolutely—that's our specialty! We design every system to your exact requirements:

• ✓ Workholding fixtures designed for your product geometry
• ✓ Pretreatment process optimized for your material (steel, aluminum, etc.)
• ✓ Spray booth configuration matched to your size parts
• ✓ Curing temperature and time for your specific powder type
• ✓ Conveyor speed and capacity for your production rhythm

This is why we ask for detailed product information and specifications during the consultation phase.

Our systems consistently achieve:

• ✓ 95%+ color consistency across batches
• ✓ Even coverage without drips or sags
• ✓ Proper adhesion and durability per ISO standards
• ✓ Smooth, professional finish meeting customer expectations
• ✓ High gloss or matte options depending on powder type

Quality depends on: material prep, powder quality, spray technique, and curing process. Our fully integrated systems optimize all factors.

Fully Automatic systems achieve 99%+ color consistency.

Why? They control every variable:

• • Precise spray pressure and distance (automatic guns)
• • Controlled humidity and temperature in booth
• • Consistent oven temperature and dwell time
• • Uniform part speed through each stage

Manual and semi-auto systems achieve 90-95% consistency, with variation due to operator skill variations.

Throughput depends on the bottleneck:

• • Pretreatment time: 2-5 minutes
• • Spray booth processing: 1-3 minutes
• • Curing time: 5-20 minutes (the typical bottleneck)
• • Cooling time: 5-10 minutes

Total cycle time typically 20-40 minutes. We can optimize by running multiple pieces in parallel or using faster-curing powder formulations.

Standard powder coating requires 180-250°C for 10-30 minutes.

Variables that affect curing time:

• • Powder chemistry (fast-cure or standard)
• • Target temperature (higher = faster)
• • Part thickness and material (affects heat penetration)
• • Desired finish quality

We can calibrate your oven for your specific powder type and requirements.

Yes, we fully handle installation. Timeline:

• • 3-5 days: Equipment delivery and assembly
• • 2-3 days: Electrical and gas connections
• • 2-3 days: System commissioning and testing
• • 2-3 days: Operator training

Total on-site: 1-2 weeks for a complete system installation and commissioning.

We coordinate all logistics, utilities, and testing. Your job is providing access and hosting our technicians.

Comprehensive training is included:

• ✓ Operator training (2-3 days): Daily operation, troubleshooting, safety
• ✓ Maintenance training (1-2 days): Cleaning, part replacement, preventive care
• ✓ Supervision training: Quality monitoring, process optimization, production planning

We also provide written manuals, video tutorials, and 24/7 remote support access for ongoing questions.

Our support includes:

• ✓ 24/7 telephone/WhatsApp support hotline
• ✓ Remote diagnostics and troubleshooting
• ✓ Field service visits (quarterly preventive maintenance included)
• ✓ Rapid spare parts availability and shipping
• ✓ Process optimization consultations
• ✓ Extended technical support contracts available

We're invested in your success. When your system runs well, you're our best advertisement.

Emergency Response SLA:

• ✓ Initial response: Within 2 hours (phone/WhatsApp)
• ✓ Remote troubleshooting: Immediate
• ✓ Field technician dispatch: Within 24-48 hours (depending on location)
• ✓ Spare parts shipping: 2-5 days domestically

Most issues are resolved remotely without requiring a site visit. We keep common spare parts in local stock for quick turnaround.

Investment ranges by system type:

• • Manual System: ¥50-8010000 (includes equipment, installation, training)
• • Semi-Automatic System: ¥100-15010000
• • Fully Automatic System: ¥200-30010000+

Investment includes:

• ✓ Equipment manufacturing and delivery
• ✓ Full installation and commissioning
• ✓ Staff training (3-5 days)
• ✓ 1-year warranty and technical support

Financing options available: Equipment leasing, installment plans, or vendor financing to match your cash flow.

Annual OpEx breakdown (typical):

• • Energy (electricity/gas): ¥8-1510000/year
• • Powder coating material: ¥5-1010000/year (with recovery system)
• • Labor (operators): ¥15-2510000/year
• • Maintenance & repairs: ¥2-410000/year
• • Spare parts & consumables: ¥1-210000/year

Total annual OpEx: ¥30-6010000 depending on utilization and product mix

Our energy-efficient systems reduce OpEx by 25-40% compared to industry average.

Payback period by system type:

• Manual System: 1.5-2.5 years (if utilized 80%+ capacity)
• Semi-Auto System: 2.5-3.5 years (typical utilization 70-80%)
• Fully Auto System: 4-5 years (requires high-volume consistent production)

Payback is calculated from annual cost savings vs. operating expenses.

Example: Semi-Auto system costs ¥12510000. If it generates ¥4010000 annual savings, payback = 3.1 years.

Common hidden costs to budget for:

• ❌ Site preparation (floor reinforcement, utilities)
• ❌ Extended warranty beyond 1 year
• ❌ Remote support or on-site training beyond initial
• ❌ Environmental compliance upgrades (if needed)
• ❌ Production lost during installation (1-2 weeks downtime)

Advantages of our integrated system approach:

• ✓ No multi-vendor coordination costs
• ✓ No compatibility/integration expenses
• ✓ Single warranty and support contract
• ✓ Transparent, all-in pricing model

Standard warranty: 12 months from commissioning

Covers:

• ✓ Equipment defects and manufacturing faults
• ✓ Component failure due to normal use
• ✓ Free replacement parts for covered items
• ✓ Free labor for warranty repairs
• ✓ Remote technical support

Does NOT cover:

• • Damage from misuse or operator error
• • Wear items (filters, gaskets, seals)
• • Consumables (powder, pretreatment chemicals)

Extended warranties (2-5 years) available at additional cost.

Maintenance schedule:

• 📅 Daily: Filter cleaning, visual inspection
• 📅 Weekly: Pretreatment tank level check, spray gun cleaning
• 📅 Monthly: System purge, conveyor lubrication, electrical check
• 📅 Quarterly: Professional preventive maintenance (included in support plan)
• 📅 Annually: Deep cleaning, parts replacement, system recalibration

Proper maintenance extends system life to 10-15+ years and prevents costly breakdowns.

Expected system lifespan: 10-15 years with proper maintenance

Timeline for major upgrades:

• • Years 1-5: Minimal maintenance, optimal performance
• • Years 5-10: Regular maintenance, occasional component replacement
• • Years 10-15: Consider upgrading spray guns, controls, or energy systems
• • Year 15+: Full system replacement typically more economical than continuing upgrades

Our modular design allows you to upgrade individual components (spray booths, ovens, controls) without replacing the entire system.

Yes—we maintain extensive spare parts inventory.

Availability:

• ✓ Common parts (filters, gaskets, seals): In stock, 1-2 day shipping
• ✓ Standard components (spray guns, motors): 5-7 days
• ✓ Custom parts: 2-4 weeks manufacturing + shipping

We also provide drawings and part lists so you can source certain items from approved vendors if needed.

Preventive maintenance programs available that automatically ship replacement parts on schedule, minimizing unexpected downtime.

Our systems are designed for scalability. You have several options:

• Optimize existing: Reduce cycle time, increase throughput 10-20%
• Add parallel line: Install second spray booth or oven
• Upgrade to faster system: From manual to semi-auto, or semi-auto to automatic
• Multi-shift operation: Run existing system 16-24 hours per day

Cost of upgrade: Typically 30-50% of original investment (much cheaper than starting over)

Our modular approach means you don't have to replace pretreatment or ovens—just add spray booths or conveyor sections.

Absolutely. Common upgrades include:

• ✓ Add automatic spray guns to manual system
• ✓ Integrate automated parts handling/robotic arms
• ✓ Upgrade controls to Industry 4.0 monitoring system
• ✓ Add multi-color automatic powder system
• ✓ Integrate water/waste treatment system
• ✓ Add environmental monitoring (emissions, noise)

Our platform design makes these additions straightforward and cost-effective.

Yes, our modern systems are IoT-ready.

Data collection capabilities:

• ✓ Real-time production metrics (throughput, cycle time)
• ✓ Equipment performance monitoring (temperature, pressure, energy)
• ✓ Predictive maintenance alerts (sensor-based diagnostics)
• ✓ Quality tracking (spray gun efficiency, cure profile)
• ✓ Integration with MES (Manufacturing Execution Systems)

Optional cloud dashboards allow remote monitoring from your office or smartphone.

Yes—especially for manual and semi-automatic systems.

Product flexibility:

• ✓ Manual systems: Excellent for 100% product variety
• ✓ Semi-auto: Good for occasional product changes (10-15 min setup)
• ✓ Fully automatic: Limited (15-30 min setup for similar products)

Reconfiguration items:

• • Workholding fixtures (quick-change available)
• • Conveyor hooks or racks
• • Spray parameters (software-adjustable in modern systems)

Plan for 30-60 minutes of downtime per product changeover.

Yes—we comply with all major environmental standards:

• ✓ ISO 14001 (Environmental Management)
• ✓ EU Emissions Directive
• ✓ Chinese environmental standards (GB standards)
• ✓ VOC (Volatile Organic Compound) requirements
• ✓ Wastewater treatment protocols

Key environmental features:

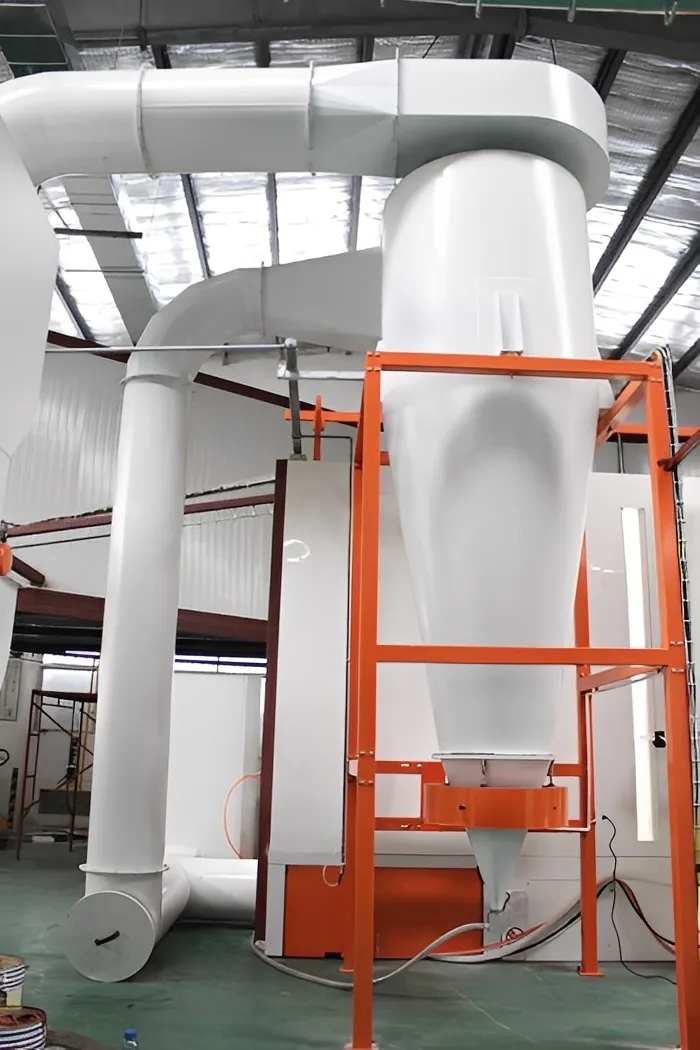

• • 95%+ powder recovery system
• • Energy-efficient oven design
• • Dust collection meeting international standards
• • Minimal wastewater generation (immersion-based pretreatment)

Yes—our comprehensive certifications include:

• ✓ ISO 9001:2015 (Quality Management)
• ✓ ISO 14001:2015 (Environmental Management)
• ✓ CE Marking (for EU market compliance)
• ✓ OHSAS 18001 (Occupational Health & Safety)

These certifications ensure our systems meet international quality and safety standards.

View our full certification portfolio at /certifications/
