The Complete Powder Coating Process Explained
Discover the 5-step workflow from surface preparation to final curing. Learn how our complete coating solutions deliver superior quality, environmental protection, and operational efficiency for your manufacturing needs.
Years Experience
Global Customers
Projects Delivered
In-House Manufactured
The 5-Step Powder Coating Process
Understand each stage from surface preparation to final curing, and how our equipment ensures consistent, high-quality results

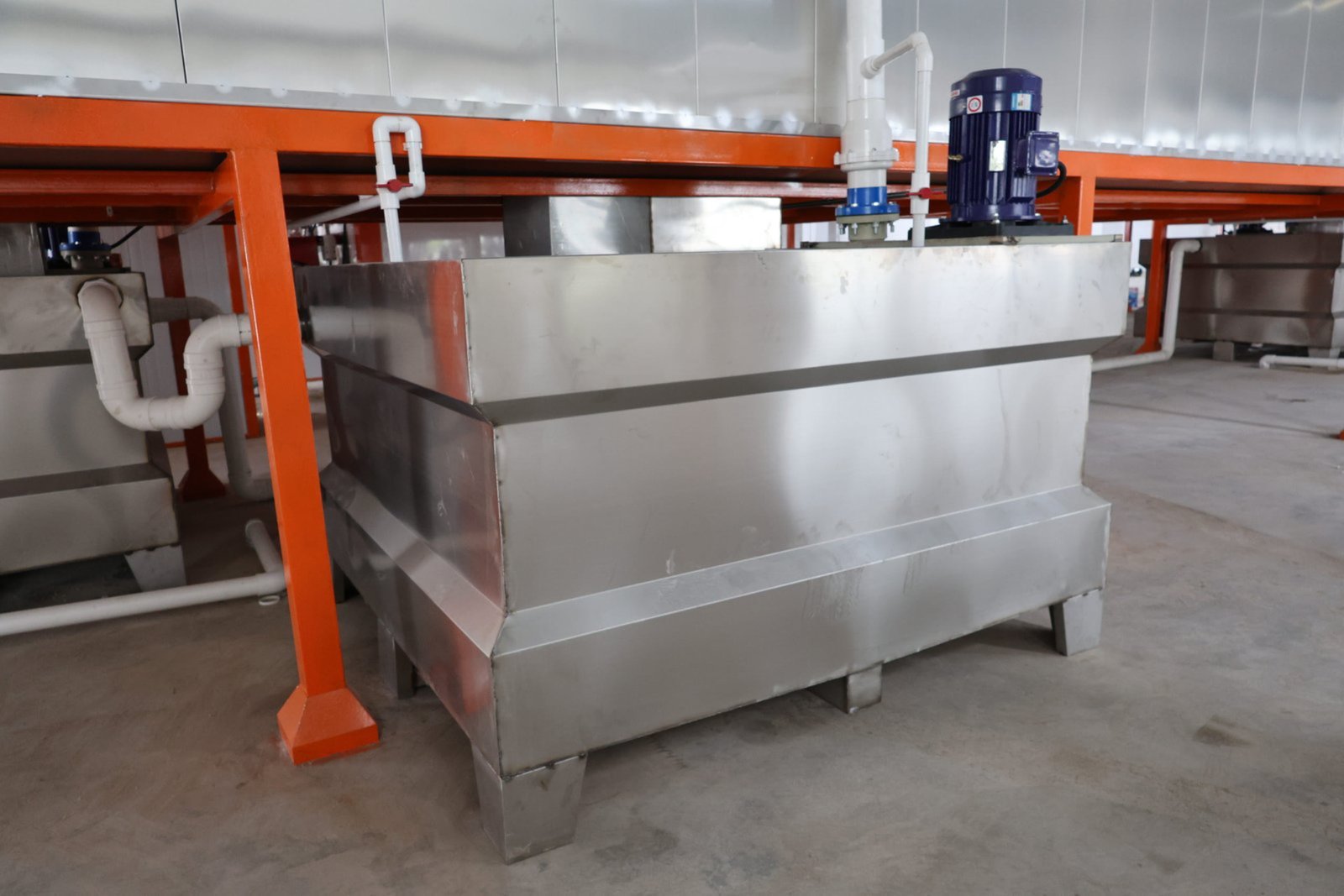

Surface Pretreatment
Remove oil, grease, rust, and contaminants from the metal surface. This critical stage uses either immersion or spray methods with specialized chemical solutions.
- Phosphate coating: Creates 2-5 micron protective layer
- Prevents corrosion: Improves coating adhesion by 90%
- Process time: 5-15 minutes depending on contamination level
Drying
Remove residual moisture from the surface after pretreatment. Proper drying ensures better powder adhesion and prevents defects.
- Temperature: 60-80°C for optimal results
- Processing time: 2-5 minutes
- Energy efficient: Controlled air circulation minimizes waste
Electrostatic Powder Spray
Apply powder coating using electrostatic attraction. The charged powder particles are attracted to the grounded metal surface, ensuring uniform coverage.
- Powder utilization: 95%+ efficiency with recovery system
- Uniform coverage: No sagging, dripping, or runs
- Quick spray time: Manual (15-30 sec/pcs) or automatic options
Settling & Flow
Allow the charged powder particles to settle and self-flow on the metal surface. This brief waiting period ensures perfect adhesion before curing.
- Duration: 2-5 minutes
- Environment: Dust-free, wind-free zone
- Result: Smooth, uniform surface before curing
Curing & Solidification
Heat the coated workpiece to fuse the powder particles and create a durable, permanent coating through chemical cross-linking.
- Temperature: 180-220°C (depends on powder type)
- Time: 10-15 minutes for full fusion
- Result: Durable, scratch-resistant finish
Our Complete Powder Coating Line Solutions
From manual operations for small batches to fully automatic systems for high-volume production, we have the right solution for your manufacturing needs

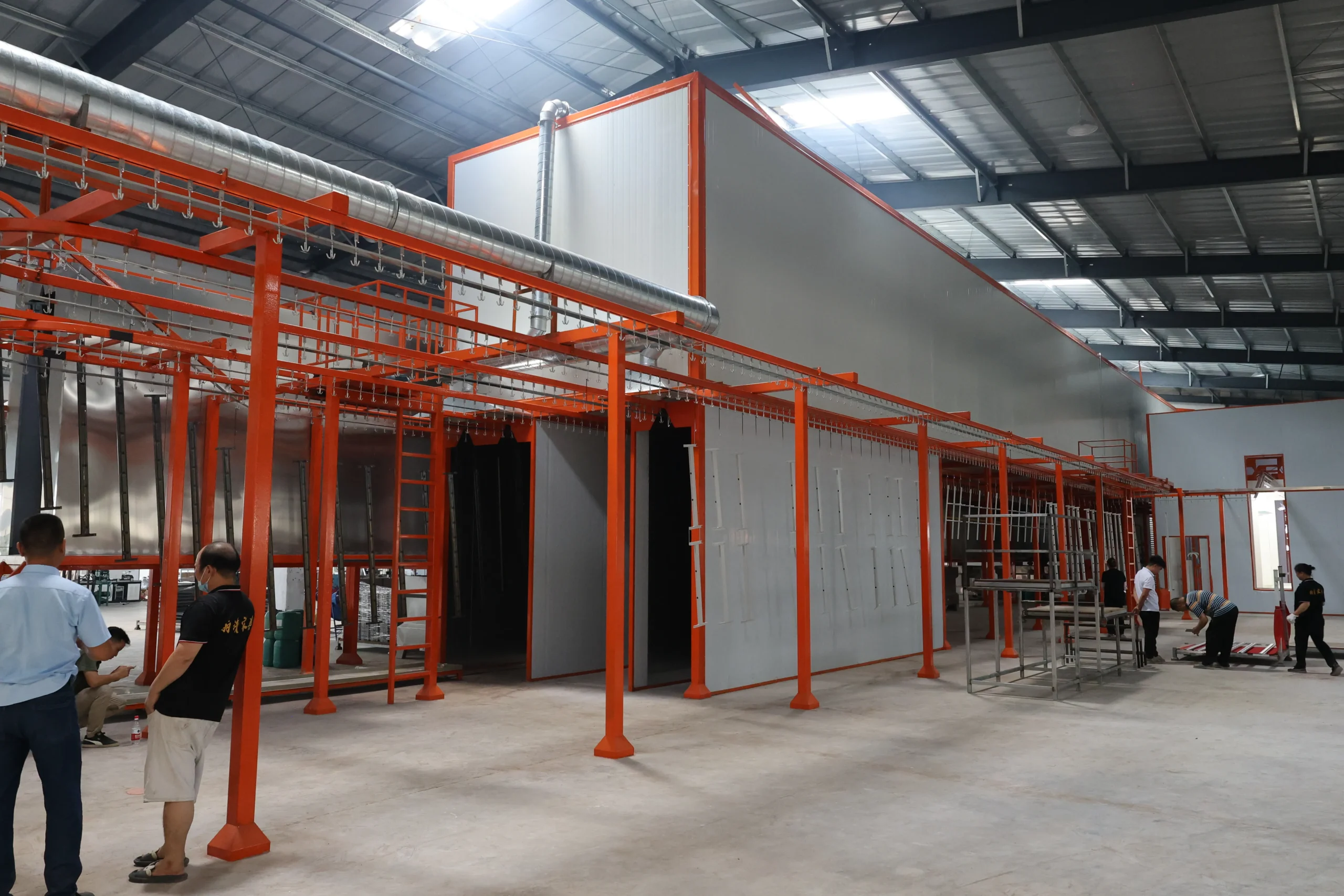

Manual Spray Line
Capacity: 50-100 pcs/hour
Best for: Multi-product, low-volume, complex shapes
Footprint: 40-60 m²
Investment: $30-80K
- Simple structure, easy operation
- Flexible multi-color changes
- Low operating costs
Semi-Automatic Line
Capacity: 100-250 pcs/hour
Best for: Medium-volume, standard products
Footprint: 80-120 m²
Investment: $150-350K
- Automatic reciprocating spray pattern
- Consistent coating quality
- Reduced labor requirements
Fully Automatic Line
Capacity: 300-600 pcs/hour
Best for: High-volume, dedicated products
Footprint: 150-250 m²
Investment: $400K-1M+
- Dual reciprocating guns for 360° coverage
- Minimal operator intervention
- Maximum efficiency & consistency

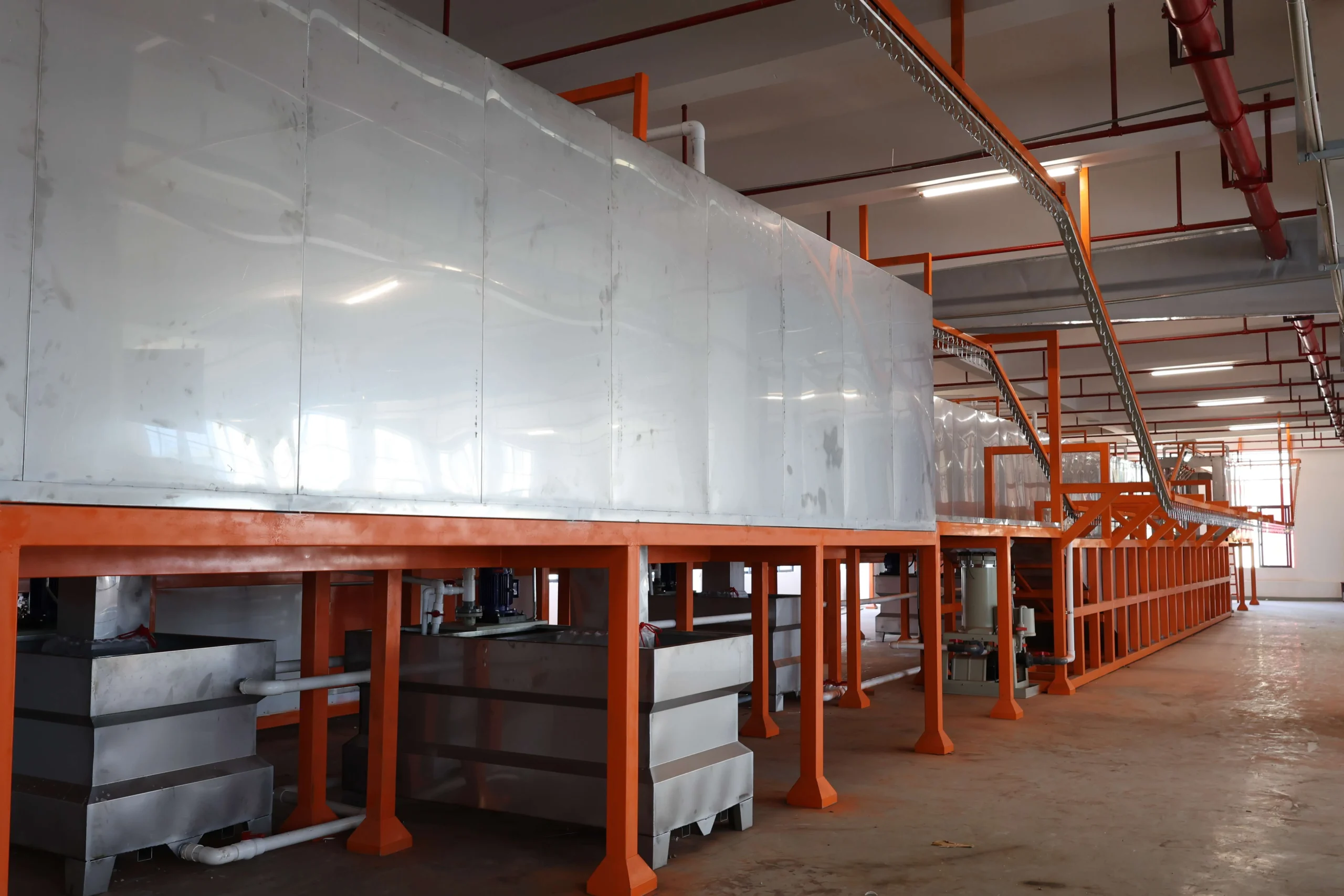

Modular Pretreatment System
Standalone or integrated pretreatment solutions with chemical-free or chemical-based options

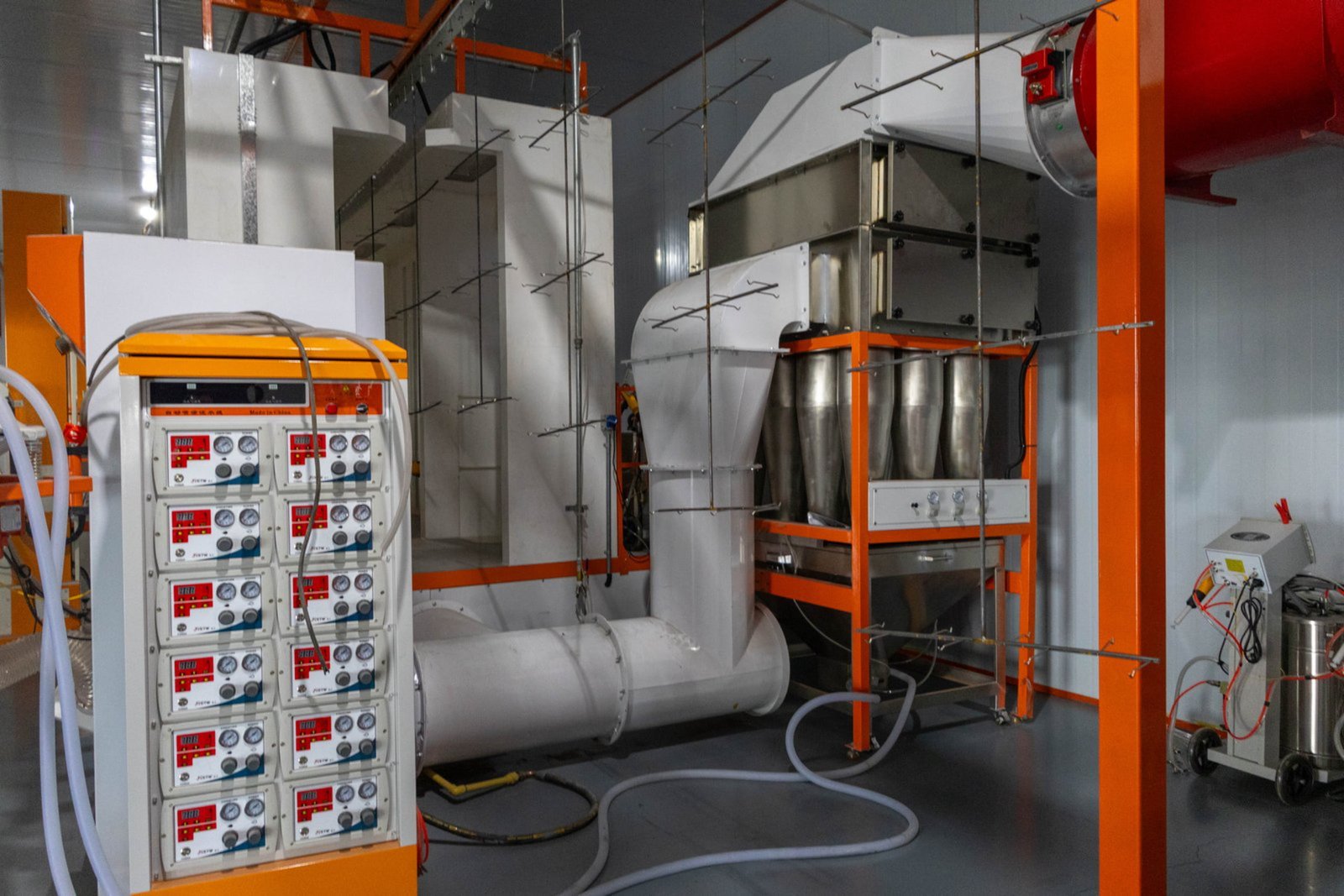

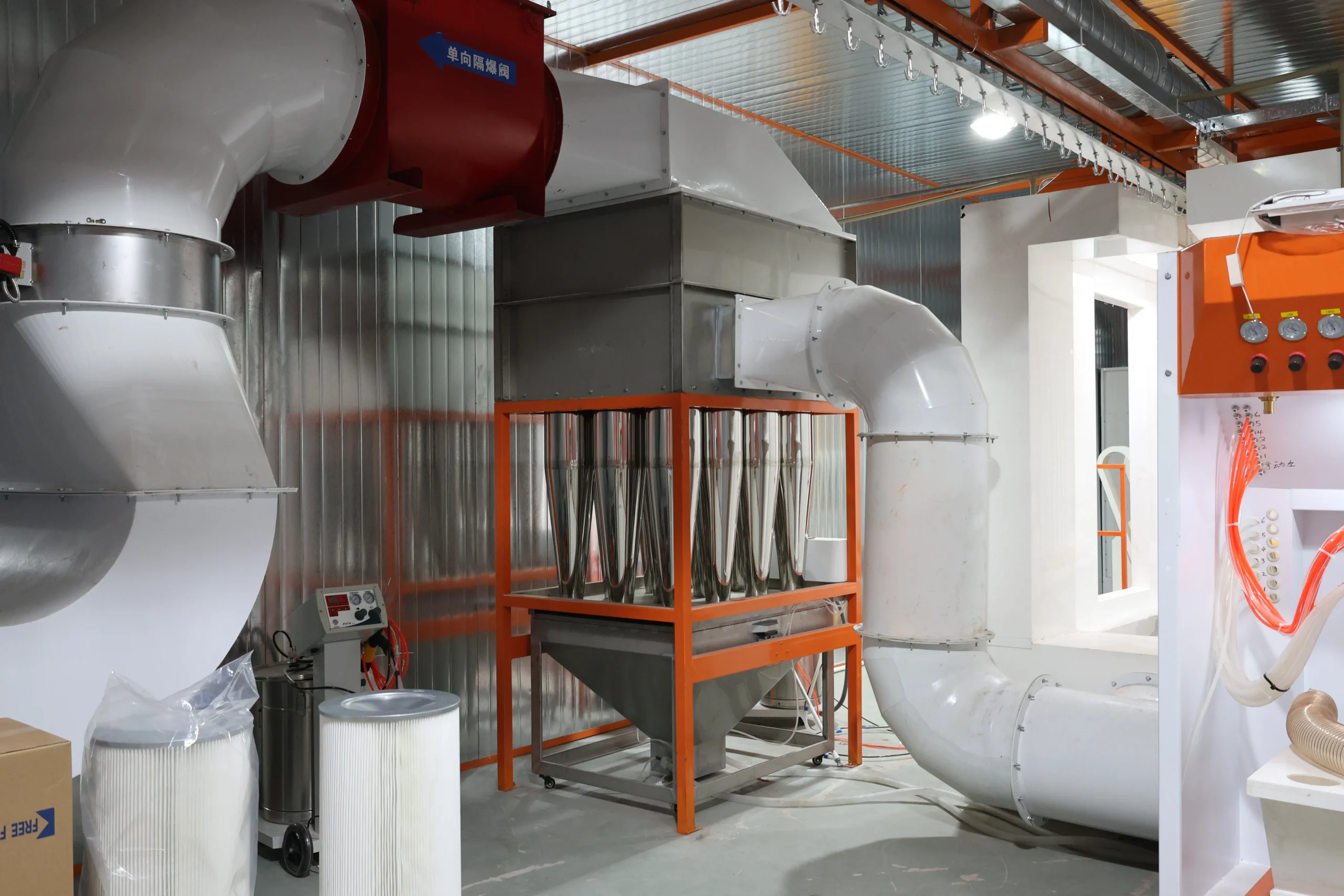

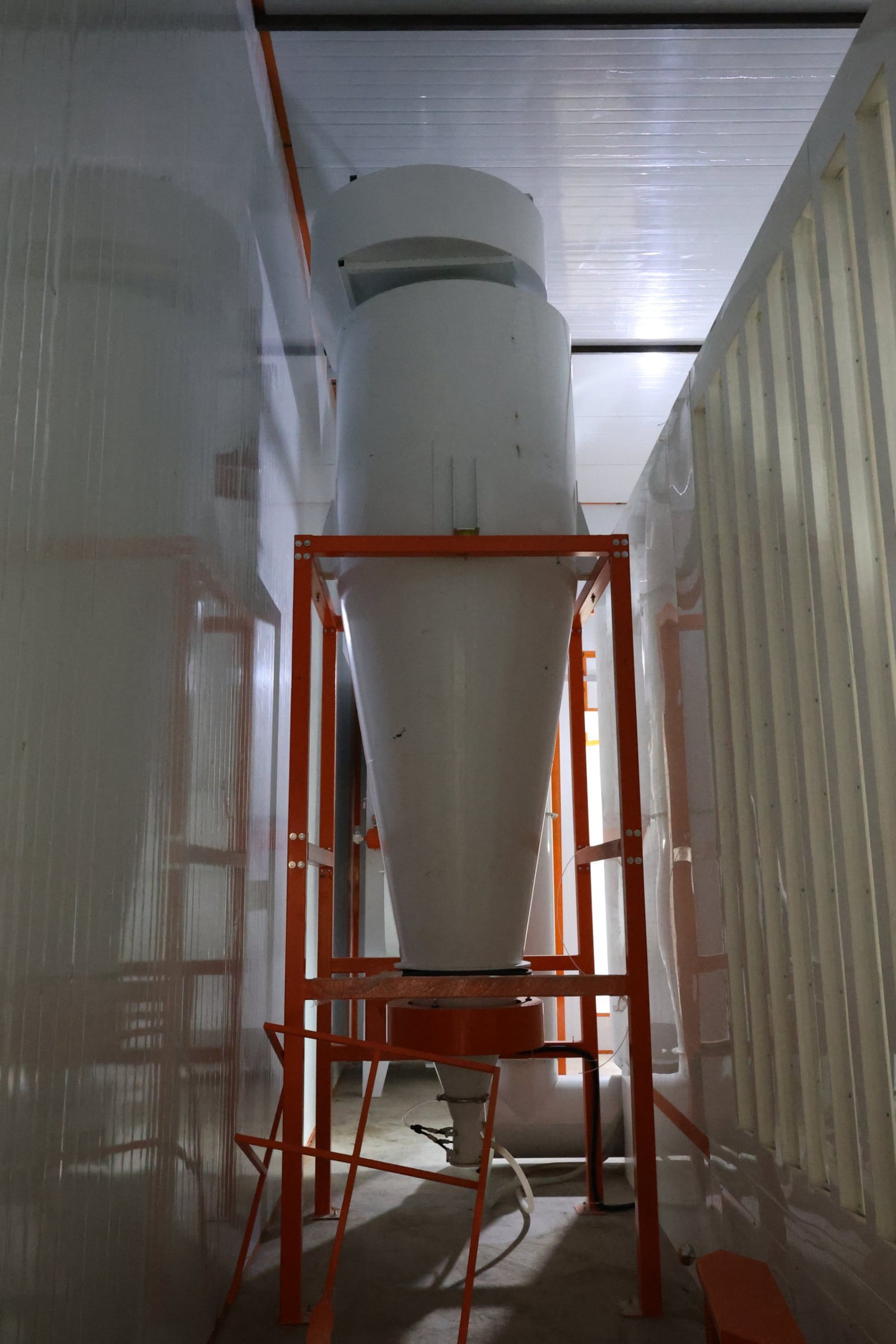

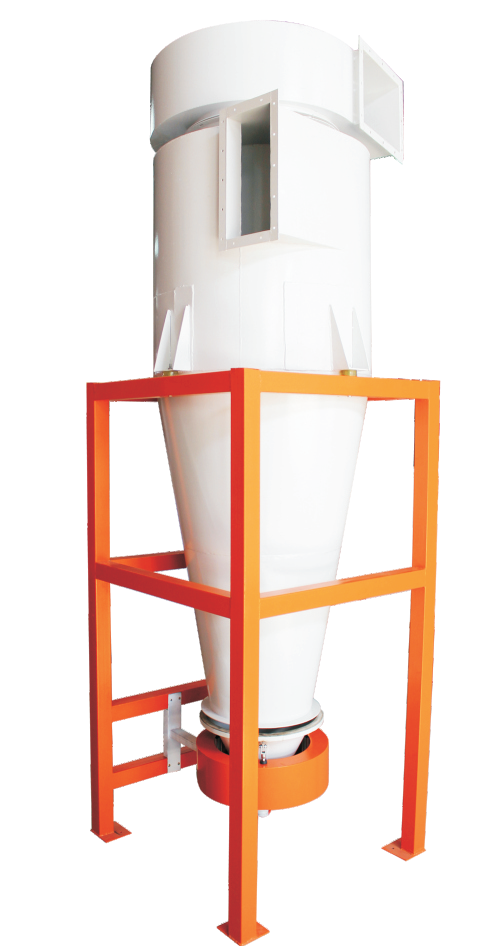

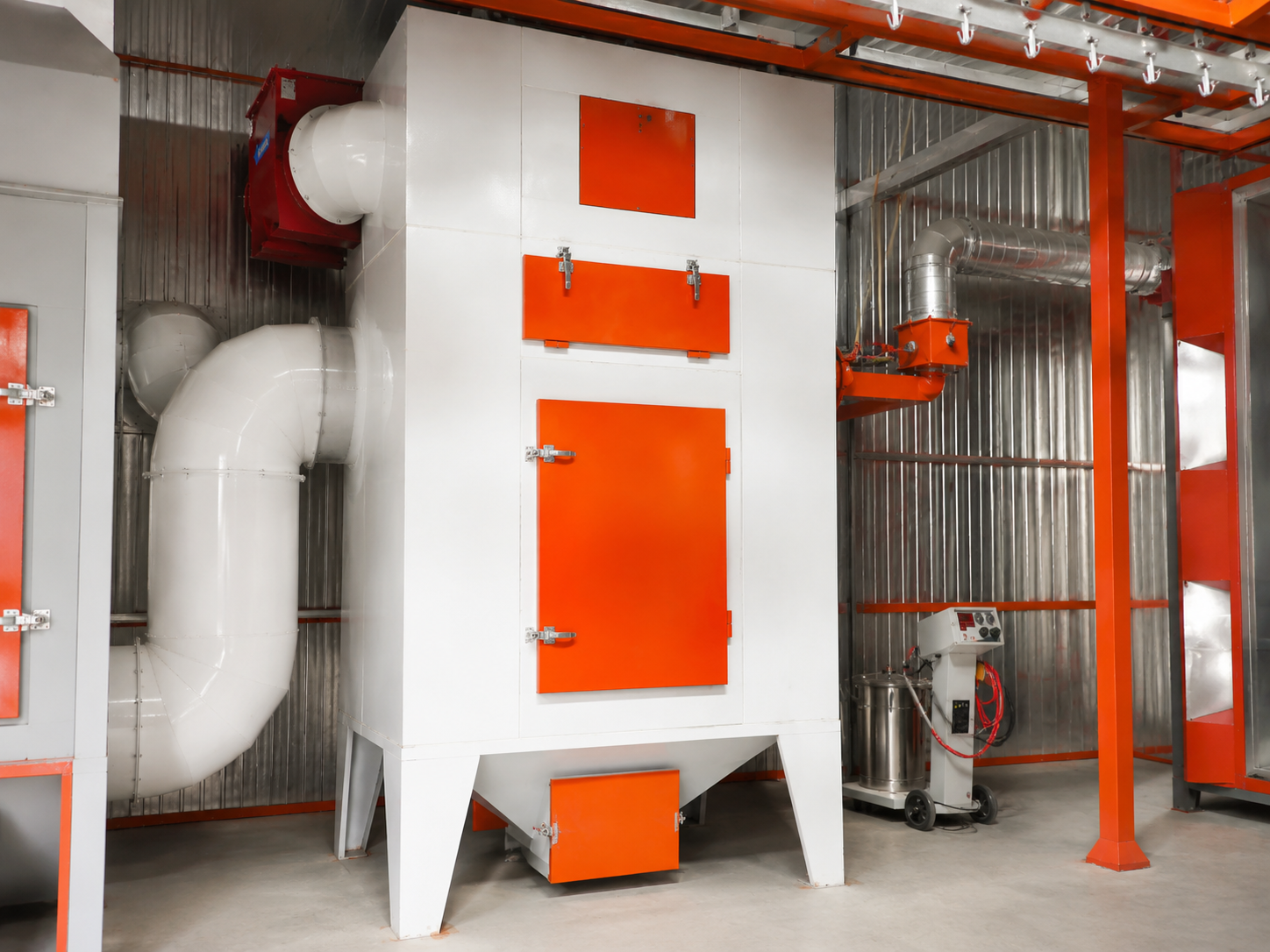

Powder Recovery System
Advanced cyclone technology recovers 95%+ of unused powder, reducing material costs significantly

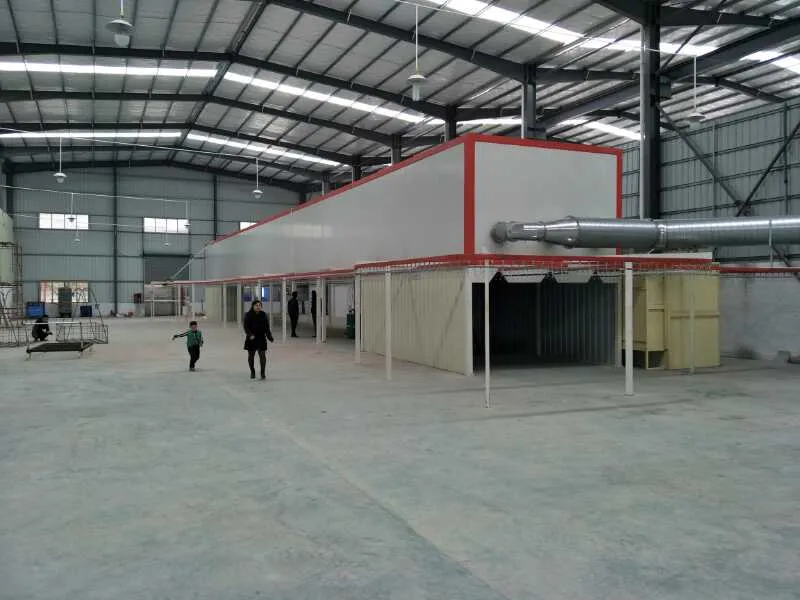

Electric Curing Oven
Precise temperature control, energy-efficient design with insulated chambers for consistent results
Gas Curing Oven
High-efficiency gas heating with rapid temperature rise, ideal for large-scale high-volume operations
Can't find your exact requirements? We specialize in custom-designed solutions tailored to your unique production needs.
Our Manufacturing Expertise
With 20+ years of experience and complete in-house manufacturing control, we deliver precision-engineered equipment that meets the highest industry standards
Main Assembly Workshop
Spray Booth Assembly

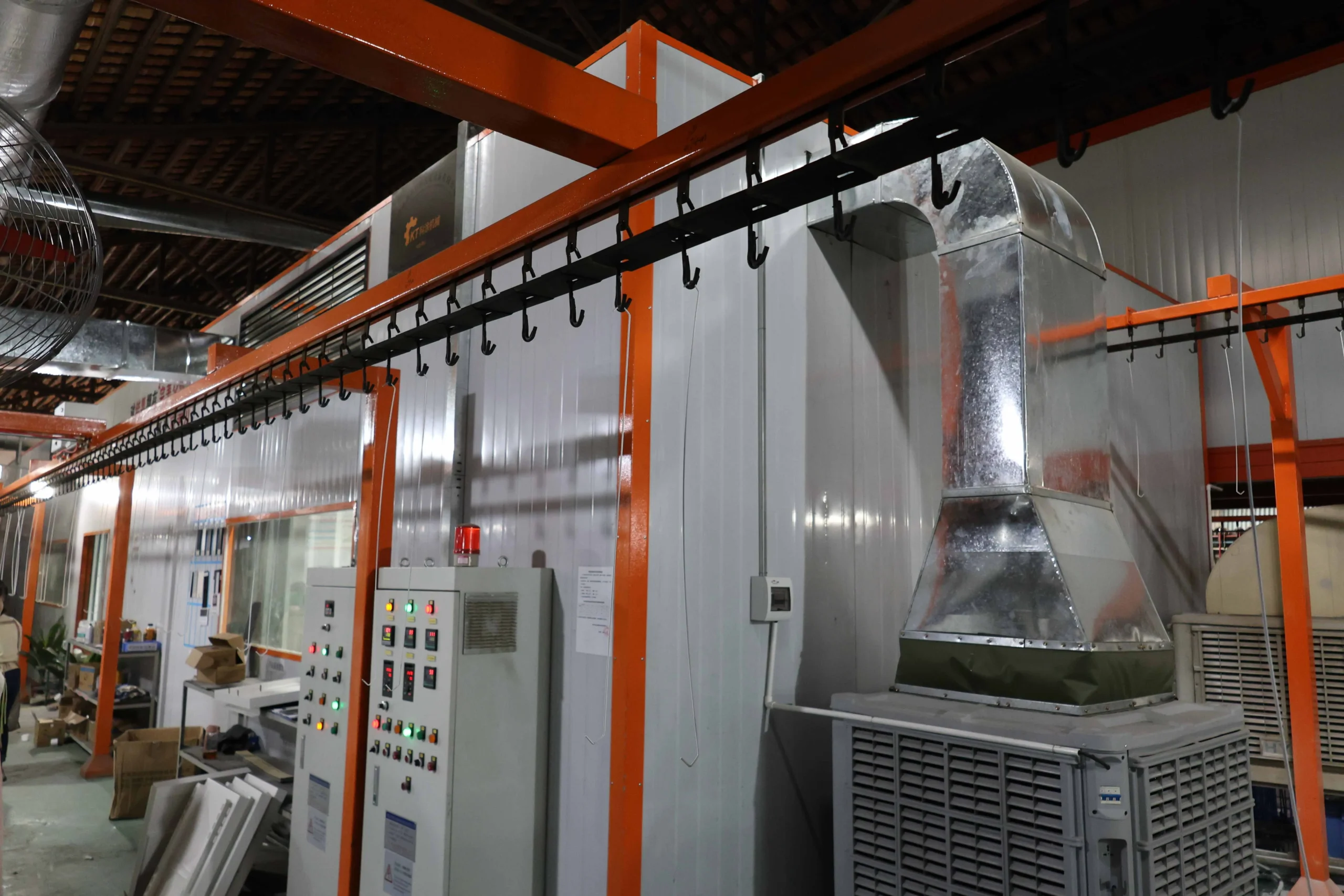

Oven Manufacturing

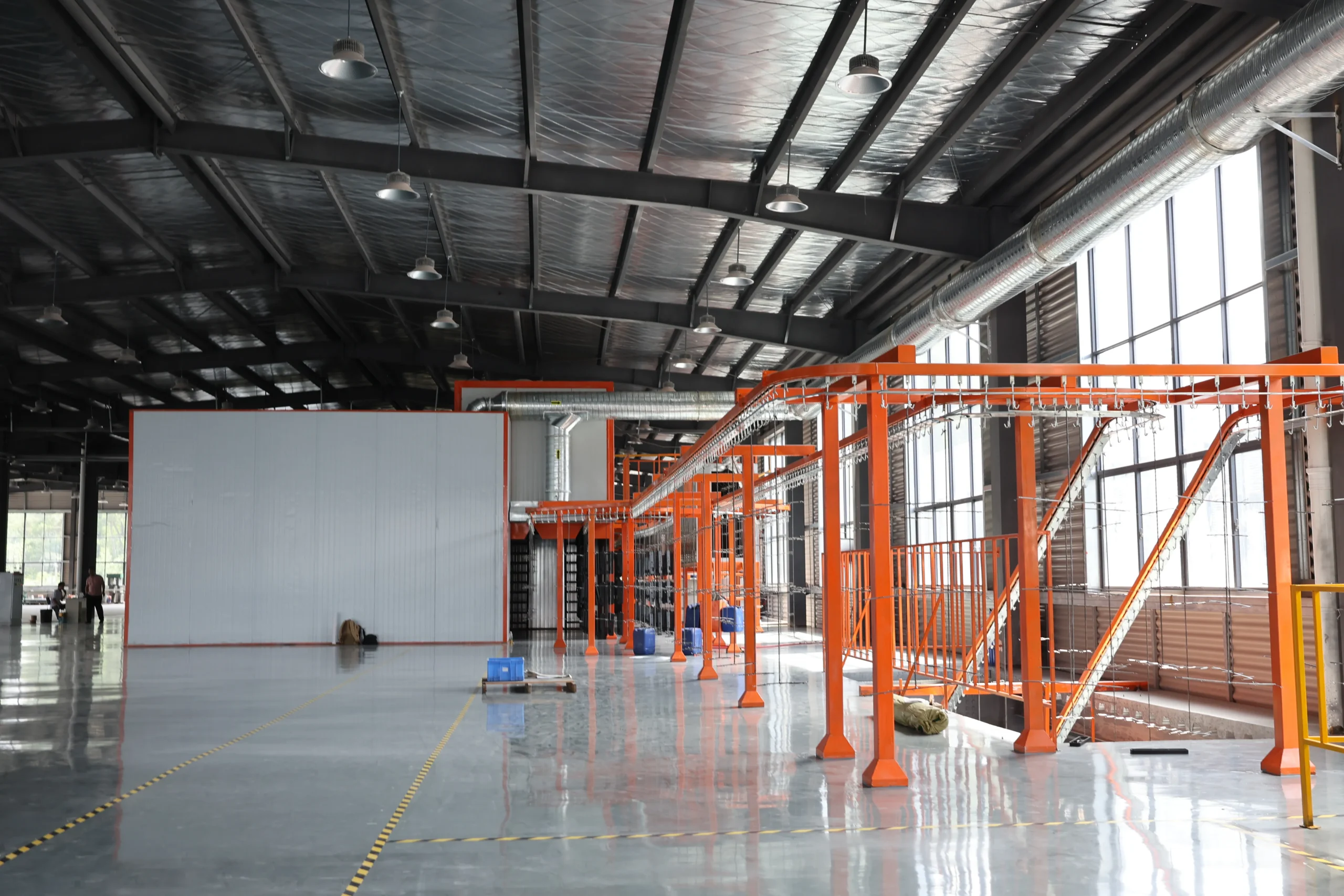

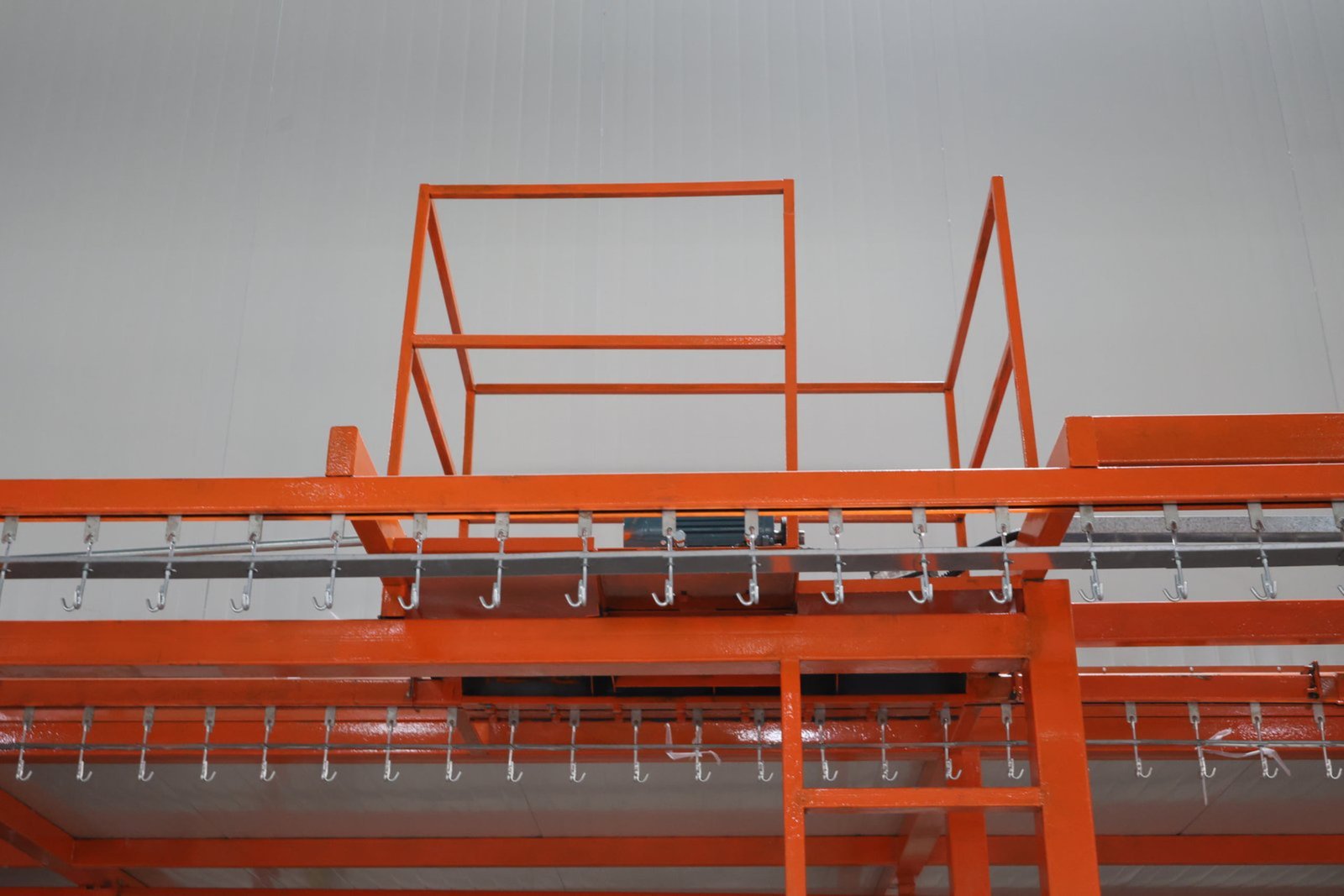

Conveyor System Production
Quality Testing Lab
Logistics & Storage
Custom Design
Tailored solutions for unique production requirements and factory layouts
Complete Fabrication
All components manufactured in-house with 100% quality control
Advanced Testing
Comprehensive quality assurance and performance validation before delivery
Global Support
24/7 technical support and on-site service teams worldwide
Powder Coating Solutions for Every Industry
From metal furniture to electrical cabinets, we serve diverse manufacturing sectors with specialized coating expertise
Metal Furniture
Cabinets, shelves, beds, tables
Typical Capacity: 50-150 pcs/h
Recommended: Manual or Semi-Auto
Electrical Cabinets
Control boxes, enclosures, panels
Typical Capacity: 80-200 pcs/h
Recommended: Semi-Auto / Auto
Aluminum Profiles
Window frames, structural profiles
Typical Capacity: 200-500 pcs/h
Recommended: Fully Automatic
Hardware & Fasteners
Bolts, brackets, hinges, springs
Typical Capacity: 500-1000 pcs/h
Recommended: Fully Auto
Sheet Metal
Stampings, welded components
Typical Capacity: 100-300 pcs/h
Recommended: Semi-Auto / Auto
Home Appliances
Refrigerator, washer, dryer parts
Typical Capacity: 150-400 pcs/h
Recommended: Auto + QC
Building Materials
Door frames, hinges, railings
Typical Capacity: 50-200 pcs/h
Recommended: Manual / Semi-Auto
Lighting Components
Lamp bases, fixtures, supports
Typical Capacity: 100-300 pcs/h
Recommended: Auto
Don't see your industry? Our expertise spans 10+ manufacturing sectors.
Our Project Delivery Process
From initial consultation through on-site commissioning, we guide you every step of the way
Requirement Assessment
1–2 weeks
- ✓ Product analysis
- ✓ Capacity evaluation
- ✓ Space survey
Design & Engineering
2–4 weeks
- ✓ CAD design
- ✓ 3D layout
- ✓ Equipment BOM
Manufacturing
6–8 weeks
- ✓ Component fabrication
- ✓ Assembly & welding
- ✓ Quality testing
Shipping & Logistics
2–4 weeks
- ✓ Professional packing
- ✓ Customs clearance
- ✓ Tracking & insurance
On-Site Installation
1–2 weeks
- ✓ Equipment assembly
- ✓ Electrical setup
- ✓ Safety checks
Commissioning
3–5 days
- ✓ Trial operation
- ✓ Staff training
- ✓ Final handover
Requirement Assessment
1–2 weeks
Product analysis, capacity evaluation, space survey
Design & Engineering
2–4 weeks
CAD design, 3D layout, equipment specification
Manufacturing
6–8 weeks
Fabrication, assembly, quality testing
Shipping & Logistics
2–4 weeks
Professional packing, customs, insurance
On-Site Installation
1–2 weeks
Assembly, electrical, safety checks
Commissioning
3–5 days
Trial run, staff training, final handover
Typical Total Timeline (Weeks)
Countries Served
On-Time Delivery Rate
Trusted by 500+ Factories Worldwide
Proven expertise across industries, regions, and production scales
Global Customers
Active partnerships worldwide
Countries Served
Asia, Europe, Americas, Africa
Projects Completed
Successfully installed & commissioned
Satisfaction Rate
Long-term client retention
By Geographic Region
By Industry Vertical
Recent Project Installations
Metal Furniture Plant
Vietnam • 200 pcs/h Line
Electrical Cabinet Maker
Thailand • 150 pcs/h Line
Aluminum Extruder
Malaysia • 300 pcs/h Line
Hardware Factory
Indonesia • 250 pcs/h Line
Powder Coating Process FAQs
Clear answers to help you make the right equipment decision
Process Understanding
What are the main advantages of powder coating vs. liquid painting?
+What are the 5 main steps of the powder coating process?
+Why is pretreatment so critical in powder coating?
+What curing temperature and time are needed?
+Equipment Selection
How do I choose between manual, semi-auto, and fully automatic lines?
+What's the difference between electric and gas curing ovens?
+Can I retrofit powder coating into my existing production line?
+Capacity & Planning
How do I calculate the right production capacity?
+How much factory space do I need for a powder coating line?
+Can the same line handle different colors and products?
+Cost & Investment
What's the typical cost of a powder coating line?
+What are the main operating costs?
+How long to achieve ROI on equipment investment?
+Delivery & Support
What's the typical project timeline?
+Do you provide on-site installation and staff training?
+What after-sales support do you offer?
+Still Have Questions?
Our engineering team is ready to discuss your specific requirements and provide a customized solution.
Complete Powder Coating Buyer's Guide
Everything you need to know to make an informed purchasing decision
Why Choose Powder Coating?
Powder coating has become the industry standard for metal finishing over the past three decades. It offers zero VOC emissions, 95%+ material utilization, and superior durability compared to traditional liquid paint.
Environmental
EPA-compliant, zero solvent evaporation, recycles 95% of overspray
Economic
15–25% lower material cost, 2–3x faster throughput than paint
Quality
Uniform thickness, zero sags/runs, 5–10 year durability
Consistency
Electrostatic application ensures precise, repeatable coverage
Automation Levels: What's Right for You?
The choice between manual, semi-automatic, and fully automatic systems depends on your production volume, product variety, factory space, and investment budget.
Manual Lines (Hand Spray)
Flexibility for multi-product job shops; 30–80 pcs/hour; $30K–80K investment
⚙️ Reciprocating spray gun + manual part handling + simple oven
Semi-Automatic Lines (Assisted Spray)
Best balance of cost/capability; 100–200 pcs/hour; $150K–350K investment
⚙️ Automated reciprocating gun + manual/semi-auto conveyor + energy-efficient oven
Fully Automatic Lines (Production)
Maximum throughput and ROI; 200–500+ pcs/hour; $400K–1M+ investment
⚙️ Dual reciprocating guns + full conveyor automation + advanced oven + recovery system
Investment Cost & ROI Analysis
Formula: ROI (months) = Equipment Cost ÷ (Monthly Revenue − Operating Cost)
Typical Equipment Investment
- • Manual system: $30K–80K
- • Semi-auto system: $150K–350K
- • Full auto system: $400K–1M+
- • Installation/commissioning: +20–30%
Expected ROI Timeline
- • High volume (400+ pcs/day): 12–18 mo
- • Medium volume (150–300 pcs/day): 18–30 mo
- • Low volume (50–100 pcs/day): 30–48 mo
- • Break-even point: 50–70% capacity
💡 Tip: Operating cost typically ranges $1.10–$3.00 per unit (powder, energy, labor, maintenance). At $0.50/unit profit margin, a high-volume operation breaks even in 12–18 months.
Quality Standards & Compliance
Proper powder coating setup ensures compliance with international standards and delivers consistent, durable finishes that exceed customer expectations.
Environmental Standards
- ✓ EPA & local emissions regulations
- ✓ Zero VOC compliance
- ✓ Waste powder recovery & recycling
- ✓ Wastewater treatment (pretreatment tanks)
Quality & Certification
- ✓ ISO 9001 Quality Management
- ✓ ISO 14001 Environmental Management
- ✓ ASTM & DIN coating thickness standards
- ✓ Salt spray & adhesion testing (ASTM B117)
5 Common Mistakes to Avoid
Undersizing the line
Always design for 30–50% capacity headroom to handle peaks and changeovers
Skipping pretreatment optimization
Poor pretreatment = 50% coating failure rate within 1 year; it's the foundation of quality
Not budgeting for installation & training
Add 20–30% to equipment cost for site prep, installation, commissioning, and staff training
Ignoring space constraints early
Space limitations discovered late = costly retrofits; survey your floor layout first
Choosing vendor based only on price
After-sales support, technical expertise, and reliability matter more than upfront cost
Ready to Move Forward?
Now that you understand the complete powder coating process and investment landscape, our engineering team can help you design the perfect solution for your factory.
Common Questions About Powder Coating
Find answers to the most frequently asked questions from manufacturers planning their coating solution.
📋 Process Understanding
What are the main advantages of powder coating vs liquid paint?
▼Powder coating offers four major advantages:
- ✓ Environmental: 0% VOC emissions, solvent-free, fully EPA compliant
- ✓ Efficiency: 95%+ powder utilization rate, minimal overspray waste
- ✓ Speed: 10-15 min curing time vs 24h for liquid paint; higher throughput
- ✓ Quality: Uniform thickness, zero sags/runs, superior durability (15-20 year lifespan)
Expected savings: 15-25% material cost + 20-30% labor over 2 years
What are the 5 main steps of the powder coating process?
▼- Surface Pretreatment – Remove oil, rust, contaminants; apply phosphate coating (2-5μm)
- Drying – Hot air circulation at 60-80°C, 2-5 minutes to remove moisture
- Powder Spray – Electrostatic application to workpiece surface
- Settling – 2-5 min flow-out time at ambient temperature for self-leveling
- Curing – Heat to 180-220°C for 8-15 min to fuse and crosslink coating
Why is pretreatment so critical in powder coating?
▼Pretreatment is essential for three reasons:
- ✓ Adhesion: Phosphate layer bonds powder to substrate, preventing peeling or chipping
- ✓ Corrosion Prevention: Protects base metal from rust penetration through coating
- ✓ Surface Cleanliness: Removes oils and contaminants that weaken adhesion
⚠ Skip pretreatment = 50% coating failure rate within 1 year
Pretreatment cost adds only 5-10% to process but prevents 90% of quality failures.
What curing temperature and time are required?
▼Standard: 200°C for 10-15 minutes (varies by powder type)
• High-flow Polyester: 190°C / 10 min
• Epoxy: 220°C / 15 min
• Polyurethane: 140°C / 20 min
Trade-off: Faster curing = higher throughput but risk of incomplete fusion. Slower = better quality but lower productivity.
Our ovens feature precise temperature control and can be customized for your specific powder type.
🔧 Equipment Selection
How do I choose between manual, semi-automatic, and fully automatic lines?
▼| Line Type | Capacity | Cost Range | Best For |
|---|---|---|---|
| Manual | 30-80 pcs/h | $30K-80K | Multi-product, low volume |
| Semi-Auto | 100-200 pcs/h | $150K-350K | Medium volume, standard shapes |
| Fully Auto | 200-500+ pcs/h | $400K-1M+ | High volume, dedicated products |
What's the difference between electric and gas curing ovens?
▼⚡ Electric Oven
- • Cost: $0.15-0.25/unit
- • Warmup: 30-60 min
- • No combustion risk
- • No outdoor venting
- • Best for: Clean, precise control
🔥 Gas Oven
- • Cost: $0.08-0.12/unit
- • Warmup: 10-20 min
- • Requires venting
- • More maintenance
- • Best for: High volume, budget-conscious
Choose based on: Production volume, local energy costs, ventilation setup, reliability needs.
Can I upgrade my existing production line with powder coating?
▼Yes, absolutely. We offer three retrofit approaches:
- 1. Standalone System – Install spray booth + oven separately, no integration with existing line
- 2. Modular Integration – Connect to existing conveyor; customize connection points
- 3. Full Redesign – Integrate seamlessly for optimized workflow
Retrofit Timeline: 4-8 weeks vs 8-12 weeks for new line
Cost Premium: 20-30% for custom integration
Space Requirement: Typically 80-150m² additional floor area
Success Rate: 95%+ with adequate space
📊 Capacity & Planning
How do I calculate the production capacity I need?
▼Simple Formula:
Example: 200 pcs/day ÷ 8 hours ÷ 1.3 buffer = 19 pcs/h minimum
→ Add 30-50% buffer for: peak demand, color changes, maintenance downtime
→ Target capacity: 25-30 pcs/h → Select equipment rated for 40-50 pcs/h
How much factory floor space do I need?
▼Small Line (Manual, 50 pcs/h):
40-60 m² | $40-80K investment
Medium Line (Semi-auto, 150 pcs/h):
80-120 m² | $150-350K investment
Large Line (Fully auto, 300+ pcs/h):
150-250 m² | $400K-1M+ investment
Layout Breakdown: Pretreatment (15-25m²) + Spray booth (20-40m²) + Curing oven (15-25m²) + Conveyor (variable) + Buffer zones (20-30m²)
Can the same line handle different colors and product types?
▼Yes, with conditions:
Same Product + Different Colors
Add powder recovery system + color changeover procedure (5-15 min per change). Cost: +$50K-100K. Throughput loss: 10-15%.
Different Product Types
May need fixture changes. Recommend 2-3 dedicated fixture sets (~$5K each). Changeover time: 20-45 min.
💡 Best Practice: Dedicate line to 2-3 product families max to minimize changeover and maintain quality.
💰 Cost & Investment
What's the typical cost of a powder coating line?
▼Total 1st-Year Investment Breakdown:
- 📦 Equipment: Manual $30-80K | Semi-auto $150-350K | Fully auto $400K-1M+
- 🔧 Installation/Commissioning: $20K-80K (depends on complexity)
- 👥 Training/Support: $5K-15K
Total Range: $55K - $1M+ depending on line type
✓ We offer 24-48 month payment plans
✓ ROI typically achieved in 18-36 months
What are the main operating costs?
▼Cost per unit (100-200 pcs/h line):
🎨 Powder material: $0.50-1.50/pcs (15-30% of total)
⚡ Electricity/gas: $0.20-0.40/pcs (oven + spray + compressor)
👷 Labor: $0.30-0.80/pcs (operator + maintenance)
🔧 Maintenance/parts: $0.10-0.30/pcs (filter, gun, spare parts)
Total: $1.10-3.00/pcs
💡 Optimization: Invest in powder recovery system → reduce waste 20-30%, save $0.20-0.40/pcs
How long until I achieve ROI?
▼High-Volume Producer (400+ pcs/day)
📅 12-18 months ROI | Profit margin: ~$0.50/pcs
Medium-Volume (150-300 pcs/day)
📅 18-30 months ROI | Profit margin: ~$0.40/pcs
Low-Volume (50-100 pcs/day)
📅 30-48 months ROI | Profit margin: ~$0.30/pcs
Variables: Product profit margin, capacity utilization rate, powder cost savings, labor reduction
💼 Real Case: Furniture factory achieved 14-month ROI with 85% capacity utilization
🚀 Delivery & Support
What's the typical project timeline?
▼Typical 12-16 week timeline breakdown:
- 1. Design & Engineering: 2-3 weeks (CAD, layout, BOM)
- 2. Equipment Manufacturing: 6-8 weeks (fabrication, assembly, QC)
- 3. Shipping/Transportation: 2-4 weeks (depends on distance & customs)
- 4. On-Site Installation: 1-2 weeks (assembly, electrical, pneumatic)
- 5. Commissioning & Training: 3-5 days (dry run, test spray, staff training)
💡 Expedited Option: +15% cost for 2-week acceleration
Do you provide on-site installation and staff training?
▼Yes, 100% of projects include:
- ✓ On-Site Team: 1-3 weeks (complexity-dependent)
- ✓ Equipment Assembly: Full electrical/pneumatic connections + safety checks
- ✓ Dry-Run Testing: Spray parameter optimization + trial operation
- ✓ Staff Training: 2-5 operators trained on daily operation, maintenance, troubleshooting
- ✓ Post-Commissioning Support: Remote 24/7 + on-site revisits available
- ✓ Global Coverage: Established support networks in 50+ countries
What after-sales support do you provide?
▼Comprehensive Support Package:
- 📋 Warranty: 1-3 years comprehensive (equipment + labor)
- ☎️ Technical Support: 24/7 phone/email/WhatsApp + remote troubleshooting
- 🔧 Spare Parts: Genuine parts (2-3 day delivery), discount program available
- 🔍 Maintenance Visits: Annual preventive maintenance recommended ($2K-5K/visit)
- ⬆️ Upgrade Support: Line capacity expansion or technology upgrades
- 📚 Documentation: Operation manuals + training videos in multiple languages
Still have questions? Our engineers are ready to help.
The Complete Powder Coating Buyer's Guide
Go from "completely new to powder coating" to "confident purchasing decision" with our comprehensive guide covering process, equipment selection, capacity planning, cost analysis, and project delivery.
10 Detailed Sections
From process fundamentals to real-world case studies
Data-Driven Analysis
Equipment comparisons, cost breakdowns, ROI calculations
Real Case Studies
3-5 industry applications with proven results
Practical Toolkits
Capacity calculators, layout templates, decision matrices
Guide Structure (10 Sections):
- ✓ Powder Coating Fundamentals vs Liquid Paint
- ✓ The 5-Step Process Explained with Diagrams
- ✓ Pretreatment Systems: Selection & Optimization
- ✓ Spray Booth & Powder Recovery Technology
- ✓ Curing Oven Selection: Electric vs Gas
- ✓ Automation Levels & Capacity Planning
- ✓ Factory Space & Layout Design
- ✓ Investment Cost & ROI Analysis
- ✓ Project Delivery & Timeline
- ✓ Multi-Industry Case Studies
✓ Used by 500+ factories worldwide
Real factory implementations • Real cost savings • Real results
Why Choose Ketu for Your Powder Coating Solution?
20+ years of expertise, 500+ global customers, 1000+ successful projects installed and commissioned worldwide.
20+ Years Experience
Deep expertise in design, manufacturing, installation, commissioning, and after-sales service for powder coating equipment across diverse industries.
500+ Global Customers
Proven track record across 50+ countries with satisfied customers in metal furniture, electrical equipment, aluminum profiles, and more.
In-House Manufacturing
Complete control over quality and functionality. Every spray booth, oven, and conveyor system is custom-designed and built to your exact specifications.
Global Support Network
Established installation and technical support teams in 50+ countries. On-site commissioning and 24/7 remote assistance available.
Energy Efficient
Advanced automation and environmental systems reduce energy consumption and dust emissions. Lower operating costs, higher productivity.
Customized Solutions
Tailor-made equipment and processes designed specifically for your products, production goals, and factory constraints.
1000+
Projects Completed
98%
Customer Satisfaction
10+
Year Avg Retention
50+
Countries Served
Ready to Start Your Powder Coating Project?
Now that you understand the complete process, let our engineers design the perfect solution for your factory.
✓ Free consultation • ✓ Custom proposal • ✓ No obligation
📋
Free Assessment
We'll analyze your products, production needs, and factory space to recommend the ideal line configuration.
💰
Accurate Quotation
Detailed pricing breakdown including equipment, installation, training, and support costs.
🚀
Fast Timeline
Dedicated project manager. Typical response within 24 hours. Commissioning in 12-16 weeks.
Get Your Customized Solution
✓ We'll review your requirements and send you a customized proposal within 48 hours.
✓ Direct contact from our engineering team. No sales pressure, no obligation.
Prefer to chat now?
Why Manufacturers Trust Ketu for Powder Coating Solutions
20+ years of expertise, in-house manufacturing, and comprehensive support for your coating line success
20+ Years of Industry Leadership
Two decades of expertise in designing, manufacturing, and installing powder coating equipment across 10+ industries. Our deep knowledge translates to better solutions for your factory.
- ✓ 500+ successful installations worldwide
- ✓ 98% customer satisfaction rate
- ✓ 10+ year average customer retention
100% In-House Manufacturing
We control every aspect of quality and functionality. Complete manufacturing control means superior equipment consistency and faster customization for your specific needs.
- ✓ Full design and engineering team
- ✓ Advanced manufacturing equipment
- ✓ Rigorous quality control at every stage
Lifetime Technical Support
From commissioning to daily operations, we're here for you. Our global support network ensures fast response times and expert troubleshooting whenever you need it.
- ✓ 24/7 technical phone & email support
- ✓ On-site installation and staff training
- ✓ Spare parts availability and maintenance
Low Energy Consumption & Eco-Friendly
Advanced automation and optimized heating systems reduce energy costs by 20-30% compared to standard lines. Meet strict environmental standards with 99.99% dust emission control.
Fully Customized Solutions
Every factory is unique. We design coating lines tailored to your specific product, production volume, space constraints, and budget. No one-size-fits-all approach.
Industry Certifications & Quality Commitments
Our equipment meets the highest international standards and certifications
ISO 9001:2015
Quality Management System - Certified
ISO 14001:2015
Environmental Management - Certified
CE Marking
European Safety Standards - Certified
Industry-Specific
Furniture, Electrical, Automotive Standards
Our Quality Commitments
Rigorous Testing Protocol
Every equipment unit undergoes comprehensive pre-shipment testing including spray pattern validation, temperature uniformity, and structural integrity checks.
Premium Materials Only
100% virgin raw materials used throughout manufacturing. No recycled or inferior substitutes. Stainless steel components for long-term durability.
3-Year Equipment Warranty
Comprehensive coverage on all parts and labor. Extended warranty options available. Proactive maintenance program included.
Continuous Improvement
Our R&D team constantly innovates and improves our coating line designs. Regular software updates and performance enhancements provided at no cost.
Ready to Transform Your Production?
Now that you understand the complete powder coating process and our solutions, let's design the perfect line for your factory.
Receive a customized equipment proposal
Free consultation and technical assessment
Direct contact from our senior engineers
Trusted by Leading Manufacturers Worldwide
Have questions before reaching out? Check our comprehensive FAQ or download our complete buyer's guide.
Let's Build Your Perfect Coating Solution
Our engineering team is ready to analyze your needs and design a custom powder coating line that maximizes efficiency, quality, and ROI for your factory.
Quick Form Submission
Fill out our simple form with your basic requirements. Expect a personalized proposal within 48 hours.
WhatsApp Chat
Instant messaging with our sales team. Perfect for quick questions or real-time consultations.
Chat Now on WhatsAppEmail or Phone
Reach us directly via email or phone for detailed discussions with our senior engineers.
About Ketu
Leading manufacturer of electrostatic powder coating equipment in China. 20+ years of expertise serving factories worldwide.
Solutions by Industry
© 2026 Foshan Nanhai Ketu Machinery Equipment Co., Ltd. All rights reserved.
English
German
Vietnamese
French
