Automatic Powder Coating Equipment
KETU provides turnkey automatic powder coating equipment for manufacturers that need stable coating quality, higher production capacity, efficient powder recovery, reliable curing performance and centralized PLC control.
- ✓Turnkey automatic powder coating linePowder booth, recovery system, curing oven, conveyor and PLC control.
- ✓Customized equipment size and layoutEngineered around workpiece size, output, process route and factory space.
- ✓45–90 day production cycleSchedule depends on line scale, automation level and confirmed drawings.
- ✓Delivery, installation and commissioning supportProject support from equipment manufacturing to production start.
- ✓12-month warranty and lifetime serviceSpare parts, maintenance guidance, troubleshooting and upgrade support.
Automatic Powder Coating Line Engineering Design
KETU supports automatic powder coating equipment projects with production line design drawings, 3D layout models, equipment configuration planning and complete coating workshop engineering.
Automatic Powder Coating Production Line Design Drawing
Automatic Powder Coating Production Line 3D Layout Model
①Spray pretreatment
②Powder coating booth
③Large cyclone recovery system
④Secondary filter recovery unit
⑤Powder supply center
⑥Curing oven system
⑦Conveyor chain
⑧Chain tensioner
⑨Chain drive system
Every automatic powder coating production line is customized according to workpiece output, workpiece size, coating quality, pretreatment method, factory layout and energy conditions. Before manufacturing, KETU can provide clear design drawings and 3D layout references so customers can confirm the complete process flow with confidence.
Choose the Right Automatic Powder Coating Line Configuration
KETU designs each powder coating line according to your workpiece size, production capacity, automation level, heating energy, factory layout and coating process. The system can be configured as a manual line, automatic line, robot-assisted line or full turnkey coating solution.

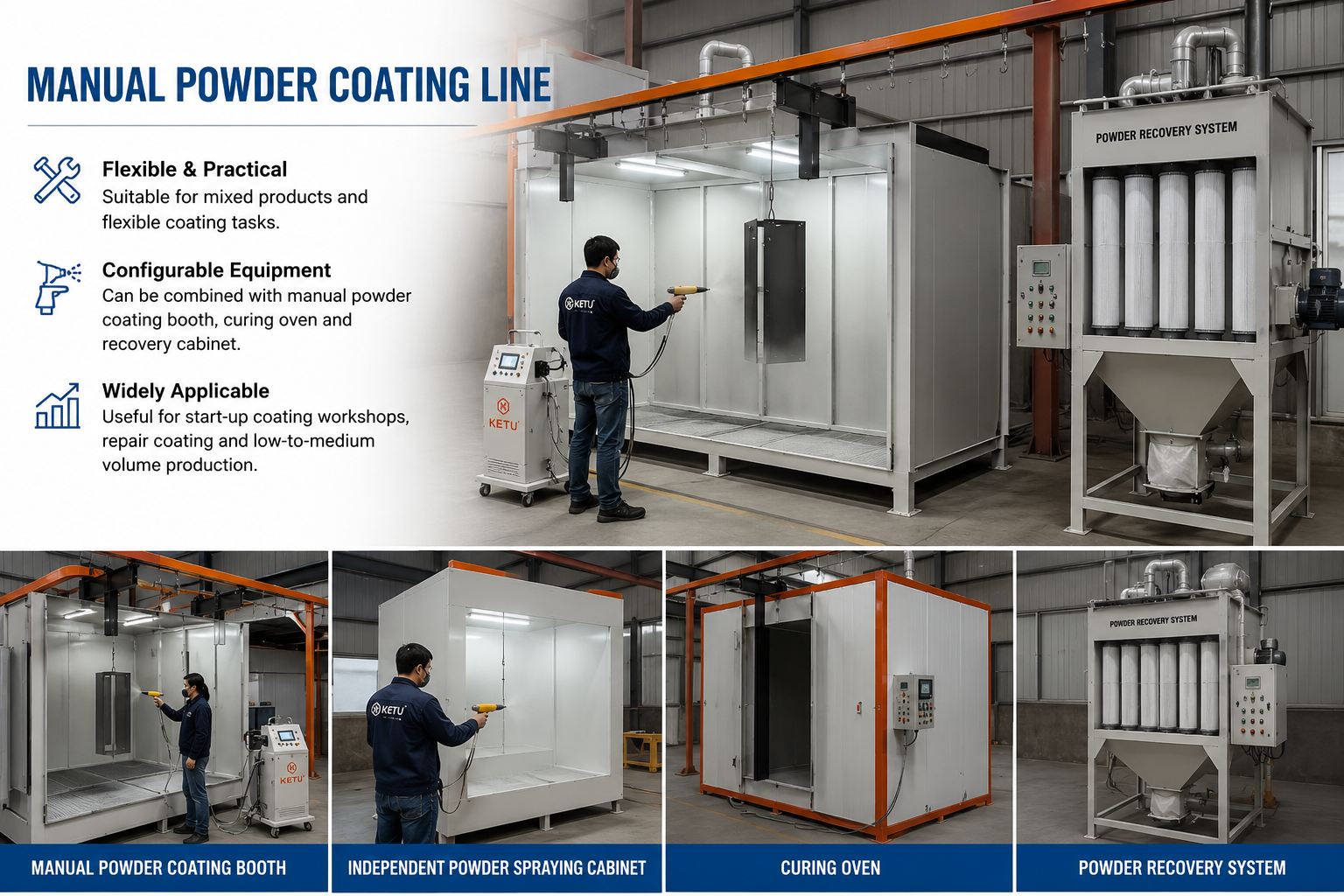

Manual Powder Coating Line
Manual powder coating lines are suitable for factories that need flexible operation, smaller production batches, mixed workpieces or lower automation investment. KETU can configure manual powder coating booths, independent powder spraying cabinets, curing ovens, powder recovery systems and basic conveying support according to the production site.
- Suitable for mixed products and flexible coating tasks.
- Can be combined with manual powder coating booth, curing oven and recovery cabinet.
- Useful for start-up coating workshops, repair coating and low-to-medium volume production.
Automatic Powder Coating Line
Automatic powder coating lines are designed for continuous production, stable coating quality and higher output. The line can integrate pretreatment, drying, electrostatic powder coating, powder recovery, curing, cooling, inspection and conveyor control into one coordinated production process.
- Suitable for factories that need stable output and repeatable coating quality.
- Can include conveyor system, powder coating booth, curing oven and electrical control system.
- Layout, capacity, line size, heating energy and automation level can be customized.

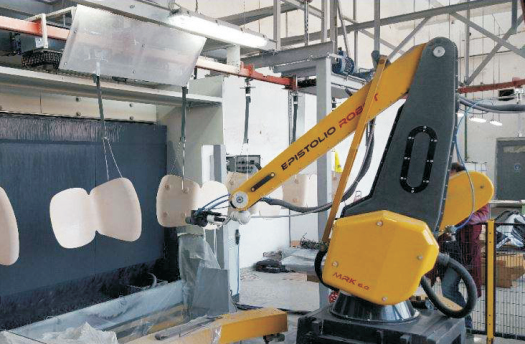

Robot Arm Powder Coating Line
KETU can integrate robot arms into automatic powder coating systems when the workpiece shape, production rhythm or coating consistency requires higher automation. Robot arm spraying can work together with powder coating booths, powder supply systems, recovery systems, curing systems and PLC control.
- Suitable for automatic powder coating lines that require robotic spraying support.
- Can be matched with electrostatic powder coating booth and powder supply center.
- Helps improve process repeatability when the project requires higher automation.
Turnkey Customized Coating Solution
KETU provides turnkey coating solutions from process layout and equipment configuration to production, delivery, installation, commissioning and service. The system can be customized around pretreatment, conveying, spray booth, curing oven, temperature control, automation control, heating energy, capacity and factory layout.
- One-stop design for complete powder coating production line projects.
- Customized process layout, conveying system, spray booth and curing system.
- Dedicated engineer support for project communication and technical configuration.
Automatic Powder Coating Equipment Application Scenarios
KETU powder coating lines can be customized for different industries, including storage and warehousing, furniture, home appliances, machinery, elevators, building materials, electronic products, pet products, advertising displays, hardware and surface treatment factories.
Storage and Warehousing Industry
Customized powder coating lines for storage racks, warehouse structures and metal storage products that require stable surface protection, durable coating and efficient batch production.
Furniture Industry
Powder coating equipment for metal furniture components, office furniture, shelves, frames and furniture hardware that require consistent color, smooth finish and flexible production configuration.
Home Appliance Industry
Automatic powder coating lines for appliance shells, metal panels and home appliance components that require stable appearance, coating adhesion and repeatable production quality.
Machinery Industry
Customized coating lines for machinery shells, equipment housings and mechanical parts that need durable surface protection, stable curing and production layouts matched to large or mixed workpieces.
Elevator Industry
Powder coating solutions for elevator accessories and lift manufacturing components, with line layouts designed around workpiece size, finish requirement and production capacity.
Building Materials Industry
Automatic powder coating systems for architectural metal parts, aluminum ceilings, prefabricated house steel structures, lighting components and other building material products.
Electronic Products Industry
Powder coating lines for electronic product shells, door lock housings, audio parts, navigation radiators and related metal components that require controlled coating quality and stable curing.
Pet Products Industry
Electrostatic powder coating lines for pet cages and metal pet products, supporting pretreatment, powder coating, curing and batch production requirements.
Advertising, Hardware and Surface Treatment
Coating line solutions for advertising frames, display equipment, hardware products and surface treatment factories that need customized layouts, coating booths, recovery systems and curing equipment.
Core Equipment Modules for a Complete Powder Coating Production Line
KETU automatic powder coating equipment can be configured with powder coating booth, powder recovery system, conveyor system, pretreatment system, curing oven, powder supply center, electrical control system and robot arm. Each module is matched to your workpiece size, coating capacity, automation level and factory layout.
Powder Coating Robot Arm

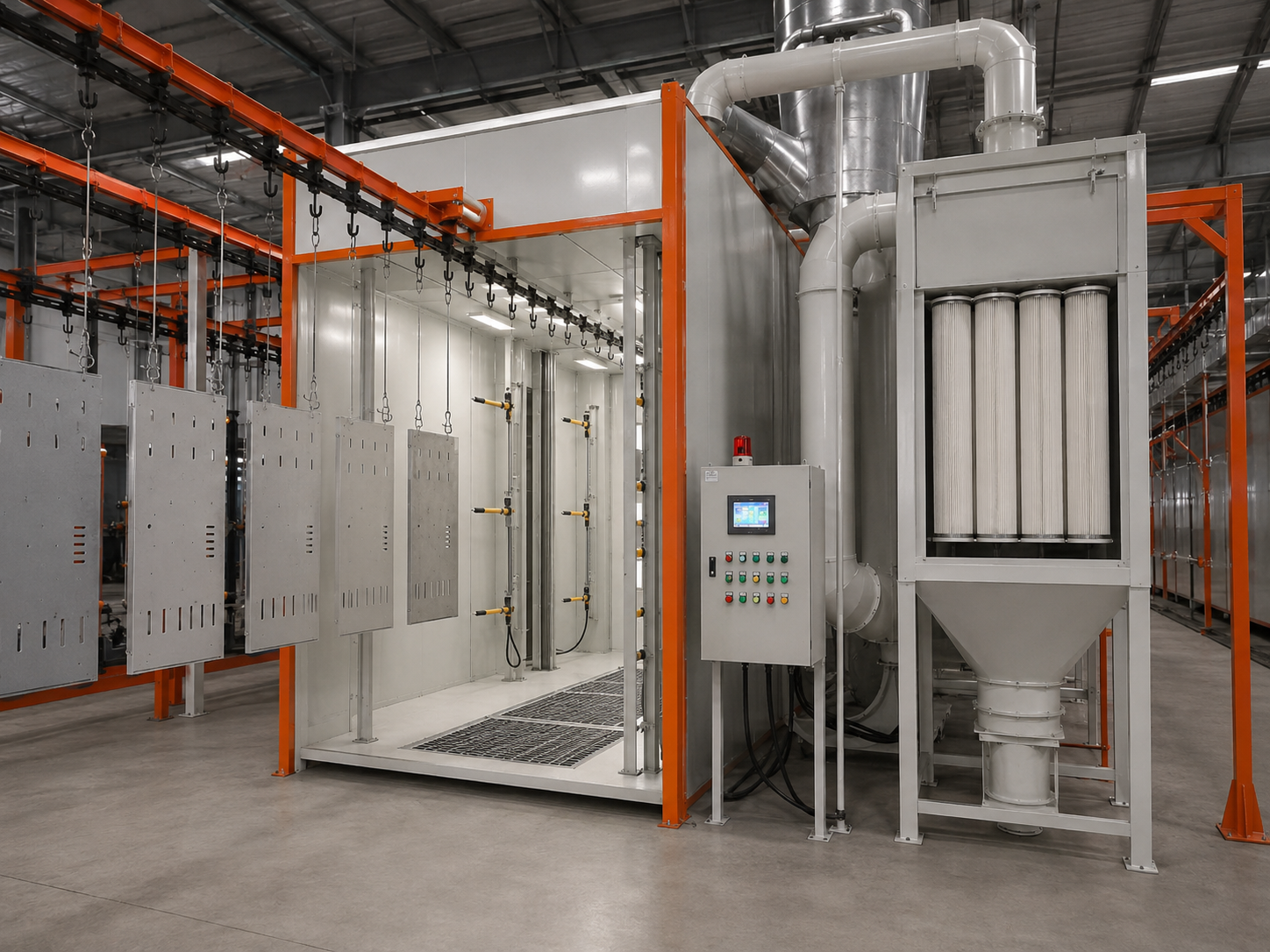

Powder Coating Booth
Powder Coating Curing Oven

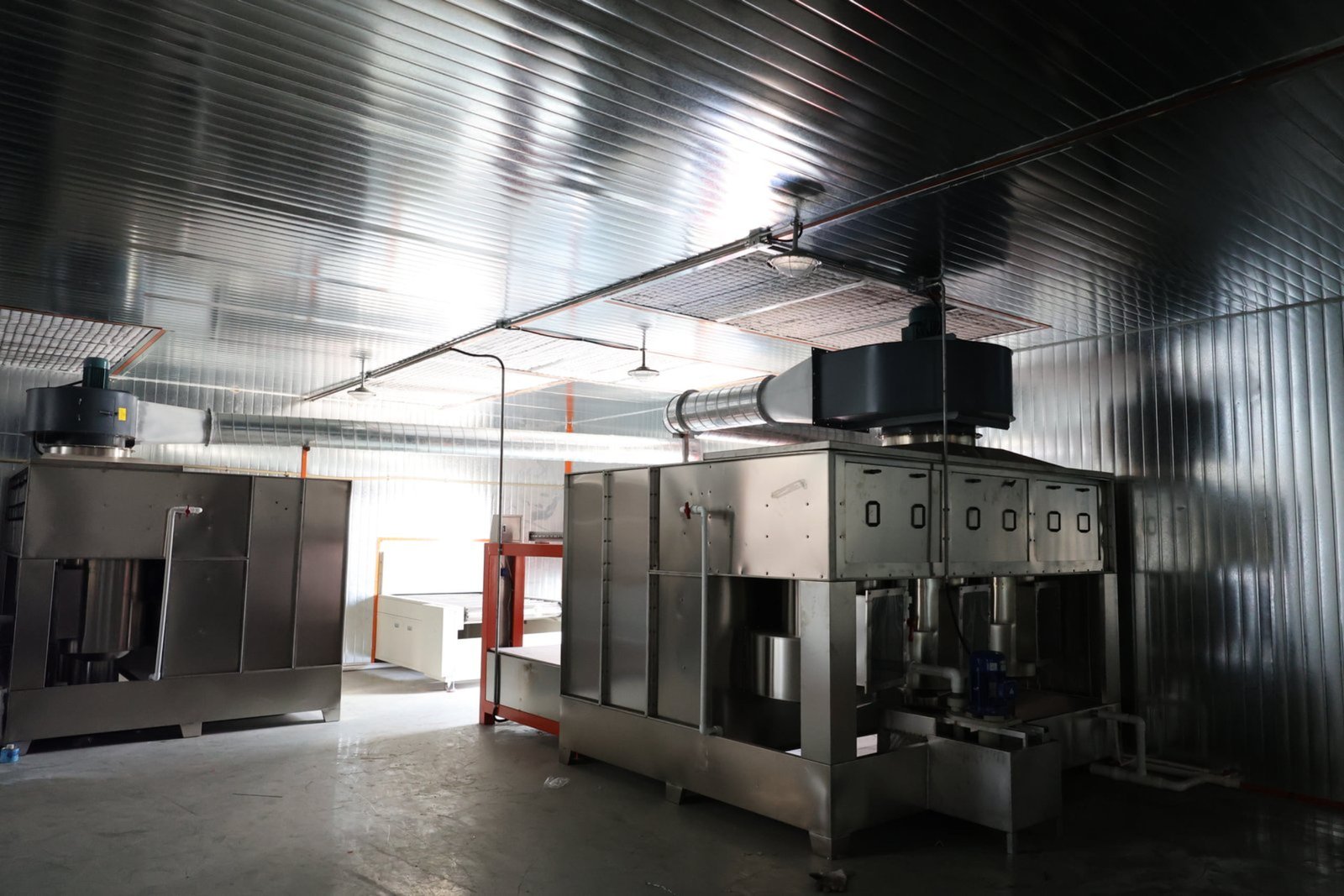

Powder Coating Conveyor System
Powder Coating Pretreatment System
Electrical Control System

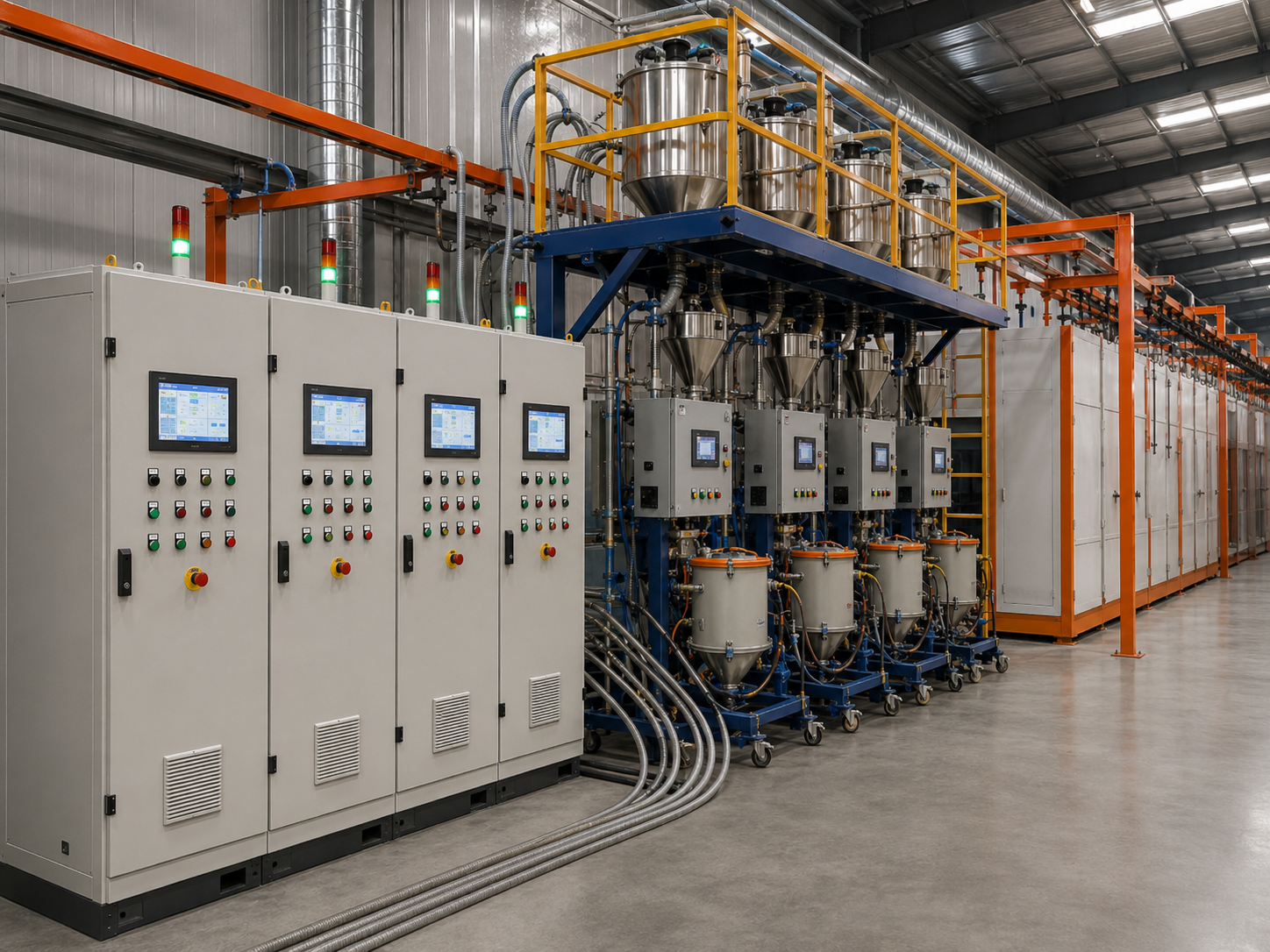

Large Cyclone Recovery System
Powder Supply Center
Why Factories Choose Automatic Powder Coating Equipment
Automatic systems are built for stable quality, higher output, lower powder waste and better long-term production control.
Higher Production Efficiency
Continuous conveyor operation reduces waiting time between process steps and helps factories improve coating output without relying only on manual labor.
- Continuous production rhythm.
- Less manual handling between coating stages.
- Better match for mass production and repeated products.

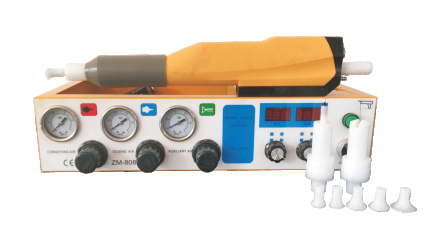

More Stable Coating Quality
Automatic spray guns, robot arms, controlled conveyor speed and stable curing conditions help improve film thickness, surface finish and repeatability.
- Reduced operator variation.
- More consistent coating thickness.
- Better quality control for medium and high-end products.
Higher Powder Utilization
Large cyclone recovery and secondary filtration help recover overspray powder, reduce waste and support cleaner workshop operation.
- Improves powder recycling efficiency in batch production.
- Reduces powder waste and long-term operating cost.
- Supports cleaner, more sustainable coating production.

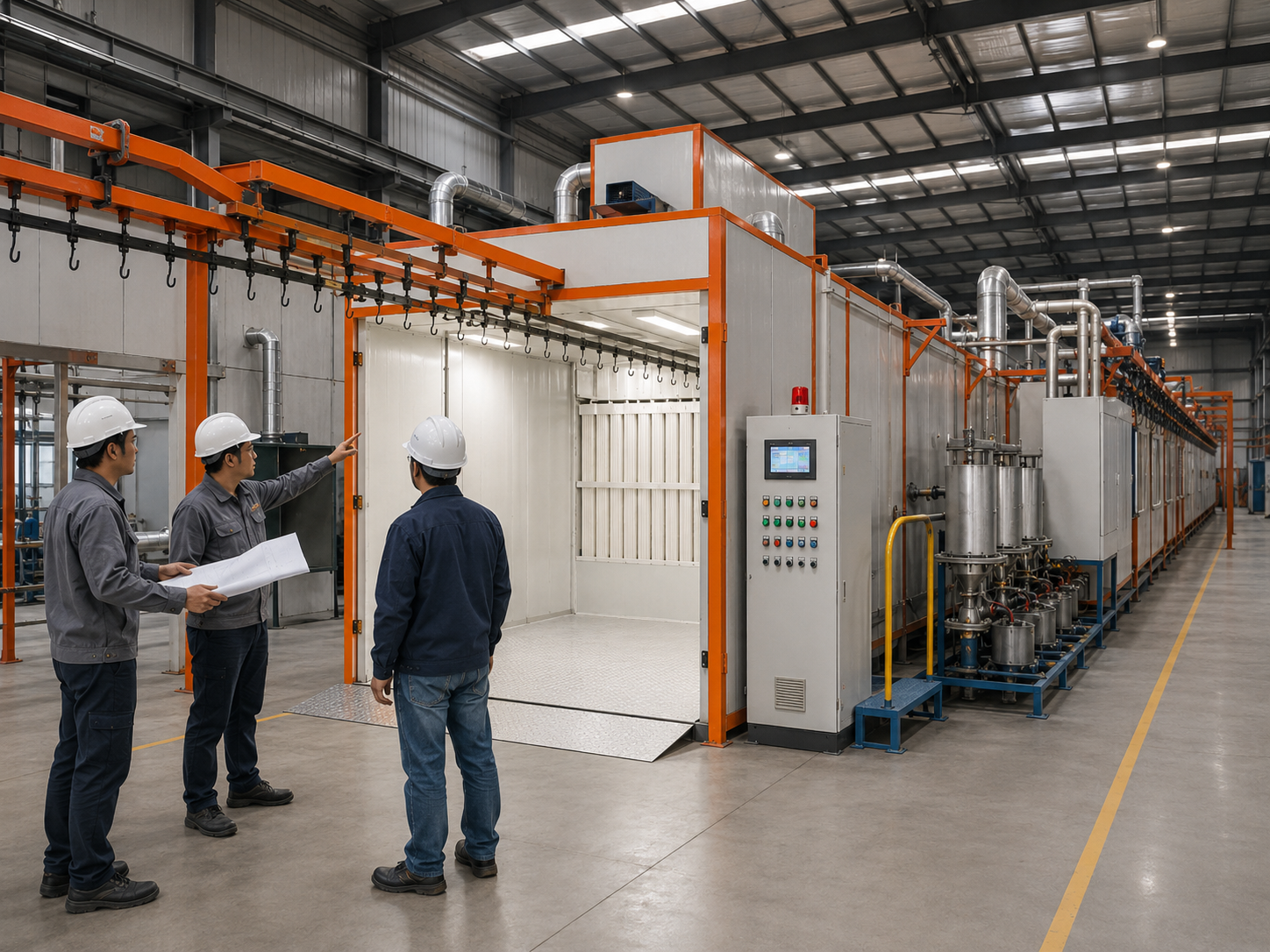

Integrated PLC Production Control
The electrical control system can coordinate conveyor speed, spray parameters, curing temperature, alarms and equipment status for smoother line operation.
- Centralized control for multiple equipment modules.
- Better process monitoring and production repeatability.
- Supports future automation upgrades and capacity expansion.
Manual vs Semi-Automatic vs Fully Automatic Powder Coating Line
Compare different coating line configurations and choose the automation level that matches your output, workpiece type, labor plan and investment strategy.
| Item | Manual Line | Semi-Automatic Line | Fully Automatic Line |
|---|---|---|---|
| Best For | Small batches, many product types | Medium output, partial automation | High output, repeated products |
| Labor | High operator dependence | Moderate operator involvement | Lower manual dependence |
| Quality Stability | Depends on operator skill | Improved process stability | Best repeatability and control |
| Powder Recovery | Basic or optional | Cyclone / filter optional | Large cyclone + secondary recovery recommended |
| Investment | Lower initial cost | Balanced cost and output | Higher investment, better long-term efficiency |
| Upgrade Path | Add booth, oven, conveyor | Add automatic guns and PLC | Add robot arms, data monitoring and faster color change |
Free Design and Equipment Ordering Calculation
Share your workpiece data and factory conditions. KETU can prepare a suitable automatic powder coating line configuration, including process layout, conveying system, spray booth, curing oven, temperature control, automation control, heating energy, line size and capacity.
Send Your Production Data — We Help Calculate the Line Plan
We can calculate the recommended equipment size, conveyor speed, oven capacity, powder booth type, recovery system and estimated configuration according to your real production conditions.
Data We Need
- Factory length, width, height and available installation area.
- Workpiece maximum size, minimum size and average weight.
- Daily output, monthly output and working hours per shift.
- Workpiece material and pretreatment requirement.
- Color quantity and color change frequency.
- Heating energy: natural gas, electricity, diesel or other source.
- Target coating quality: indoor, outdoor, corrosion resistance or decorative finish.
Quick Equipment Calculation Form
From Requirement Confirmation to Production Start
Automatic powder coating equipment is a full production system. A clear project process helps reduce design mistakes, installation delays and equipment mismatch.
Step 1: Send Requirements
Send workpiece drawings, production output, factory layout, coating quality target and energy conditions.
Step 2: Technical Design
We design the line layout, process route, equipment list, booth size, oven size, recovery system and conveyor route.
Step 3: Drawing Confirmation
Confirm automatic powder coating production line design drawing, 3D model, equipment dimensions and installation details.
Step 4: Manufacturing
Production cycle usually takes 45–90 days depending on project scale, equipment configuration and customization level.
Step 5: Delivery and Installation
Equipment is delivered to site. Professional installation support, commissioning and operator training can be arranged.
Step 6: Warranty and Lifetime Service
12-month warranty and lifetime technical service support for maintenance, spare parts and future upgrades.
How to Choose Automatic Powder Coating Equipment
Automatic powder coating equipment should be selected as a complete production system. The powder booth, recovery system, curing oven, conveyor, pretreatment and control system must match each other.
Confirm Workpiece Size
Maximum passing size decides booth opening, oven size, conveyor clearance and factory layout.
Calculate Capacity
Daily output, hanging pitch, conveyor speed and curing time must be calculated together.
Choose Pretreatment
Spray pretreatment, sandblasting, shot blasting or manual preparation should match the product material.
Select Recovery System
Large cyclone and secondary filter recovery are recommended for higher powder utilization and cleaner production.
Match Curing Oven
Oven length, heat source, fan capacity and insulation decide the final coating quality and production rhythm.
Plan Automation Level
Choose automatic guns, robot arms, manual touch-up or mixed configuration according to product complexity.
Check Installation Support
Professional installation and commissioning help the production line start smoothly after delivery.
Review Long-Term Cost
Compare equipment cost with powder consumption, labor, energy, maintenance and future upgrade cost.
Automatic Powder Coating Equipment FAQ
Answers to common questions about automatic powder coating equipment, turnkey line design, powder recovery, curing oven selection, installation, production cycle and after-sales service.
What equipment is included in an automatic powder coating production line?
Can the equipment size be customized?
What is the usual production cycle?
Do you provide installation?
Can robot arms be added to the line?
How do I know which line type is suitable?
What information should I send before quotation?
Is there warranty service?
Need an Automatic Powder Coating Equipment Layout?
Send your factory dimensions, workpiece size, output target, material, color-change frequency and coating standard. KETU can prepare a suitable automatic powder coating production line design plan.
Request Automatic Powder Coating Equipment Plan
Tell us your workpiece size, material, output target, color-change frequency, factory dimensions and required automation level.
