Independent Powder Spraying Cabinet
The Independent Powder Spraying Cabinet is a compact manual electrostatic powder coating booth designed for small-batch production, sample coating, repair coating, hardware parts, metal accessories, and workshops that need a cost-effective powder spraying solution.
Core system advantages:
- Simple structure with compact booth body for limited workshop space.
- Cost-effective powder coating solution for low to medium automation needs.
- Manual spray gun operation gives users flexible control over different workpieces.
- Powder recovery system collects unattached powder and helps reduce waste.
- Available in metal plate, stainless steel plate, PP plate, or customized material structures.
Compact Independent Powder Spraying Cabinet for Manual Coating Work
The independent cabinet is designed for practical powder coating operations where simple structure, easy operation, powder recovery, and lower investment are more important than high automation.

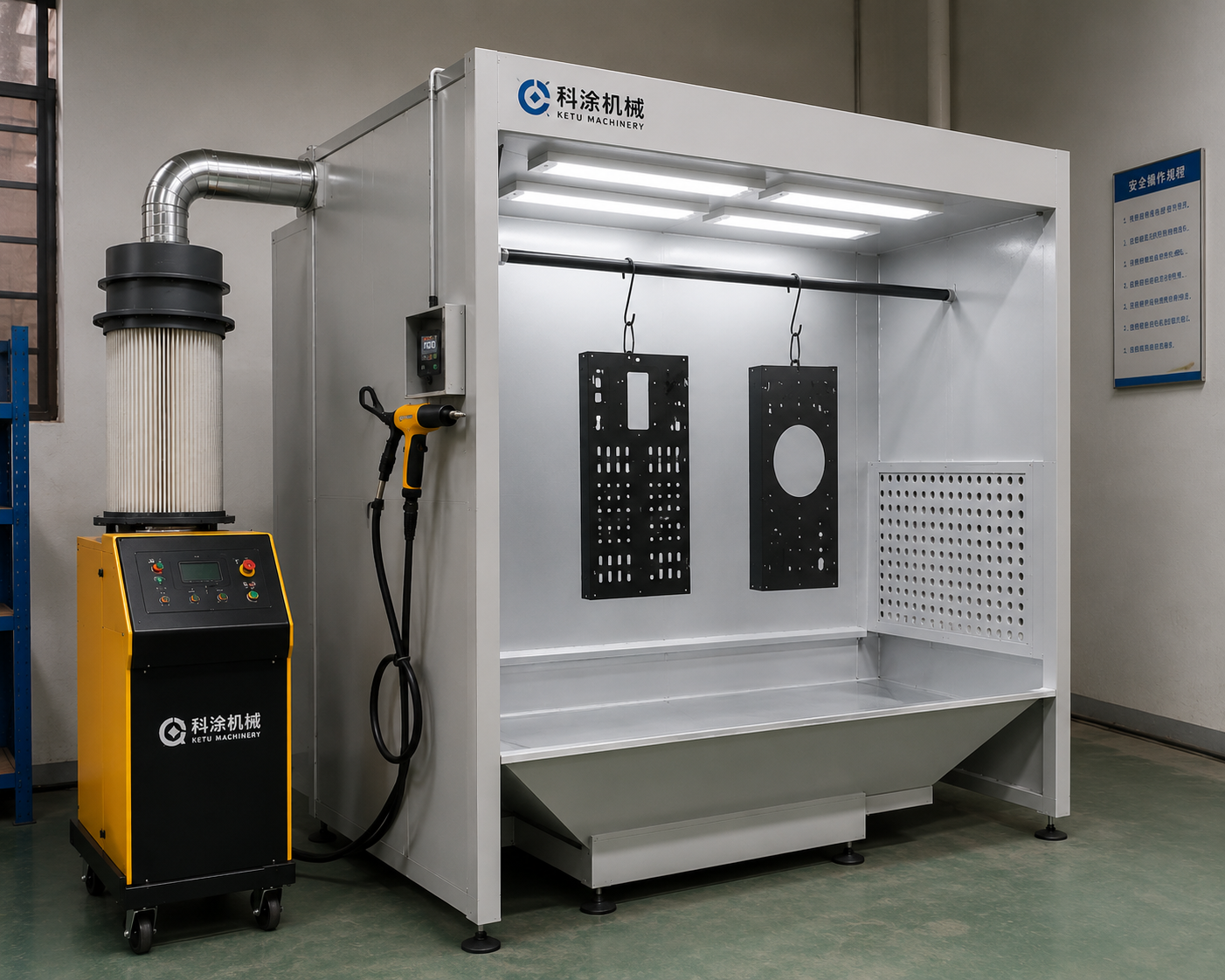

Compact Structural Design for Limited Space
Independent powder spraying cabinets are usually designed with a compact booth body, making them convenient for installation and use in small workshops, sample rooms, repair stations, and low-volume production areas.
The structure can be made with metal plates, stainless steel plates, or PP plates according to usage requirements. This helps balance durability, cleaning convenience, corrosion resistance, and budget.
- Compact booth structure for small production spaces
- Metal plate, stainless steel, or PP plate material options
- Simple body design for easier installation and operation
- Suitable for factories that do not need high automation

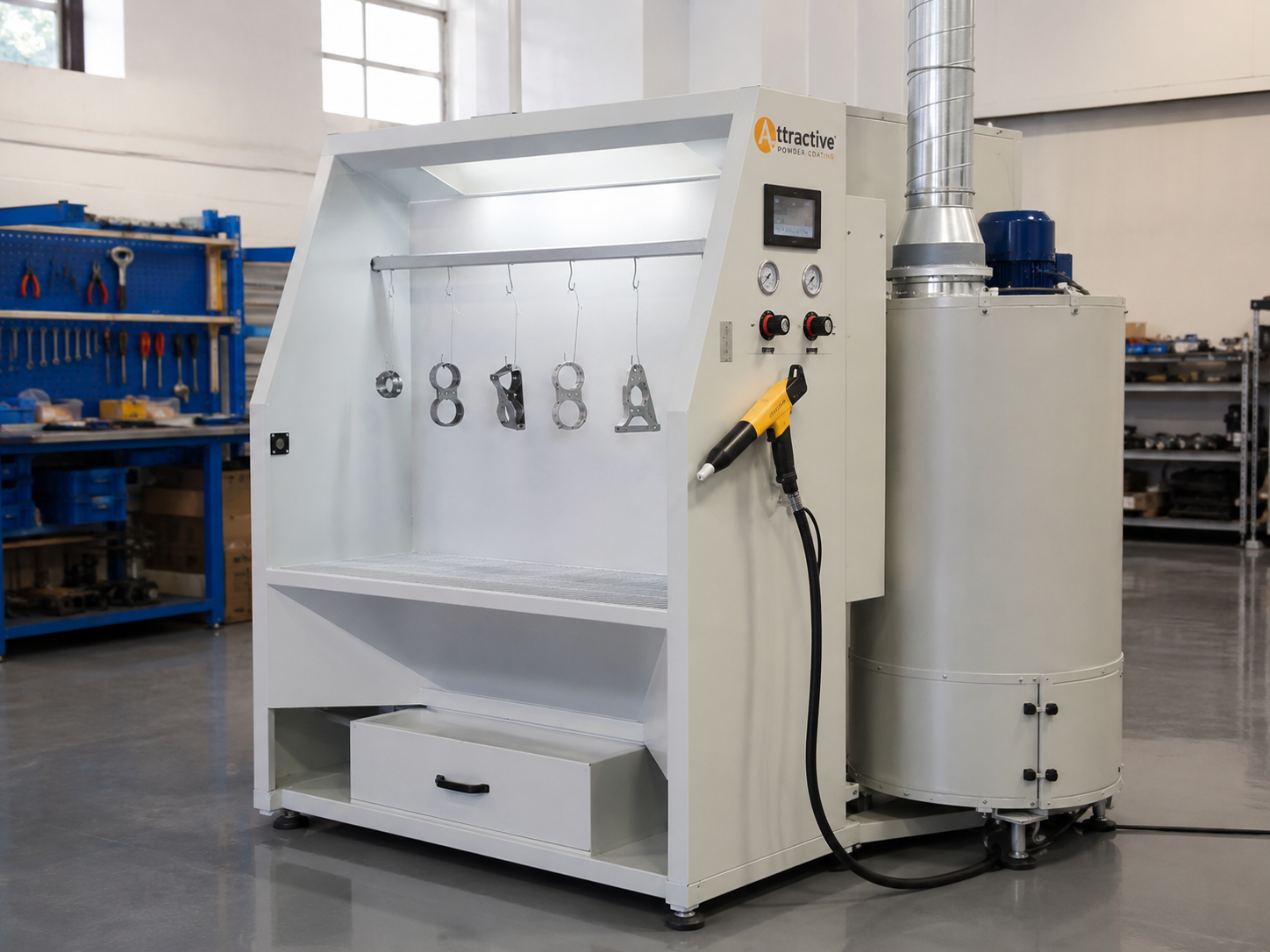

Manual Electrostatic Powder Spraying Principle
The operator sprays powder coating onto the workpiece surface through a manual spray gun. The spray gun is usually equipped with an electrostatic generator, which charges powder particles during spraying.
With electrostatic adsorption, the charged powder attaches more evenly to the grounded workpiece surface, improving spraying effect compared with non-electrostatic powder application.
- Manual spray gun operation for flexible coating control
- Electrostatic generator charges powder particles
- Grounded workpieces attract powder more evenly
- Suitable for small-batch and mixed-product production
Powder Recovery System Reduces Waste
Simple powder spraying cabinets are usually equipped with a powder recovery system. During spraying, powder that does not attach to the workpiece can be collected and recycled to improve utilization.
This recovery function helps reduce material waste, improve workshop cleanliness, and lower operating cost for small and medium powder coating jobs.
- Collects unattached powder during manual spraying
- Improves powder utilization and reduces waste
- Helps maintain a cleaner working area
- Supports cost-effective powder coating production
Core Benefits of Independent Powder Spraying Cabinet
These advantages make the cabinet suitable for small factories, sample production, hardware coating, repair coating, and low-investment powder coating workshops.

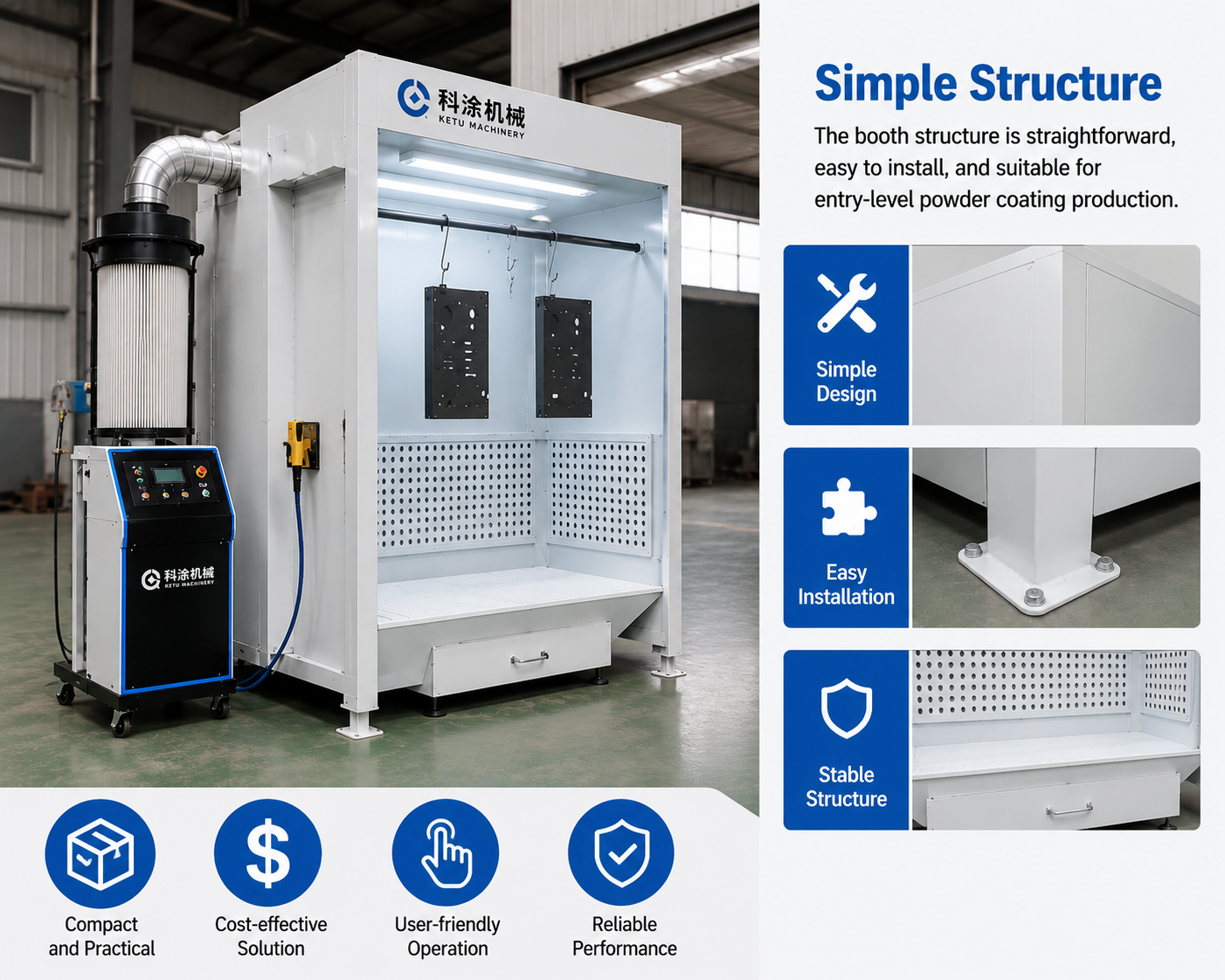

Simple Structure
The booth structure is straightforward, easy to install, and suitable for entry-level powder coating production.

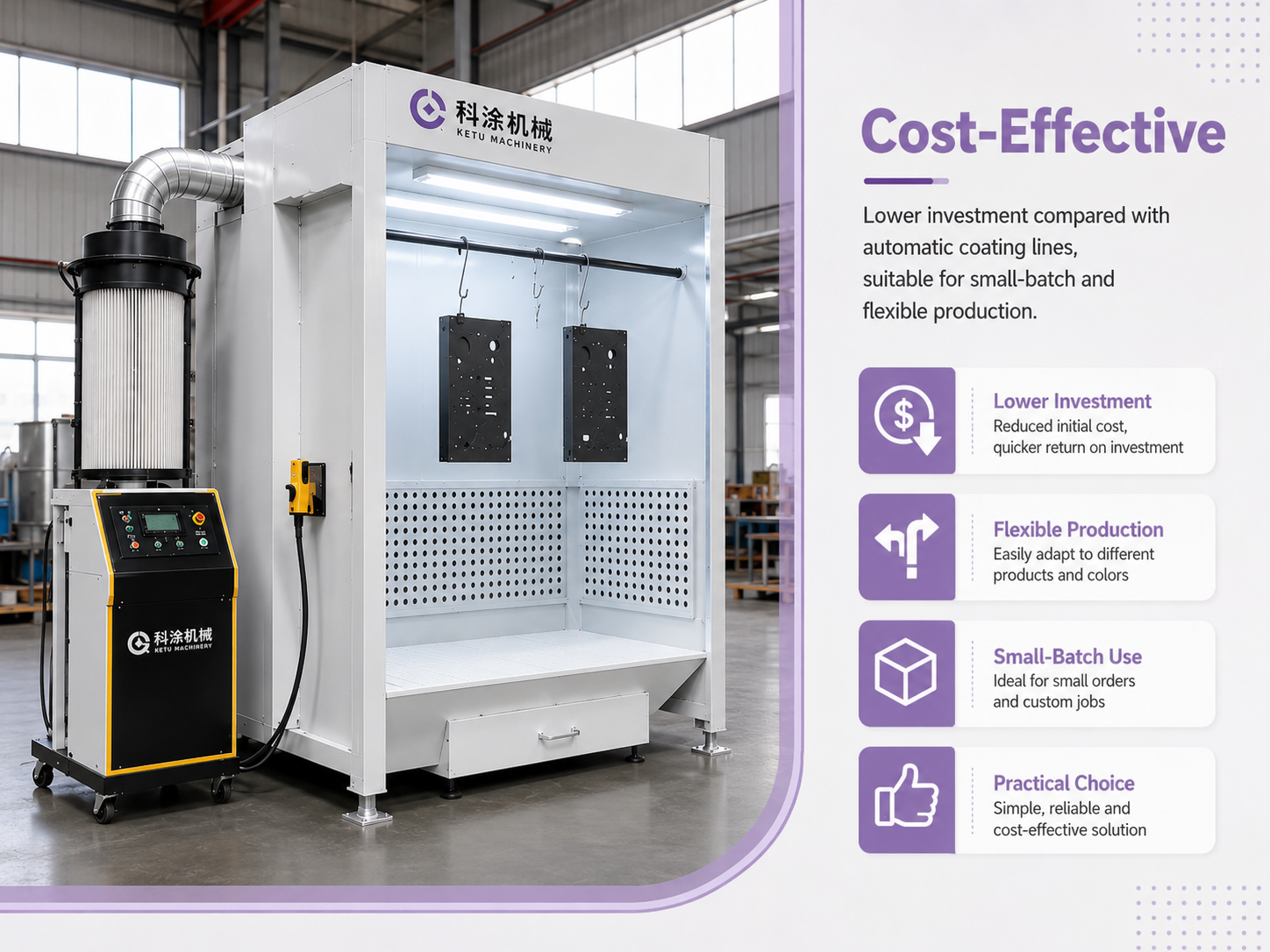

Cost-Effective
Lower investment compared with automatic coating lines, suitable for small-batch and flexible production.
Convenient Operation
Manual spray gun control is intuitive and easy for operators to learn after basic training.

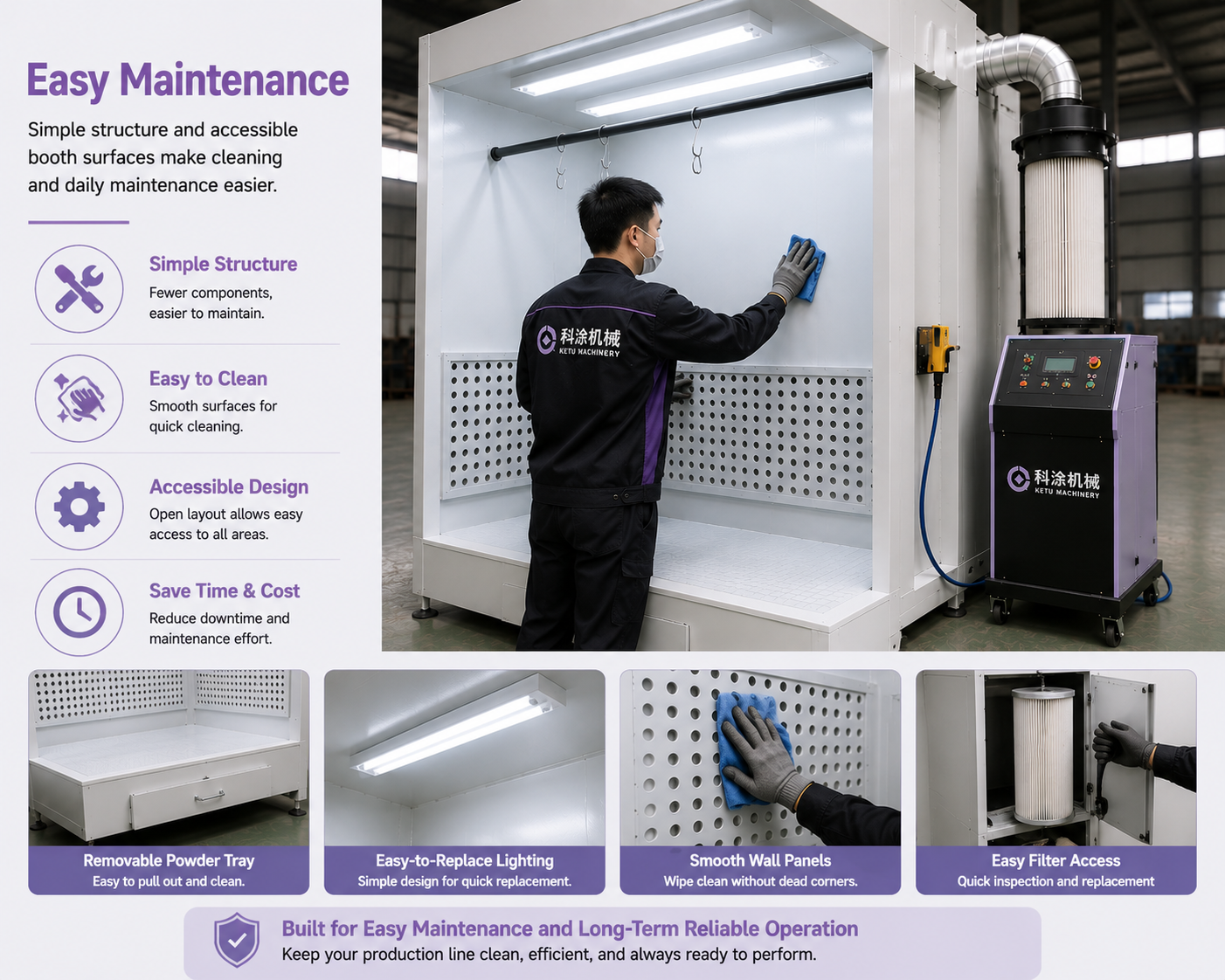

Easy Maintenance
Simple structure and accessible booth surfaces make cleaning and daily maintenance easier.

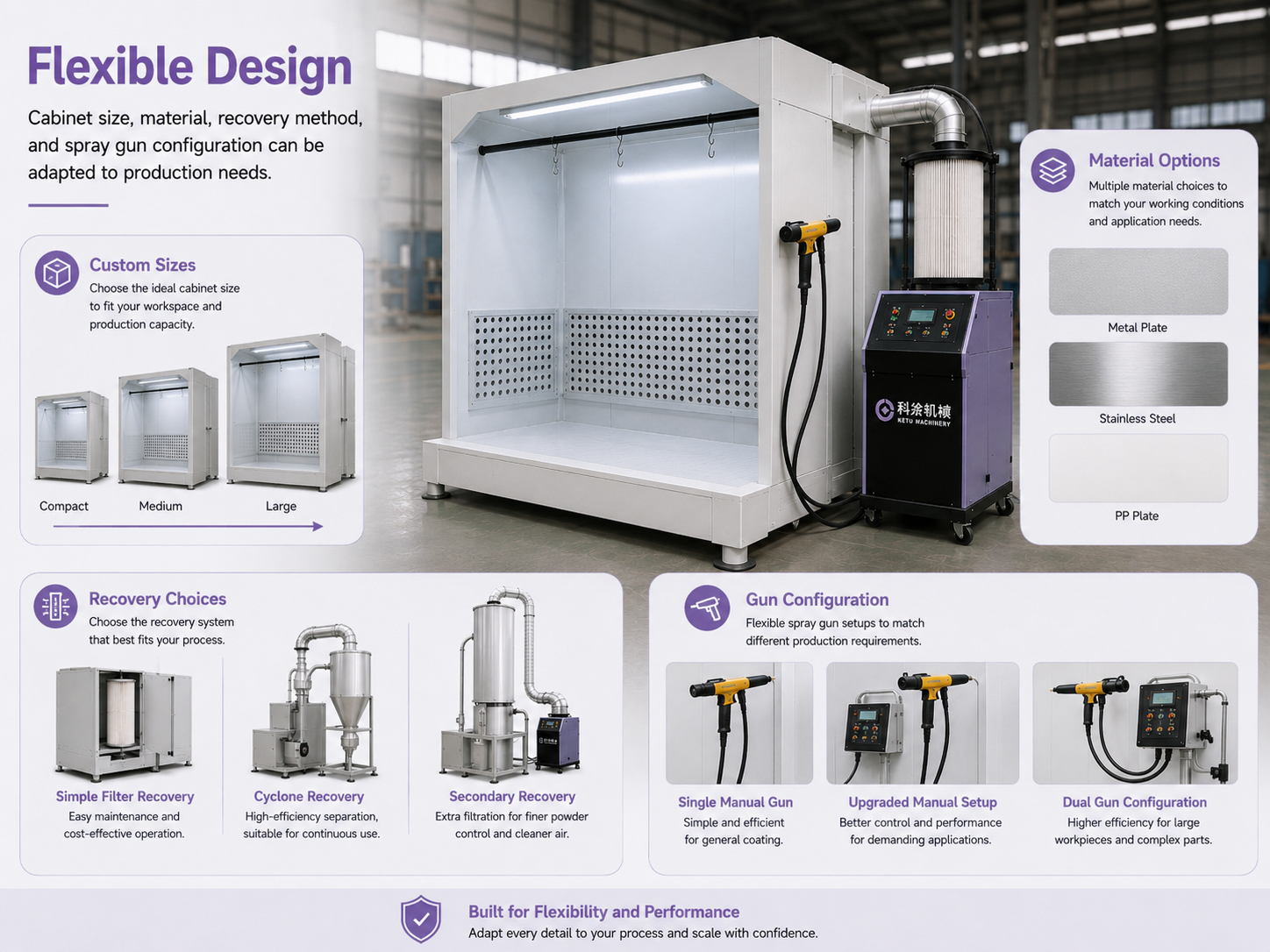

Flexible Design
Cabinet size, material, recovery method, and spray gun configuration can be adapted to production needs.

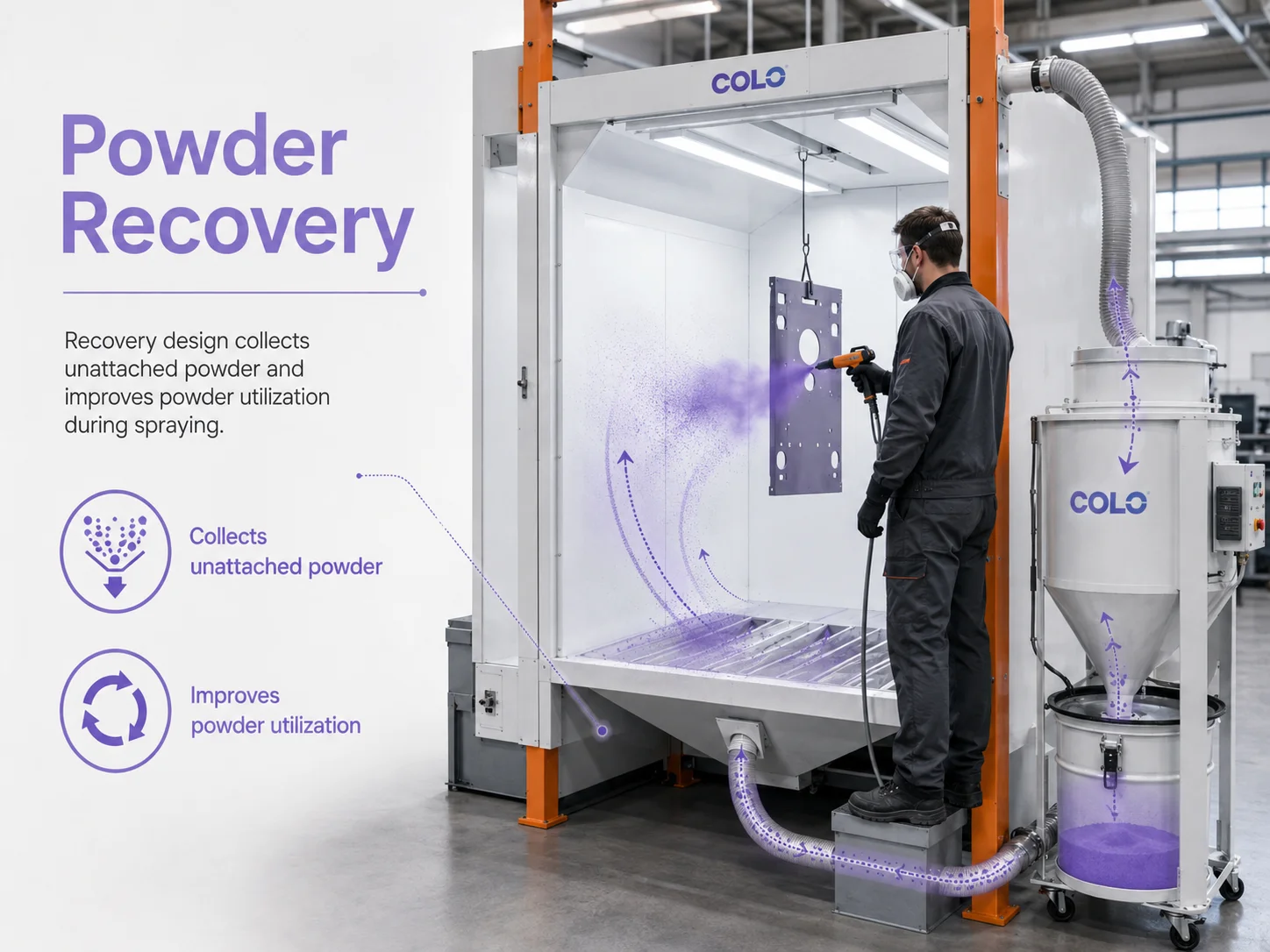

Powder Recovery
Recovery design collects unattached powder and improves powder utilization during spraying.

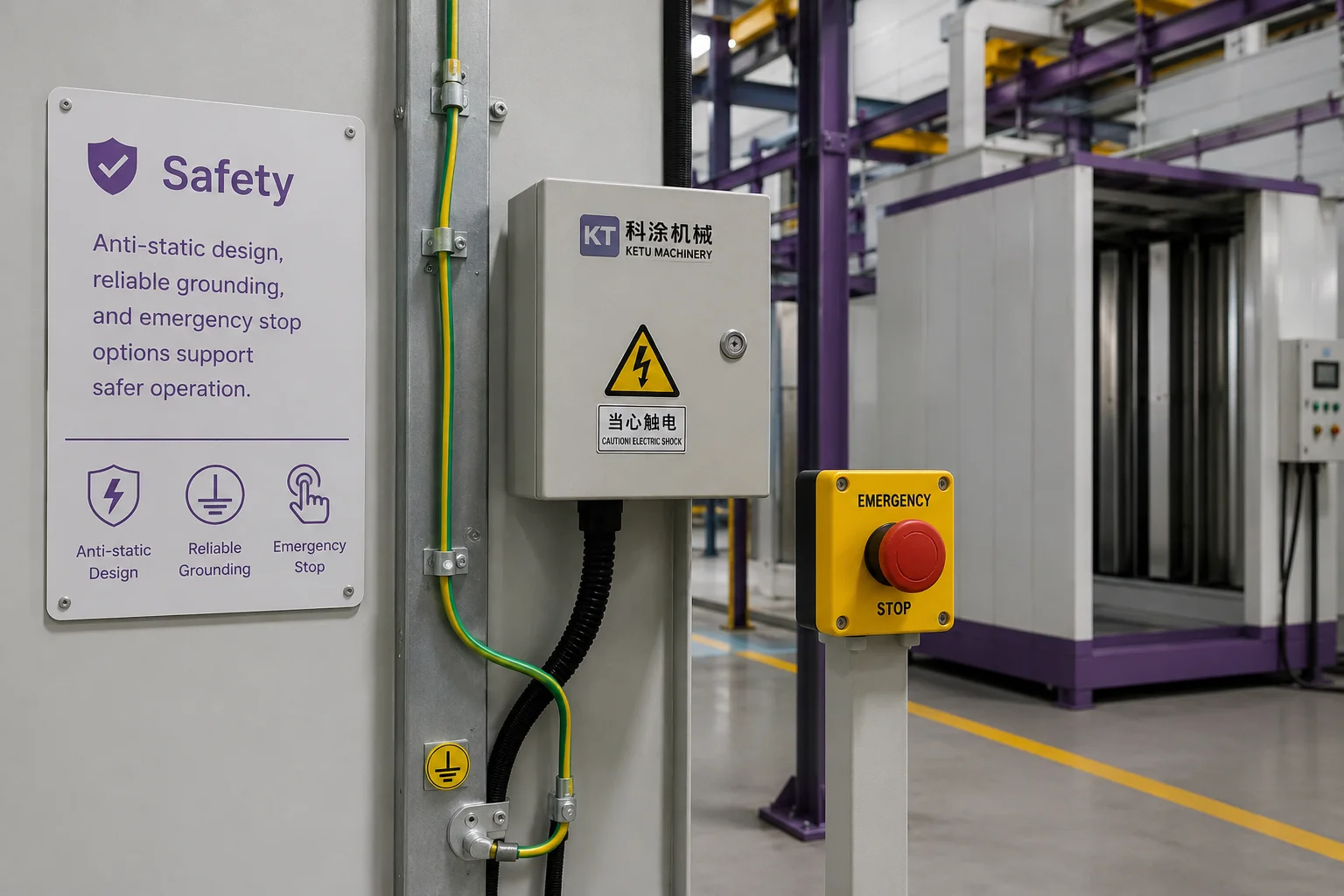

Safety
Anti-static design, reliable grounding, and emergency stop options support safer operation.

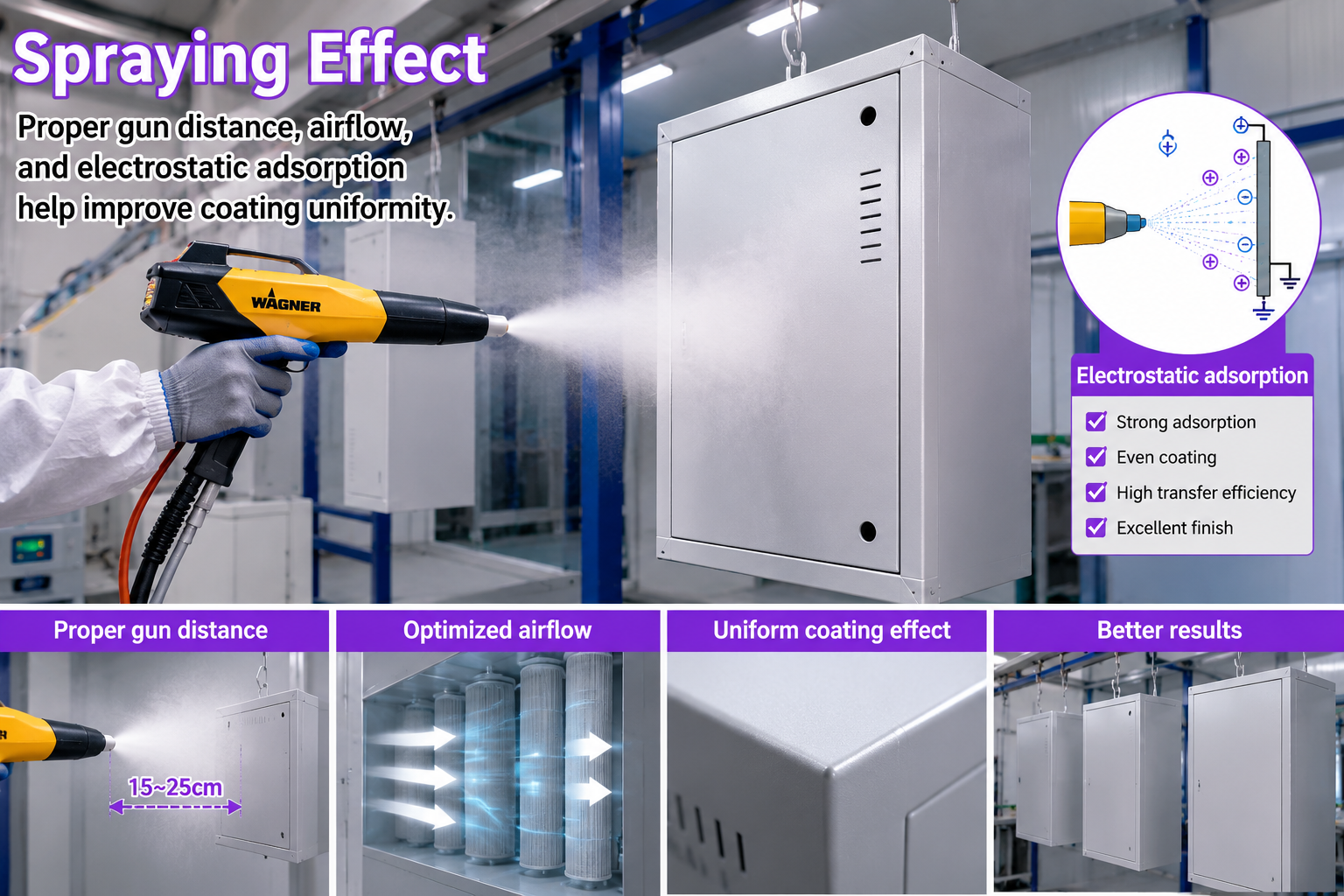

Spraying Effect
Proper gun distance, airflow, and electrostatic adsorption help improve coating uniformity.
Energy Saving
Compact design and powder recovery help reduce unnecessary energy and material consumption.

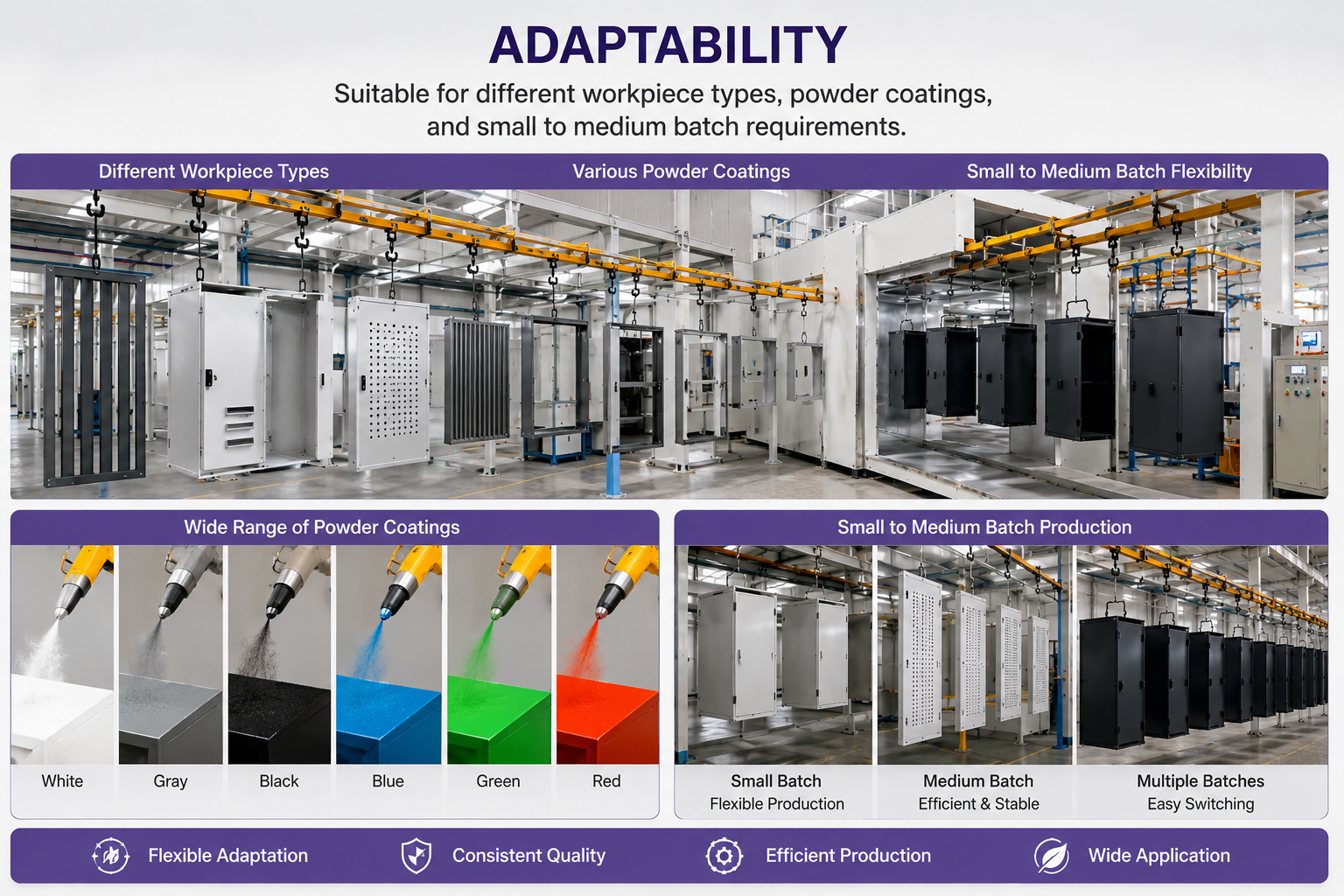

Adaptability
Suitable for different workpiece types, powder coatings, and small to medium batch requirements.
Structural Features and Working Principle
Understanding the structure, manual spraying method, electrostatic adsorption, and recovery system helps buyers evaluate whether the cabinet matches their process.
Structural Features
The independent powder spraying cabinet is compact, easy to install, and suitable for workshops with limited space. It can be built with metal plates, stainless steel plates, or PP plates based on durability, cleaning, corrosion resistance, and customer usage requirements.
Working Principle
- 1Powder spraying: The operator sprays powder coating onto the workpiece surface through a manual spray gun.
- 2Electrostatic adsorption: The electrostatic generator charges powder particles, helping powder attach evenly to the grounded workpiece.
- 3Recovery system: Unattached powder is collected and recycled to reduce powder waste and improve utilization.
- 4Manual operation: The operator controls spray gun movement, distance, angle, and speed according to the workpiece shape.
- 5Cleaning design: The booth should be easy to clean so residual powder does not affect future spraying quality.
- 6Process matching: The sprayed workpiece still needs subsequent baking and curing treatment to form a durable coating film.
Standard Operation Method for Independent Powder Spraying Cabinet
A clear operating method helps improve powder spraying uniformity, reduce waste, and protect operators during manual powder coating work.
Step 1: Preparation
Make sure the powder spray cabinet is clean and free of dust or impurities. Operators should wear necessary protective equipment such as dust masks, glasses, and gloves.
Step 2: Powder Coating Preparation
Pour the powder coating into the powder barrel of the spray gun. Adjust powder fluidity as needed. Vibration or stirring may be required to loosen the powder.
Step 3: Equipment Adjustment
Adjust the spray gun air pressure, usually between 0.3 and 0.4 MPa depending on workpiece size and powder type. Set the spray distance between the gun and workpiece, generally 150 to 300 mm.
Step 4: Coating Operation
Place the workpiece in the working area of the cabinet. Turn on the cabinet and spray gun. Move the gun evenly to avoid overlap, missing coating, or powder accumulation. Maintain proper distance and angle during spraying.
Step 5: End of Operation
After spraying, turn off the spray gun and powder cabinet. Let the workpiece level naturally in the cabinet for a few minutes, then remove it for subsequent baking and curing treatment.
Step 6: Cleaning and Maintenance
After use, clean powder residue inside the cabinet. Regularly check the spray gun and powder supply condition to ensure that the equipment is working properly.
Independent Powder Spraying Cabinet Reference Configuration
Exact cabinet size, material, recovery system, airflow, spray gun, and electrical control should be customized according to workpiece size and production requirement.
Custom Cabinet Layout
Send workpiece size, product photos, powder type, expected output, workshop space, and material preference. A customized independent cabinet layout can be prepared for quotation.
| Parameter | Reference Specification |
|---|---|
| Equipment Type | Independent powder spraying cabinet / manual electrostatic powder coating booth |
| Application | Small-batch metal parts, hardware, sample coating, repair coating, custom metal products |
| Cabinet Structure | Compact independent cabinet design for limited workshop space |
| Material Options | Metal plate, stainless steel plate, PP plate, or customized material structure |
| Spray Method | Manual electrostatic powder spray gun operation |
| Typical Spray Pressure | Usually 0.3 to 0.4 MPa, adjusted according to workpiece size and powder type |
| Typical Spray Distance | Generally 150 to 300 mm between spray gun and workpiece |
| Recovery System | Simple powder recovery system for collecting unattached powder and reducing waste |
| Safety Design | Grounding, anti-static design, emergency stop, ventilation, and operator protection options |
| Customization | Cabinet size, material, fan capacity, filter type, spray gun, powder barrel, and recovery system can be customized |
The Complete Purchasing Guide for Independent Powder Spraying Cabinets
Buying an independent powder spraying cabinet should not be based only on price. A good decision should evaluate cabinet size, workpiece fit, spray uniformity, recovery system, material, safety, powder adaptability, maintenance, and long-term operating cost.
This guide helps buyers compare key technical factors before requesting a quotation or confirming a manual powder coating cabinet layout.
Confirm Workpiece Size and Cabinet Capacity
The cabinet must fit your workpiece completely and still leave enough operating space for spray gun movement and airflow.
- Maximum workpiece length, width, and height
- Part weight and loading method
- Operator movement and spray gun access
- Future product size expansion possibility

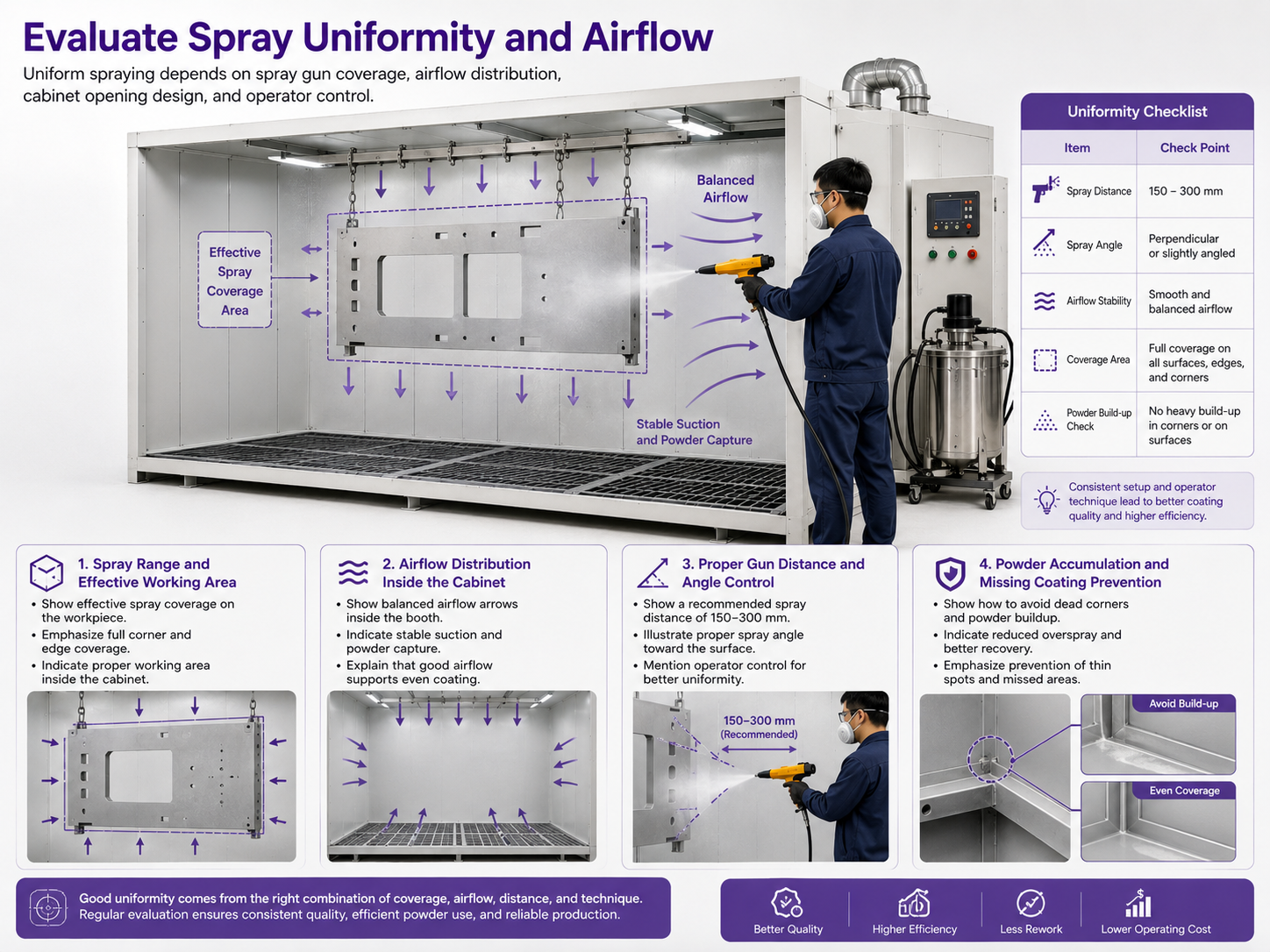

Evaluate Spray Uniformity and Airflow
Uniform spraying depends on spray gun coverage, airflow distribution, cabinet opening design, and operator control.
- Spray range and effective working area
- Airflow distribution inside the cabinet
- Proper gun distance and angle control
- Powder accumulation and missing coating prevention
Choose the Right Cabinet Material
Material selection affects durability, cleaning convenience, corrosion resistance, and price. Common options include metal plates, stainless steel plates, and PP plates.
- Metal plate for cost-effective standard use
- Stainless steel for durability and cleaning
- PP plate for certain corrosion-resistance needs
- Surface finish and powder adhesion control

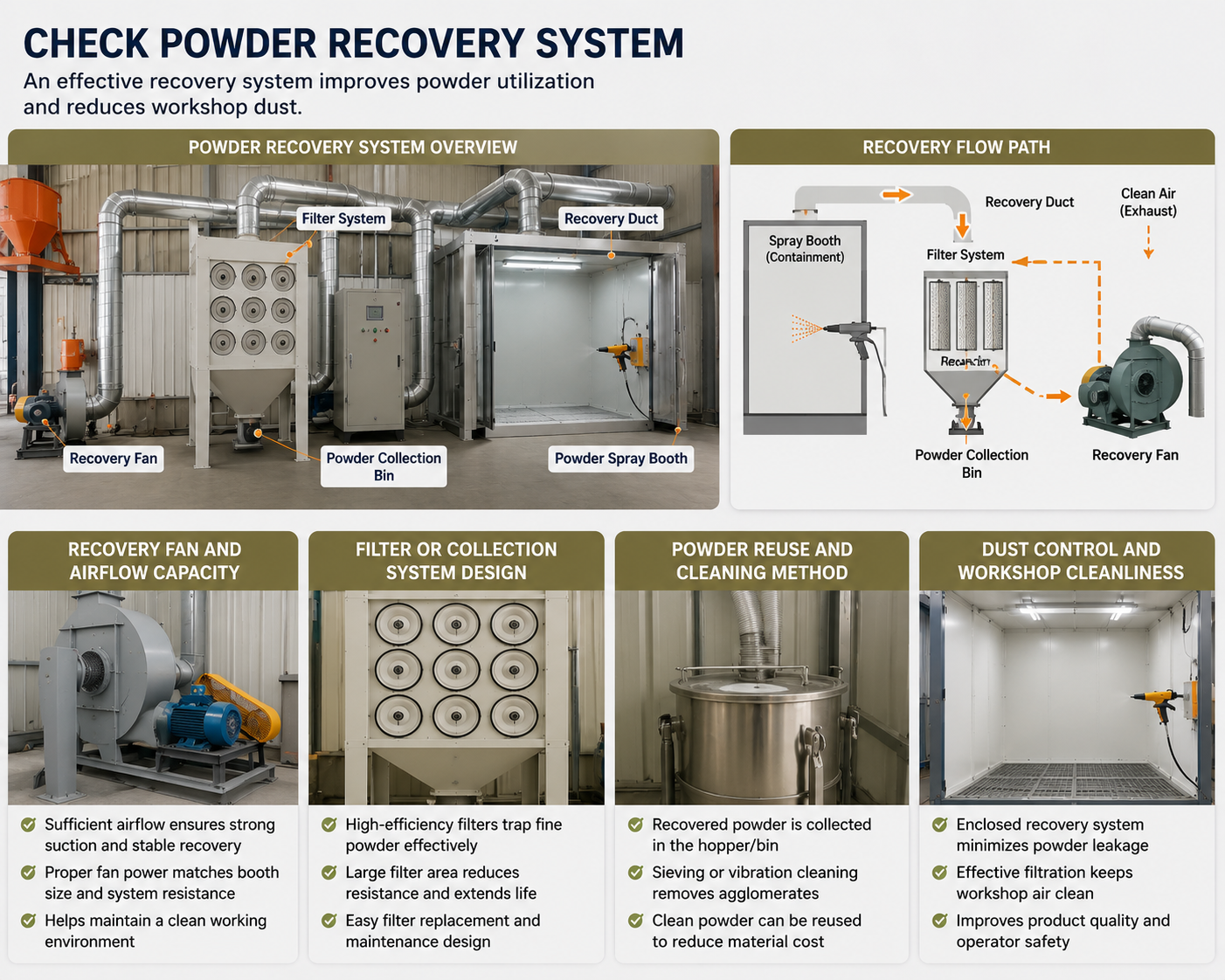

Check Powder Recovery System
An effective recovery system improves powder utilization and reduces workshop dust. Buyers should check filter structure, recovery path, and cleaning method.
- Recovery fan and airflow capacity
- Filter or collection system design
- Powder reuse and cleaning method
- Dust control and workshop cleanliness
Select Spray Gun and Powder Supply Configuration
The spray gun and powder supply directly affect coating quality. Choose proper electrostatic gun, powder barrel, pressure control, and powder fluidity method.
- Manual electrostatic spray gun quality
- Powder barrel capacity and fluidization
- Air pressure adjustment range
- Gun maintenance and spare parts availability
Review Safety and Environmental Requirements
Powder spraying requires grounding, anti-static design, ventilation, and operator protection. Local safety and environmental requirements should be checked before purchase.
- Reliable grounding and anti-static design
- Emergency stop option
- Ventilation and dust control
- Operator PPE and training requirements
Evaluate Cleaning and Maintenance Convenience
Easy cleaning reduces color contamination and keeps cabinet performance stable. Check whether powder residue can be cleaned quickly after use.
- Internal surface cleaning convenience
- Filter and recovery area access
- Spray gun and powder hose cleaning
- Daily maintenance time and spare parts
Compare Cost-Effectiveness and Supplier Support
Do not compare only purchase price. Also evaluate powder waste, maintenance, after-sales service, technical support, and operation training.
- Purchase cost and installation cost
- Powder recovery and waste reduction
- Maintenance and spare parts cost
- Supplier training and after-sales support
Quick Buyer Comparison Table
Use this table to evaluate whether an independent powder spraying cabinet matches your production requirement.
| Buying Factor | What to Check | Why It Matters |
|---|---|---|
| Cabinet Size | Internal dimensions and workpiece clearance | Ensures workpiece can be placed and sprayed completely |
| Spray Uniformity | Gun range, airflow, operator access, spray distance | Affects coating appearance and rework rate |
| Material Structure | Metal plate, stainless steel, PP plate, surface finish | Affects durability, cleaning, corrosion resistance, and cost |
| Recovery System | Fan capacity, filter, powder collection, cleaning | Reduces powder waste and keeps workshop cleaner |
| Safety Design | Grounding, anti-static, emergency stop, ventilation | Protects operators and reduces powder spraying risk |
| Supplier Support | Training, warranty, spare parts, technical support | Improves long-term use and maintenance reliability |
Need a purchasing recommendation for your powder spraying cabinet?
Send your workpiece photos, cabinet size requirement, powder type, daily output, workshop space, and budget range. We can help you select the right independent powder spraying cabinet configuration.
Get Configuration Advice
Frequently Asked Questions About Independent Powder Spraying Cabinet
These questions cover cabinet selection, working principle, manual operation, recovery system, safety, maintenance, and purchasing decisions.
What is an independent powder spraying cabinet?
An independent powder spraying cabinet is a compact manual powder coating booth used for spraying powder coating onto metal workpieces. It usually includes a cabinet body, manual electrostatic spray gun, working area, airflow or recovery system, and basic electrical control.
Who should choose this type of powder spraying cabinet?
It is suitable for small factories, repair coating workshops, sample rooms, hardware producers, custom metal part manufacturers, and buyers who need a low-investment powder coating solution without high automation.
How does the cabinet work?
The operator uses a manual electrostatic spray gun to apply charged powder particles to the grounded workpiece. Electrostatic adsorption helps the powder attach evenly. Unattached powder can be collected by the recovery system to reduce waste.
What materials can be used for the cabinet body?
Common options include metal plates, stainless steel plates, and PP plates. The best material depends on budget, cleaning requirements, corrosion resistance, powder type, and service environment.
What spray gun pressure is usually used?
A common reference range is 0.3 to 0.4 MPa, but the exact setting depends on powder type, workpiece size, desired coating thickness, and spray gun specification.
What is the recommended spray distance?
The spray gun is commonly kept about 150 to 300 mm from the workpiece. Operators should adjust the distance according to workpiece shape, powder behavior, and coating effect.
Does the cabinet include powder recovery?
Simple independent powder spraying cabinets can be equipped with a powder recovery system to collect unattached powder and reduce waste. The exact recovery structure should be selected according to powder type and production volume.
Can this cabinet replace a full automatic powder coating line?
No. It is mainly suitable for manual, small-batch, sample, repair, or flexible coating work. For high-volume continuous production, an automatic powder coating line or larger spray booth may be more suitable.
What should operators do before spraying?
Operators should clean the cabinet, check the powder and spray gun, wear dust masks, glasses, and gloves, adjust air pressure, confirm grounding, and set proper gun distance before starting work.
What happens after the workpiece is sprayed?
After spraying, the workpiece should be allowed to level naturally for a few minutes, then moved to the curing oven for baking and curing. The final coating film is formed during the curing process.
What maintenance is required?
Regular maintenance includes cleaning powder residue, checking the spray gun, inspecting powder supply, cleaning the recovery system, checking grounding, and confirming that airflow and electrical parts are working properly.
What should I check before final purchase?
Check cabinet capacity, spray uniformity, operation convenience, recovery system, safety features, powder adaptability, cleaning convenience, product quality, supplier service, budget, environmental standards, and technical training.
Still not sure which powder spraying cabinet is right?
Send product photos, coating capacity target, cabinet size requirement, powder type, and budget range. Our team can help compare independent cabinet, backpack booth, cyclone booth, and automatic powder coating line options.
Ask Our Coating Line ExpertRequest a Custom Independent Powder Spraying Cabinet Solution
Tell us your workpiece size, powder type, output target, and workshop layout. We will recommend a suitable cabinet configuration.
