High-Capacity Powder Coating System for Industrial Scale Production
Advanced electrostatic powder coating technology combined with industrial-grade cyclone collection system designed for manufacturers requiring maximum throughput, superior finish quality, and environmental compliance.
Why Large Cyclone Collector Systems Outperform Standard Dust Collection
The difference between adequate dust control and true environmental excellence lies in cyclone separator engineering and electrostatic spray precision.
Superior Dust Separation Through Centrifugal Technology
Our large cyclone collectors utilize dual-stage centrifugal separation technology to extract particulate matter from the airstream with exceptional efficiency. When dust-laden gas enters the cone-designed barrel body, the specialized inlet pipe geometry creates high-velocity rotational motion. Centrifugal force pushes heavier particles toward the barrel wall, where they slide gravitationally into the hopper collection chamber, while purified air discharges from the top outlet.
This design achieves 99.5% separation efficiency while maintaining consistent airflow dynamics across 8000-ton annual production volumes. Key benefits include near-zero powder loss during spray cycles, reduced material waste translating to lower per-unit coating costs, minimized environmental emissions, and extended spray booth lifespan due to cleaner operational conditions.
Explore Cyclone Technology
Uniform, High-Quality Coverage Through Electrostatic Particle Acceleration
Electrostatic powder spraying technology charges powder particles to create electromagnetic attraction between the coating material and grounded workpiece surfaces. Our spray systems accelerate charged powder particles toward the target at controlled velocities, ensuring even penetration into recesses, sharp edges, and complex geometries.
The result is smooth, uniform, and structurally sound coating thickness across 100% of the workpiece surface, eliminating under-coated zones, drips, and finish defects common with conventional spray methods. Typical coating thickness ranges from 80 to 150 microns with plus or minus 25 microns uniformity. Key benefits include consistent coating quality enabling 98%+ first-pass acceptance rates, professional finish appearance, superior adhesion and corrosion resistance, and flexible powder changeover supporting multi-color production without downtime.
Download Technical SpecificationsLarge Cyclone Collector Coating Line — Complete System Technical Profile
A complete large cyclone collector coating line is not only a spray booth. It is an integrated production system combining cyclone powder recovery, electrostatic spray control, conveyor movement, curing, air treatment, and PLC-based process monitoring. This redesigned technical profile presents the system in a visual, specification-led layout for engineers, purchasing teams, and production managers.
Cyclone Collector Performance Specifications

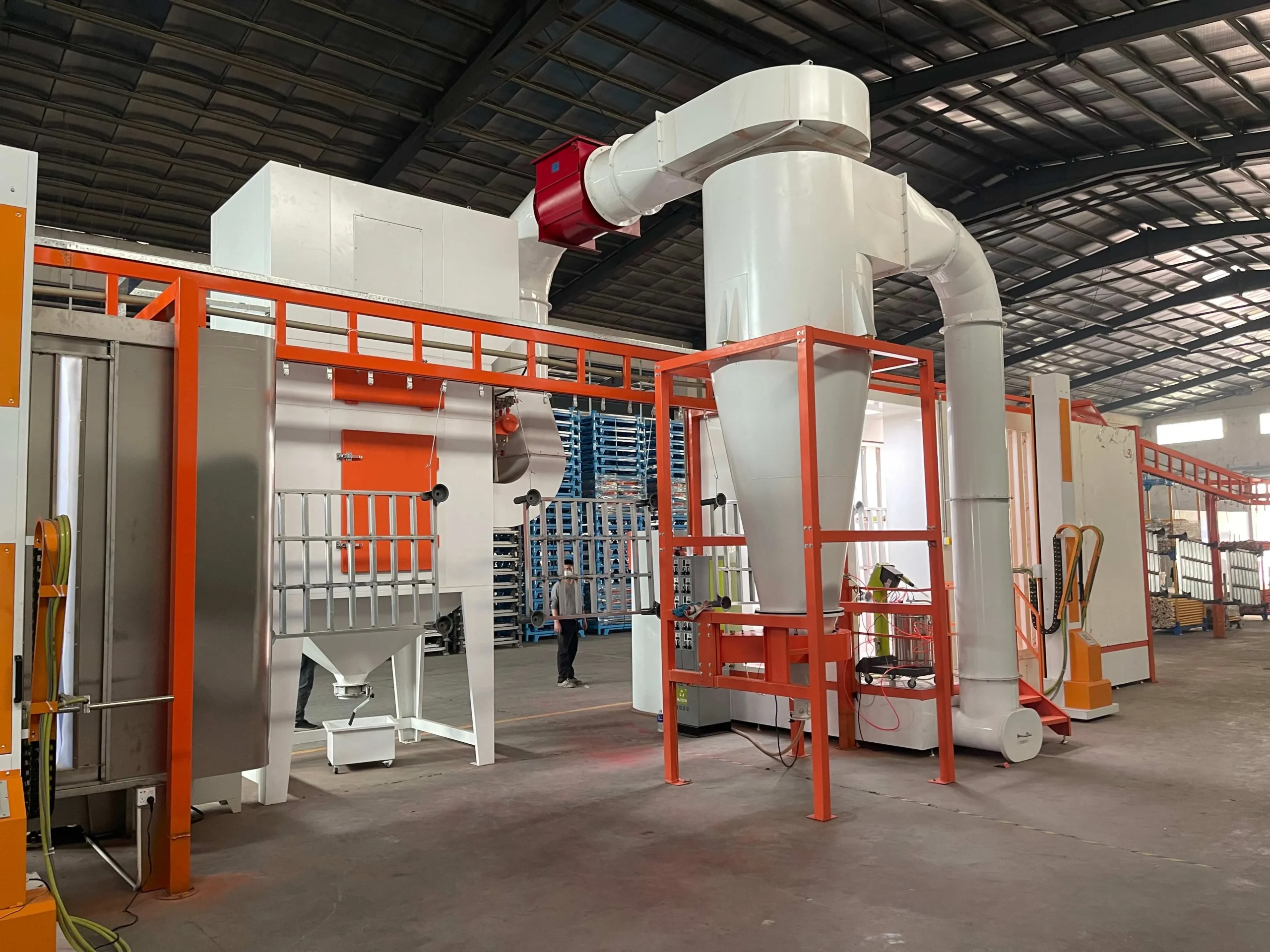

The cyclone collector is the core recovery module of the line. Dust-laden airflow enters the cone-designed chamber through a tangential inlet, creating high-speed rotational movement. Centrifugal force separates powder particles from the air stream, allowing recoverable powder to move into the hopper while cleaner air exits through the upper outlet.
This structure is suitable for high-volume coating operations where powder recovery, stable airflow, and low maintenance frequency directly affect operating cost.

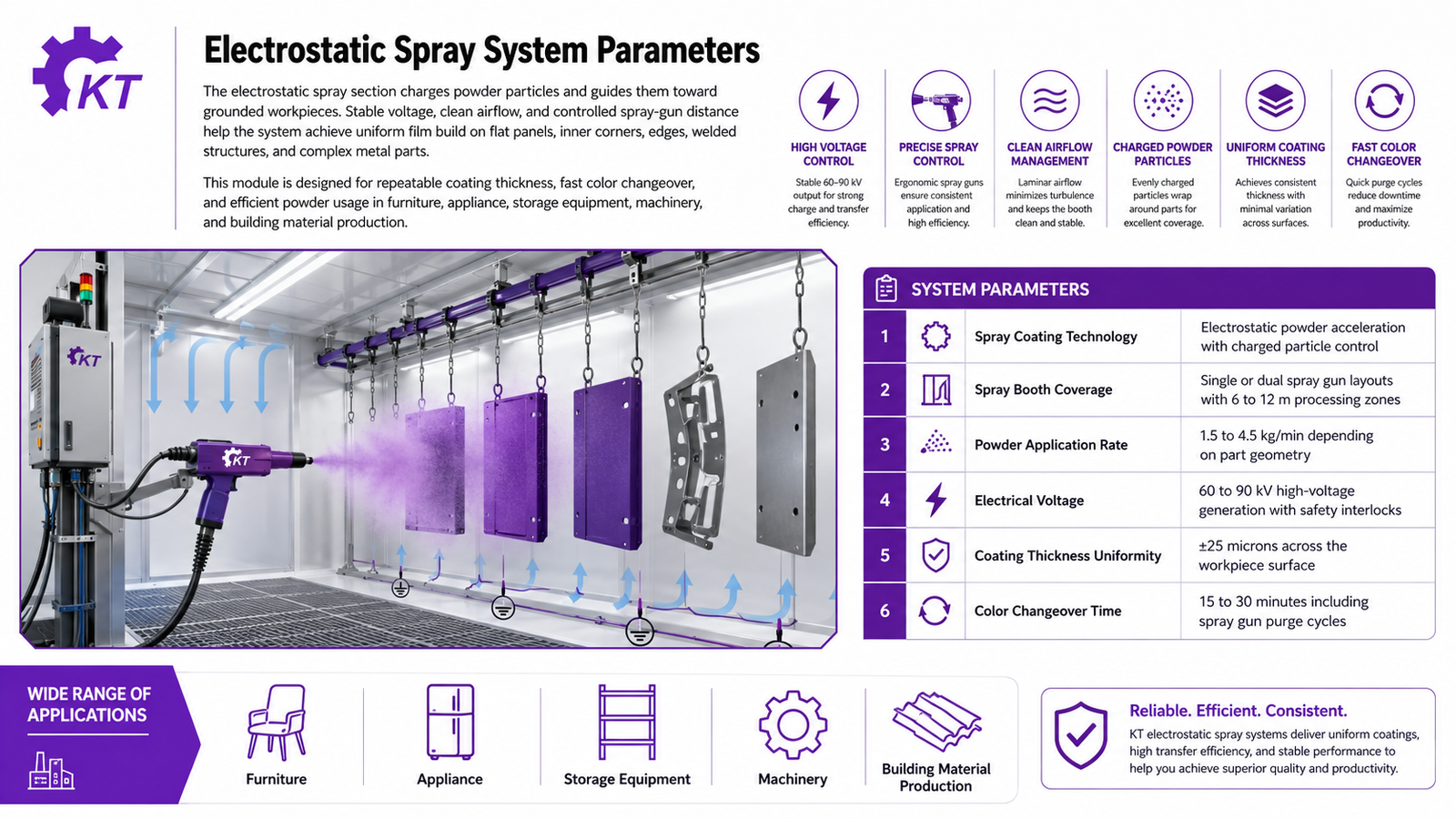

Electrostatic Spray System Parameters
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits
cURL Too many subrequests by single Worker invocation. To configure this limit, refer to https://developers.cloudflare.com/workers/wrangler/configuration/#limits.
Electrostatic High-Voltage Modules
Industrial-rated modules support reliable particle charging and stable spray performance during extended production campaigns.

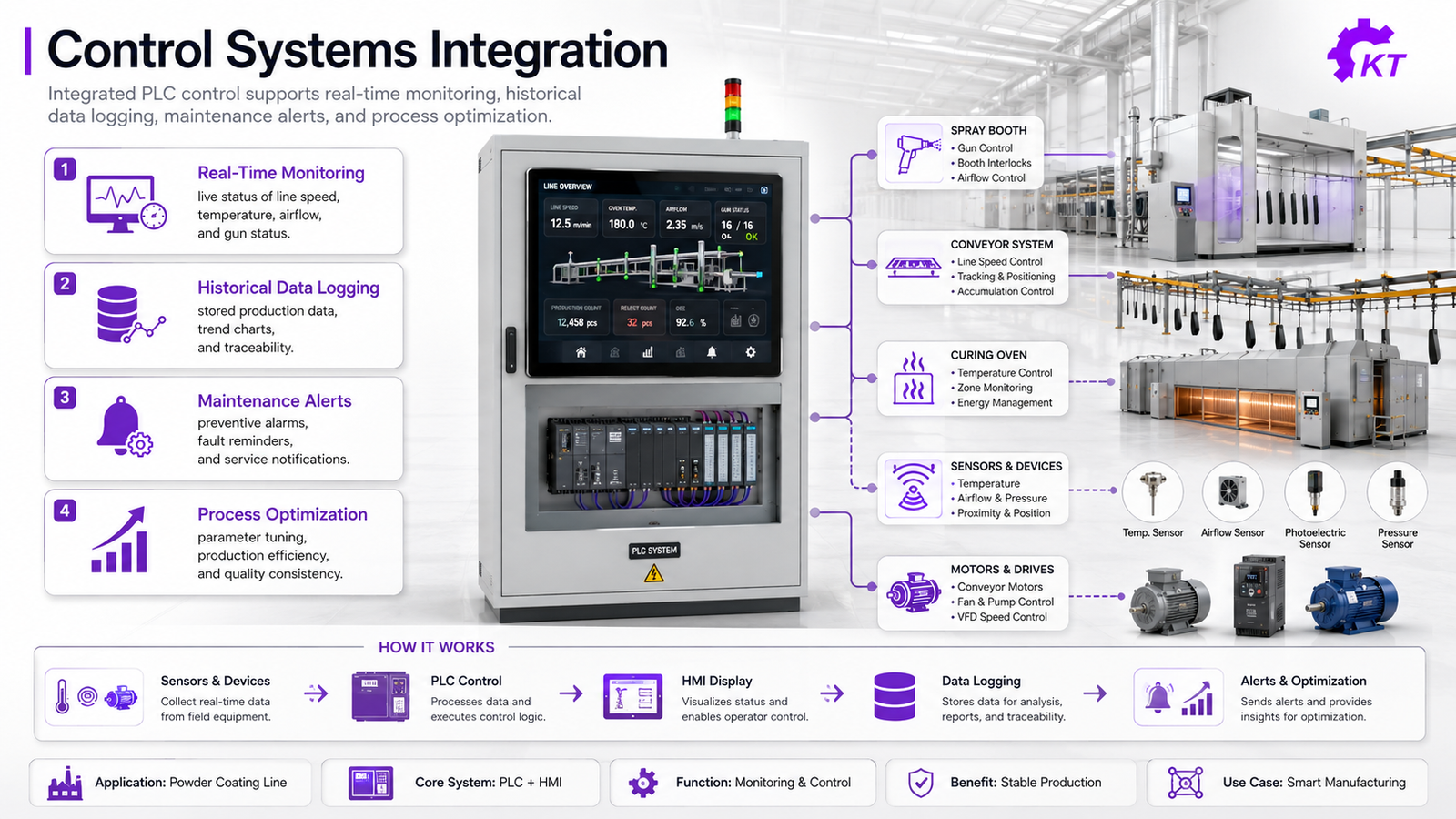

Control Systems Integration
Integrated PLC control supports real-time monitoring, historical data logging, maintenance alerts, and process optimization.
Material Sourcing Standards
Virgin raw materials and certified supplier partnerships improve equipment durability and support international compliance needs.

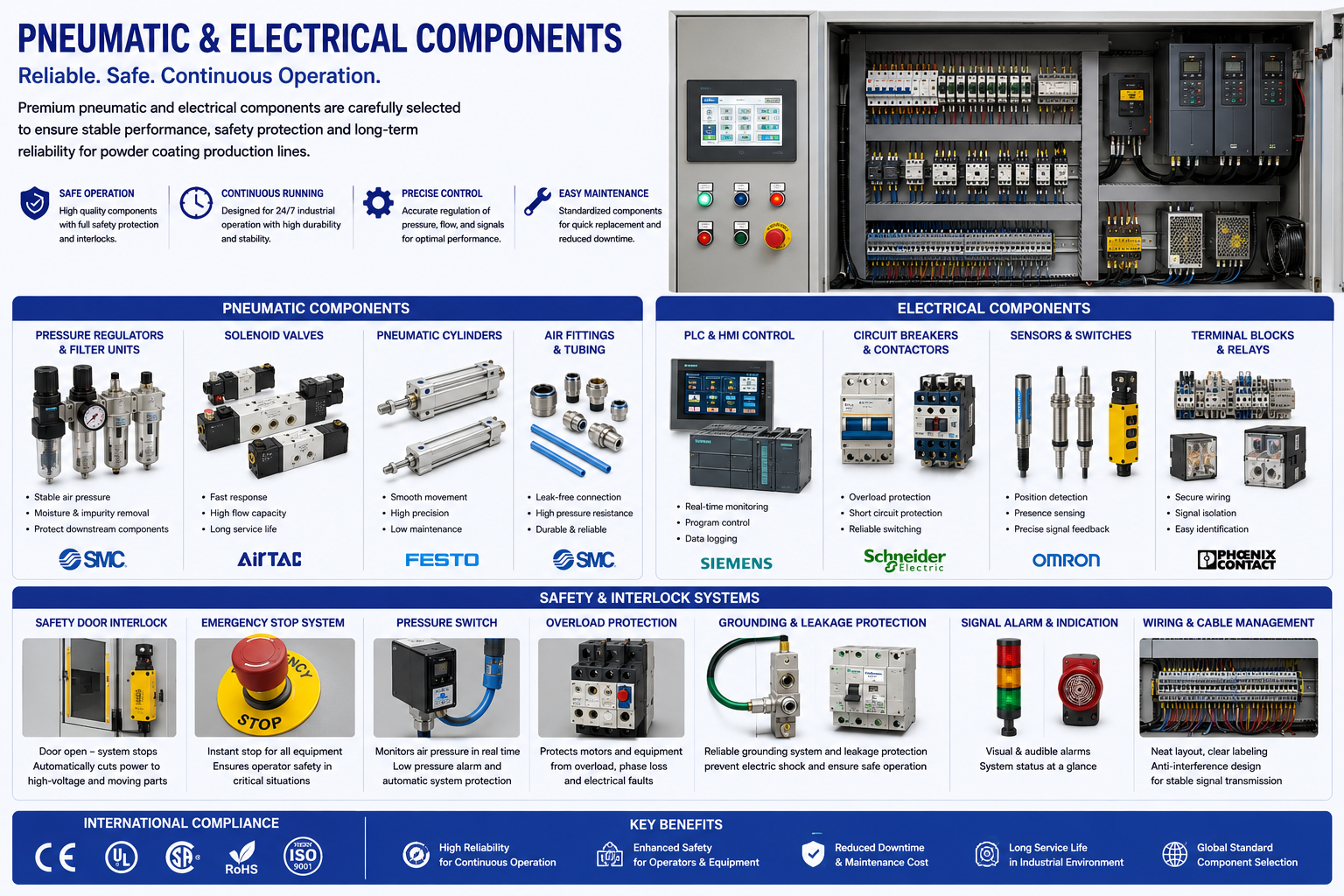

Pneumatic & Electrical Components
Pressure regulators, valves, interlocks, and electrical systems are selected for safe, continuous industrial operation.

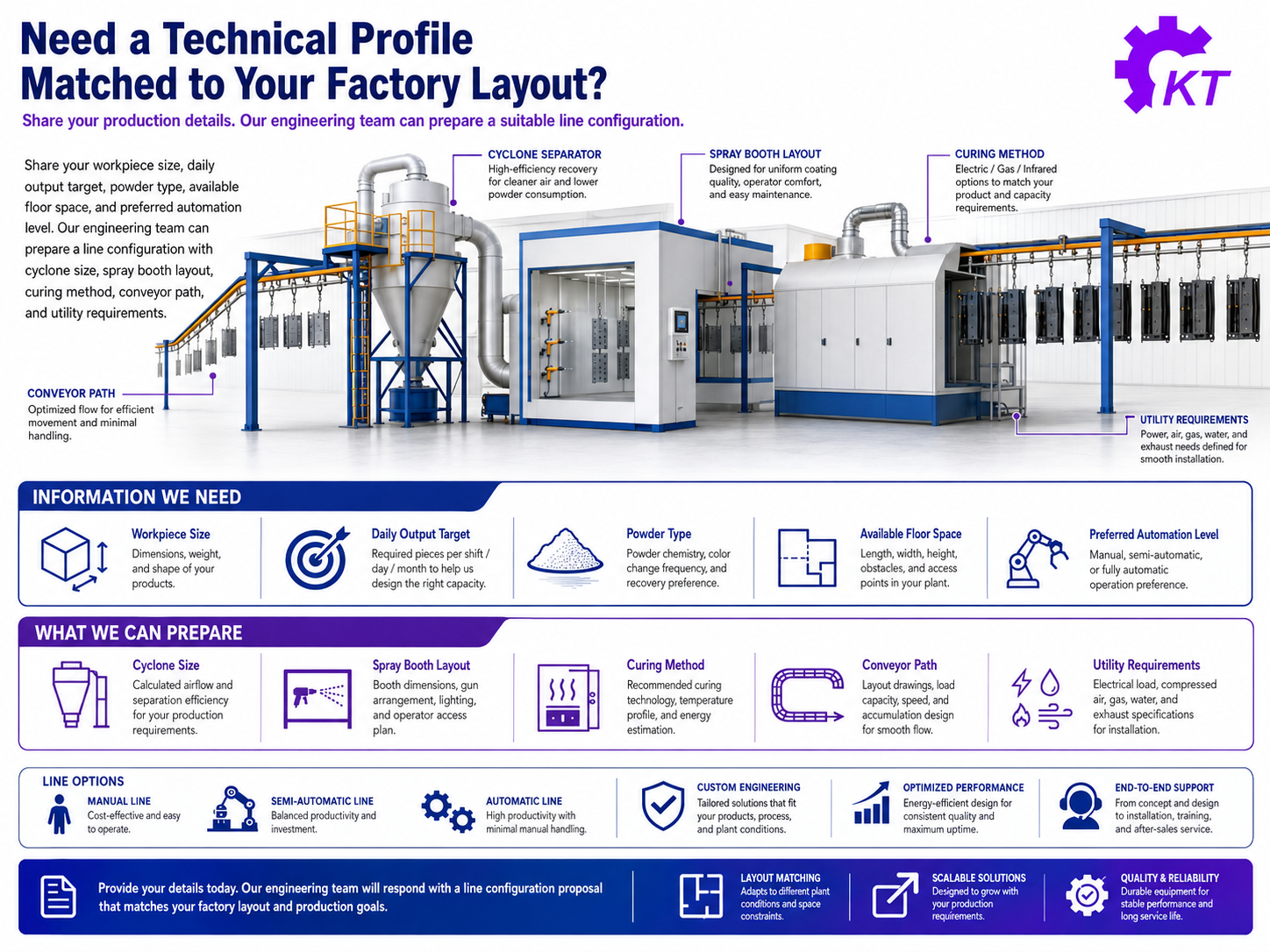

Need a technical profile matched to your factory layout?
Share your workpiece size, daily output target, powder type, available floor space, and preferred automation level. Our engineering team can prepare a line configuration with cyclone size, spray booth layout, curing method, conveyor path, and utility requirements.
Request Detailed Technical Datasheet
Complete Coating Process — From Raw Part to Finished Product
Understand the complete five-stage coating workflow and environmental compliance integration ensuring superior final product quality.
Stage 1: Pre-Treatment & Preparation
Metal parts enter the facility and undergo surface cleaning to remove oils, oxidation, and contaminants. Degreasing, chemical pickling, or mechanical abrasion procedures ensure optimal powder adhesion. Parts are racked onto conveyor fixtures designed for electrostatic spray pattern optimization. Environmental controls maintain humidity levels between 35% to 65% relative humidity, preventing moisture-related adhesion failures. Duration: 15 to 30 minutes depending on contamination level and part complexity.
Stage 2: Electrostatic Powder Spray Application
Charged powder particles are accelerated toward grounded workpiece surfaces, creating uniform, high-adhesion coating coverage. The spray system applies controlled powder thickness, typically 80 to 150 microns, with electrostatic technology achieving near-100% material utilization compared to 60% to 70% efficiency of conventional spray methods. Multi-gun configurations enable dual-sided coating or increased throughput. Duration: 3 to 8 minutes per part batch.
Stage 3: Cyclone Collection & Powder Recovery
Excess powder and atomized overspray are captured by the large cyclone collector system's powerful airflow. Centrifugal separation forces particulate matter toward the collection chamber hopper, achieving 99.5% powder recovery efficiency. Recirculation systems automatically return recovered powder to the spray booth storage system, minimizing material waste and reducing consumption costs by 25% to 40%. Duration: Continuous concurrent process during spray stage.
Stage 4: Curing & Cross-Linking
Coated parts transfer to electric or gas-fired curing ovens maintaining controlled temperature profiles between 180 to 230 degrees Celsius. Powder particles melt, flow, and cross-link through thermochemical polymerization, forming durable, glossy, or matte finish coatings with superior adhesion and corrosion resistance. Standard curing cycles require 10 to 25 minutes. Duration: 10 to 25 minutes.
Stage 5: Environmental Compliance & Air Treatment
Exhaust air from spray booths and curing ovens passes through secondary dust filtration and optional VOC treatment systems, ensuring compliance with local environmental regulations. Activated carbon filters, thermal oxidizers, or regenerative thermal oxidizers capture residual powder particles and volatile organic compounds. Treated air is safely discharged or recirculated. Duration: Continuous real-time process.
20+ Years of Proven Industrial Coating Expertise
Complete quality control through vertical integration and in-house manufacturing of all system components.

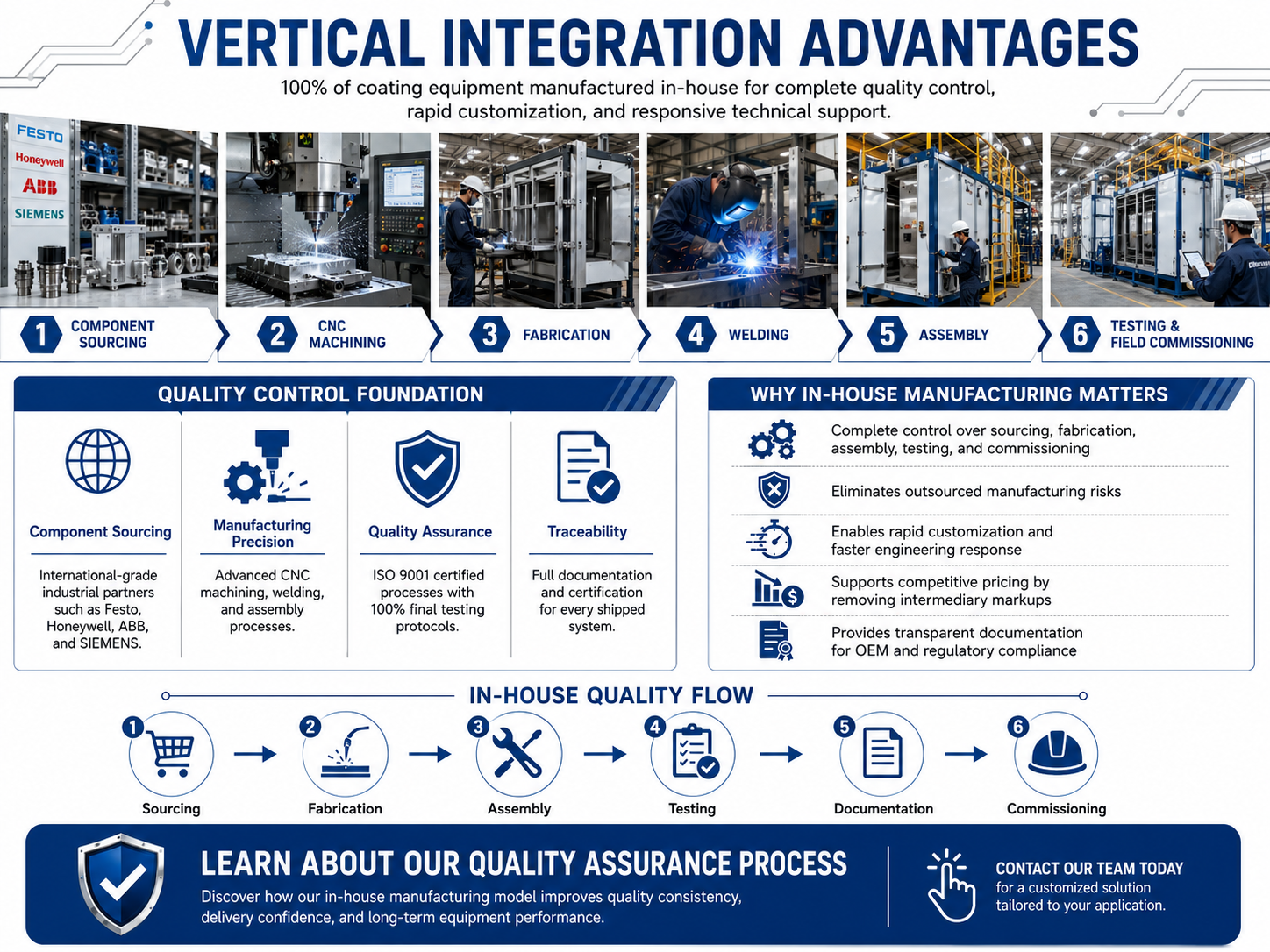

Vertical Integration Advantages
100% of coating equipment manufactured in-house, providing complete quality control over component sourcing, fabrication, assembly, testing, and field commissioning. This eliminates outsourced manufacturing risks while enabling rapid customization and responsive technical support.
Quality Control Foundation
- • Component Sourcing: International-grade industrial partners (Festo, Honeywell, ABB, SIEMENS)
- • Manufacturing Precision: Advanced CNC machining, welding, and assembly processes
- • Quality Assurance: ISO 9001 certified processes with 100% final testing protocols
- • Traceability: Full documentation and certification for every shipped system
Direct manufacturing relationships eliminate intermediary markups, enabling competitive pricing without compromising quality standards. Full traceability of all manufacturing processes, material certifications, and quality documentation provides transparent documentation for OEM and regulatory compliance.
